Contoured seat cushion comprised of honeycomb cores
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 8, 1997
Issued Date -
N/A
app pub date -
Jun 22, 1994
filing date -
Dec 4, 1989
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

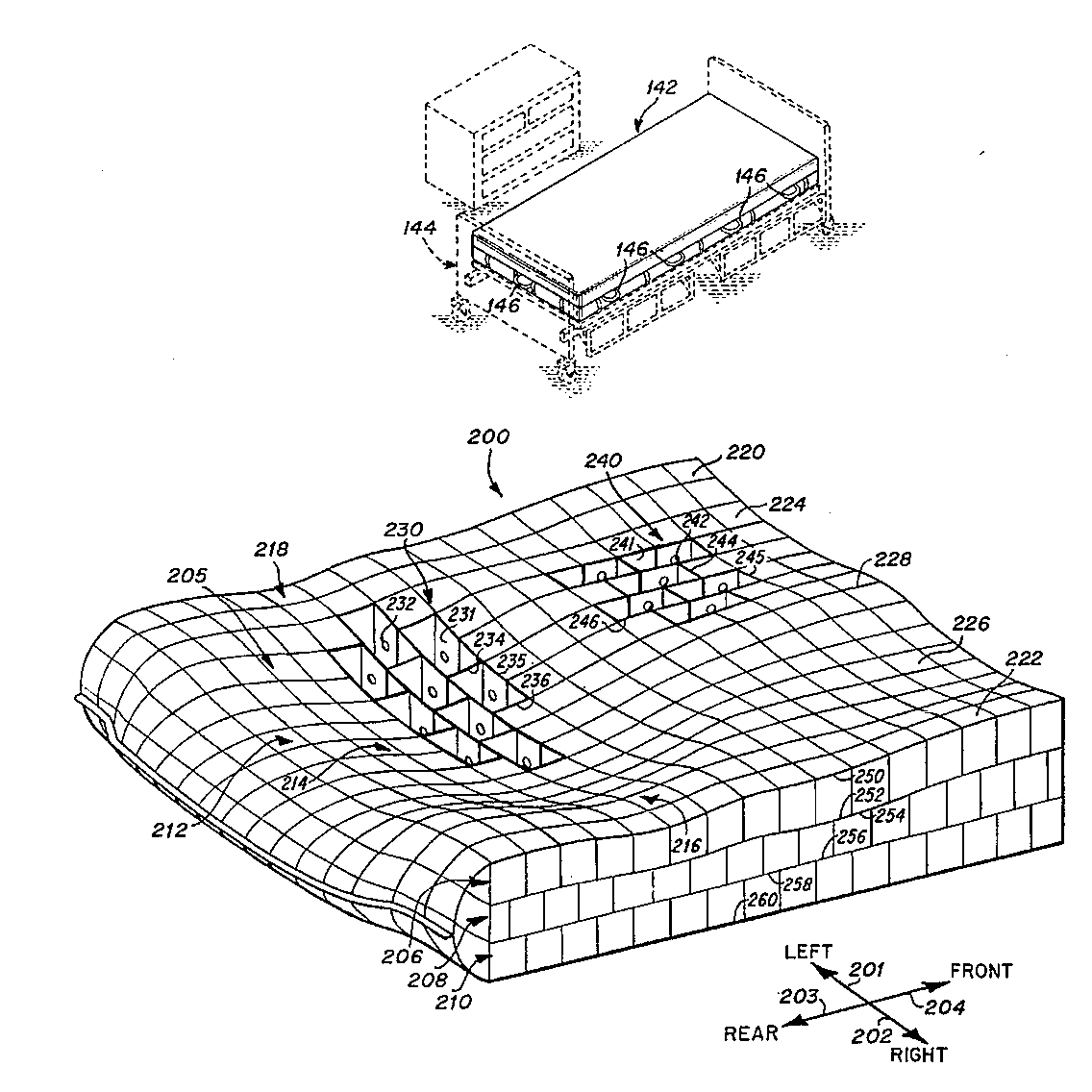

An improved anatomical support apparatus including an upper substrate engagable with a body surface of a user, and a support substrate attached to the upper substrate. The upper substrate having a first honeycomb core formed of undulated strips of resilient thermoplastic material, thermal compression bonded together to form cell walls defining a plurality of contiguous regularly shaped cells. Each of the cell walls having an upper extremity and a lower extremity. Each upper and lower extremity of the first core forming either a planar or a contoured surface. The upper substrate further includes means for maintaining the first core in its expanded configuration. A stack having at least one support substrate attached to either the upper or the lower extremity of the first core. A support substrate including a second honeycomb core formed of undulated strips of resilient thermoplastic material, thermal compression bonded together to form cell walls defining a plurality of contiguous regularly shaped cells. Each of the cell walls of the second core having an upper extremity and a lower extremity. Each upper and lower extremity of the second core forming either a contoured or a planar surface. In addition, the support substrate also includes means for maintaining the second core in its expanded configuration. The first and the second cores being anisotropically flexible and capable of stabilizing and spreading a load exerted thereupon by the user of the support apparatus. In a preferred embodiment the support apparatus comprises a seat cushion in which at least the upper substrate defines a contoured surface adapted to support prominences in the body of a seated user.
First Claim
Other Claims data not available
