Tension load cell apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 31, 1996
Issued Date -
N/A
app pub date -
Jul 3, 1995
filing date -
Mar 23, 1993
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

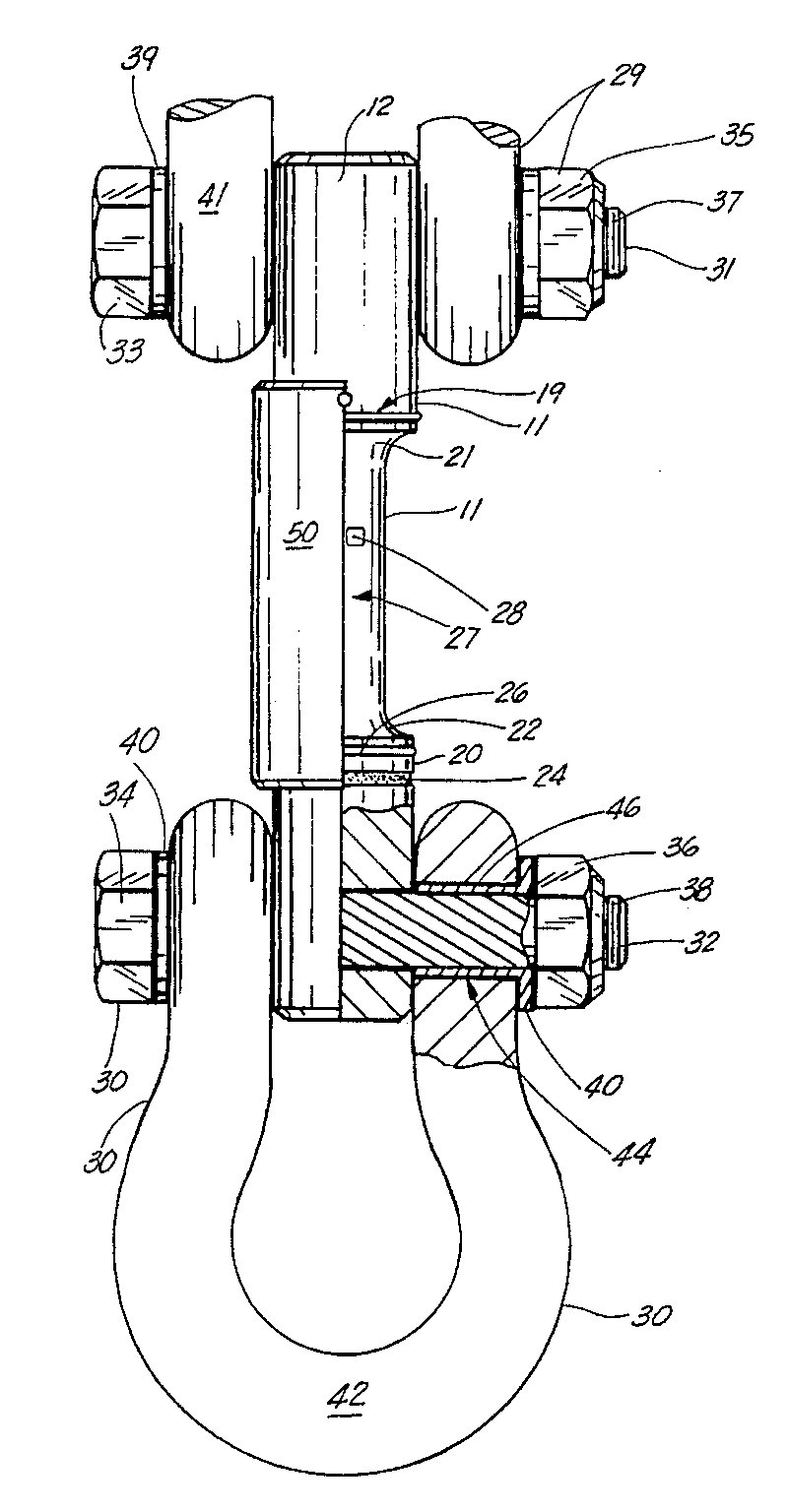

A tension load cell apparatus includes a structural member of metallic construction having a pair of large diameter end portions and a smaller diameter center portion. String gauges are carried on the center portion for generating a tension load value responsive to an elongation of the structural member when loaded. Each of the larger diameter portions has a transverse opening that is receptive of a lifting pin such as of a shackle. A casing covers the center portion but is attached only to the upper end portion so that load is not transferred to the casing during use. An indicator groove is provided on the bottom cylindrical portion of the structural member for indicating with a color for example when the load indicator structural member has stretched beyond its permissible limits. A method of the present invention involves the construction of a tension load cell having a pair of spaced apart lifting shackles and transverse shackle pins. As part of the method, the shackle is bored to accept a high strength pin for carrying greater load in a smaller space. Each shackle pin is interfaced with a bushing that is positioned around the pin and inside the shackle openings where the pin interfaces with the shackle.
