Centrifugal filter
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 22, 1996
Grant Date -
N/A
app pub date -
Feb 9, 1995
filing date -
Mar 14, 1994
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

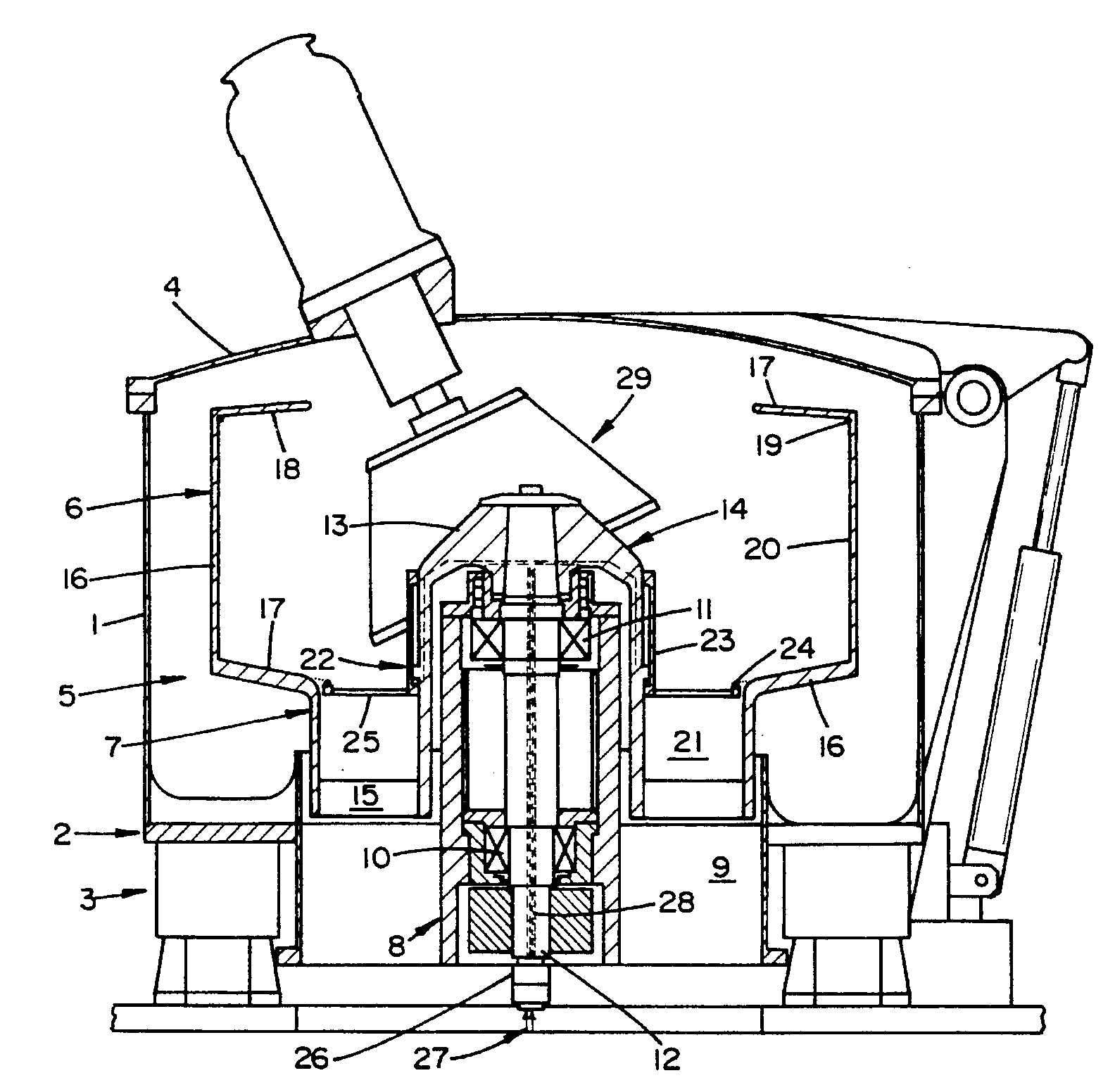

The centrifugal filter comprises a rotatable travelling basket (5) disposed within a collector chamber (1). A machine body (2) which can be supported on a support (3) carries a bearing arrangement (8) for the hub (14) of the travelling basket (5). In the travelling basket (5) which partially comprises holes is present a filter element (20) in such a way that during the rotation of the travelling basket the liquid to be filtered can flow out through the filter element (20) and through these holes. For removing the filtrate, retained on the filter element and consisting of solid particles, a lifting device (22) is present which can be moved back and forth. The travelling basket (5) comprises a travelling basket neck (7) connected with the travelling basket hub (14), which neck is provided with passage openings which communicate at least partially with further passage openings disposed in the bottom portion of the machine body (2).
First Claim
Other Claims data not available
