Active thermal control of ultrasound transducers
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 1, 1996
Grant Date -
N/A
app pub date -
Jun 13, 1994
filing date -
Jun 13, 1994
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

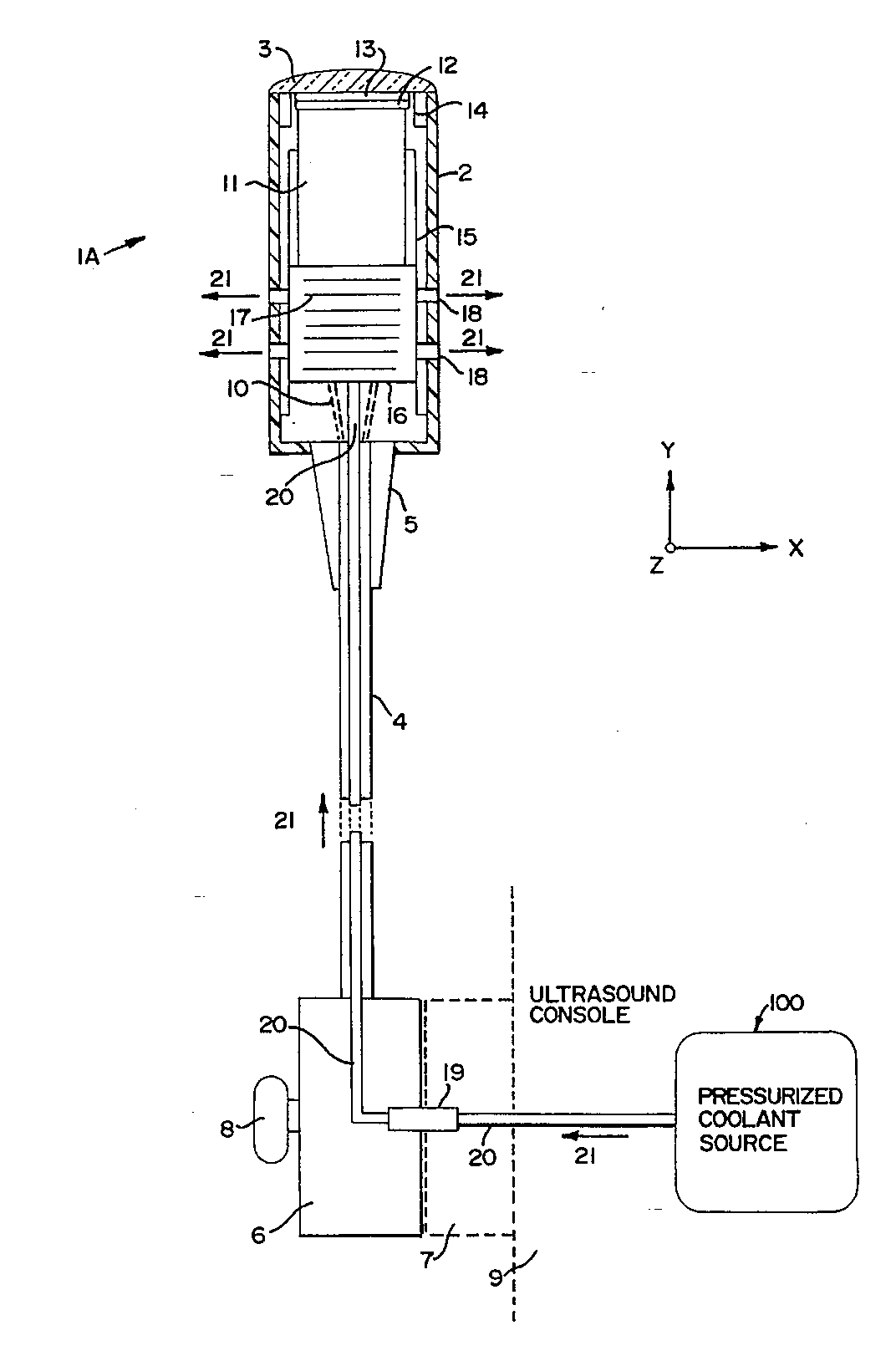

An ultrasound transducer assembly having a housing, a transducer array mounted in the housing, and active cooling mechanism positioned adjacent to the transducer array for actively removing heat generated by the array by transport of heat energy from the affected site. The active cooling mechanism may comprise a heat exchanger including a closed loop circulating coolant system circulating coolant, or a single-pass flowed coolant, passing through the heat exchanger, a heat pipe, a thermoelectric cooler, an evaporative/condenser system, and/or a phase change material. One or more heat exchangers may be used having gas or liquid coolants flowing therethrough. The heat exchangers and coolant pumps may be located in various components of the transducer assembly, including the array housing, the connector assemblies or the ultrasound console.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 489 Citation Count
- A61B Class
- 94.42 % this patent is cited more than
- 29 Age
