Anti-icing heat exchanger for aircraft air cycle performance enhancement
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 10, 1996
Grant Date -
N/A
app pub date -
Jan 11, 1995
filing date -
Jan 11, 1995
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|

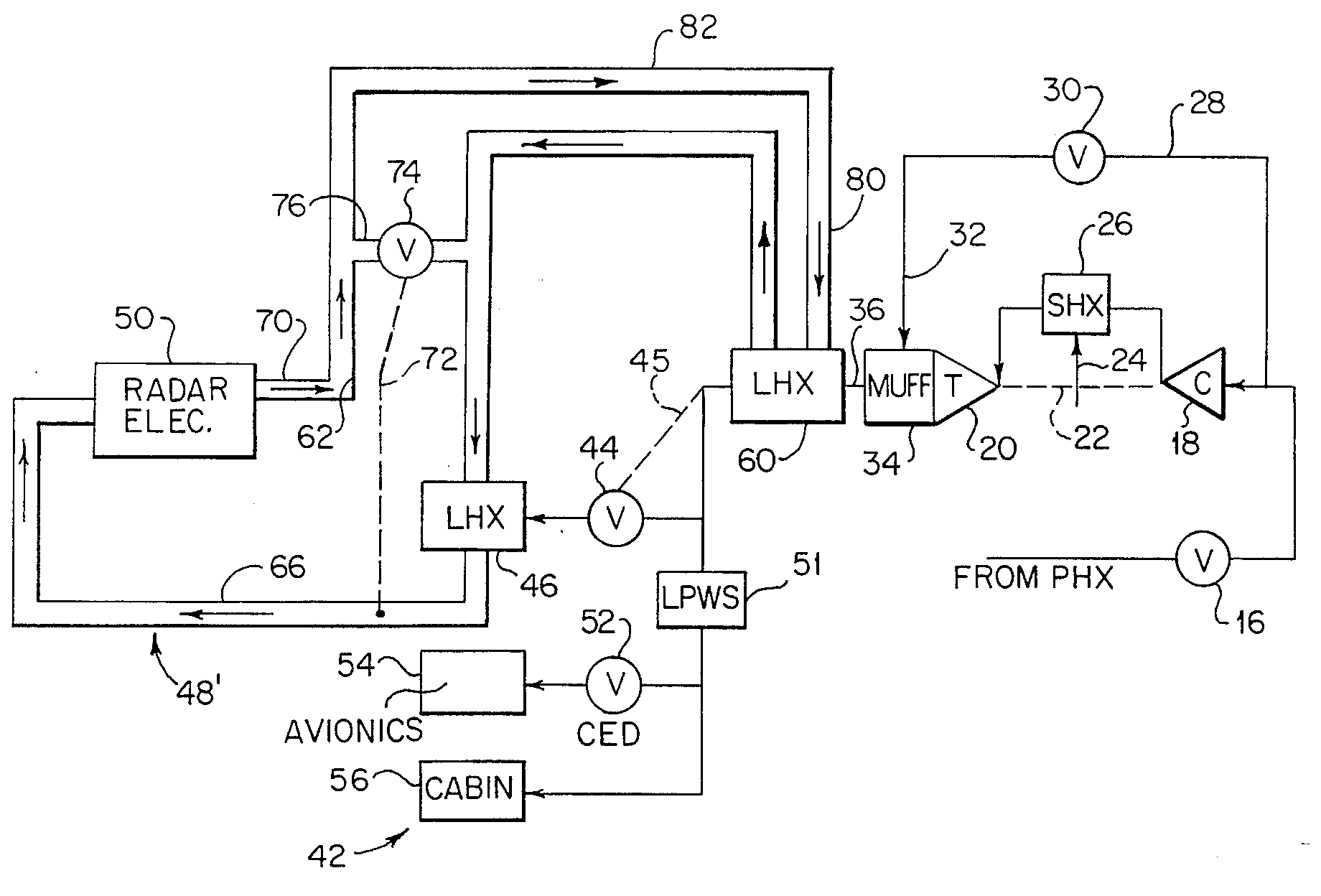

Abstract
Unconditioned, sub-freezing turbine exhaust air is employed to cool liquid coolant from radar electronics in an aircraft. This is accomplished by utilizing a liquid/air exchanger. However, in order to ensure that the air-cooled heat exchangers do not experience freezing of moisture droplets, sufficient heat is supplied to a liquid/air heat exchanger, located at the turbine exhaust, to maintain all surfaces (fins) above freezing, and also to heat the entire turbine exhaust air stream to a temperature above freezing as it exits that heat exchanger. Use of this anti-icing liquid/air heat exchanger, in conjunction with the proper air and liquid flow controls, will permit savings of total cooling air (i.e., engine bleed air) flow by negating the need for a hot air bypass to reheat turbine exhaust air.
First Claim
Other Claims data not available
