Optical scanner with automatic activation
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 27, 1996
Grant Date -
N/A
app pub date -
Jun 20, 1994
filing date -
Jun 20, 1994
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

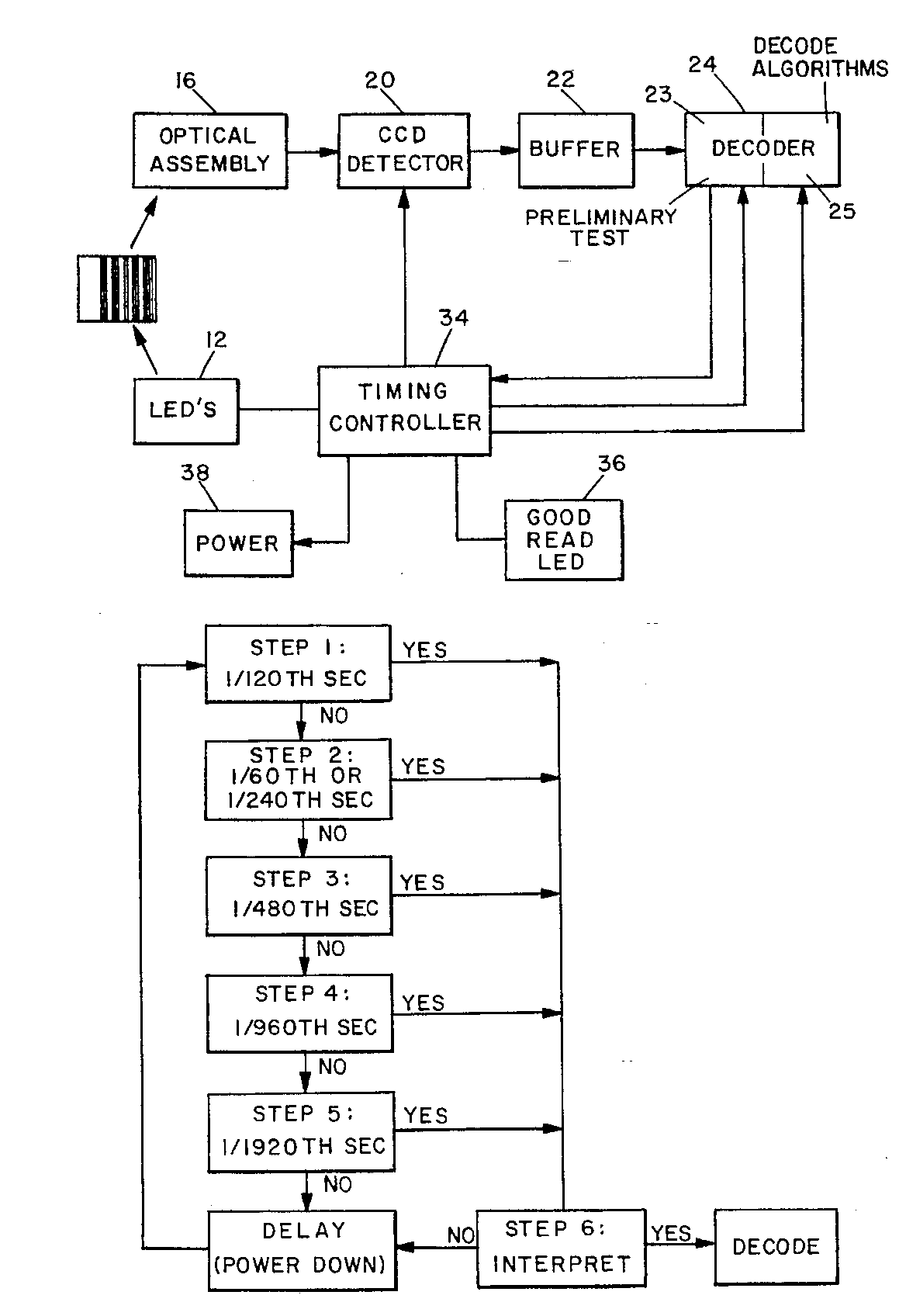

The optical scanner has an optical scanning head with LED light sources, focusing and receiving optics and a CCD detector array all mounted on a printed circuit board. This assembly, along with a storage buffer and a decoder is contained within a small housing which is attached on its lower side to a semi-glove which the user can wear on the back of his or her hand. The automatic sensing feature of the invention provides hands-free operation by automatically and periodically testing for the presence of a bar code in the scanner's field of view. If the presence of a bar code is detected, the scanner is placed in active mode. When the scanner is not in use, the scanner is powered down to conserve energy.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 267 Citation Count
- G06K Class
- 91.72 % this patent is cited more than
- 29 Age
