Active yoke hidden hinge digital micromirror device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 9, 1996
Grant Date -
N/A
app pub date -
Apr 18, 1995
filing date -
Apr 18, 1995
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

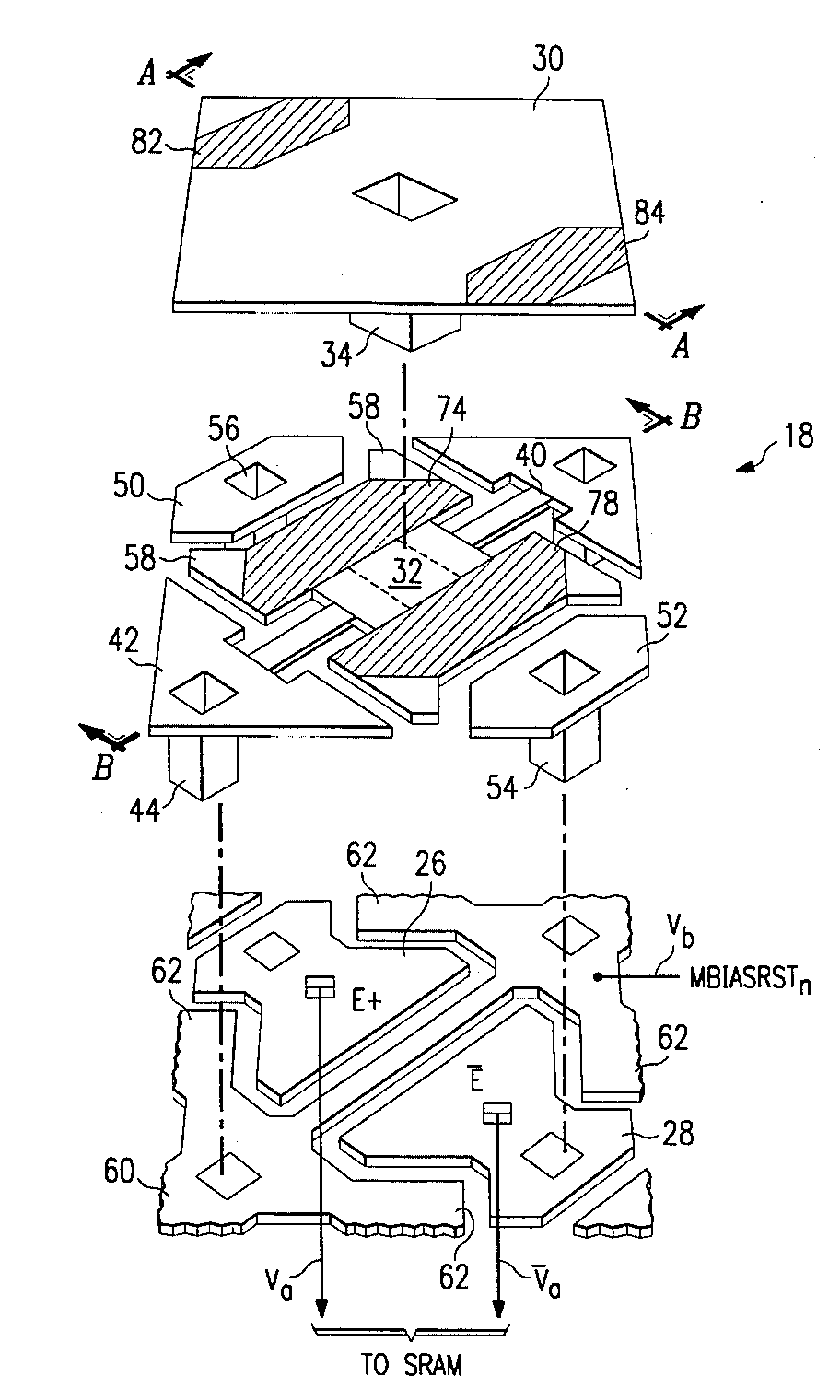

A spatial light modulator (10) of the DMD type having increased performance parameters. A pixel mirror (30) is supported by a yoke (32), whereby electrostatic attraction forces (70, 76, 80, 82) are generated between several structures. First, between the elevated mirror (30) and an elevated address electrode (50, 52). Second, between the yoke (32) and an underlying address electrode (26, 28). The pixel (30) achieves high address torque, high latching torques, high reset forces, and greater address margins over previous generation devices. The proximity of the yoke (32) over the substrate address electrodes (26, 28) realizes large attraction forces whereby the pixel is less susceptible to address upset, requires lower reset voltages and provides higher switching speeds.
