Nacelle and mounting arrangement for an aircraft engine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 11, 1996
Grant Date -
N/A
app pub date -
Sep 7, 1993
filing date -
Sep 7, 1993
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

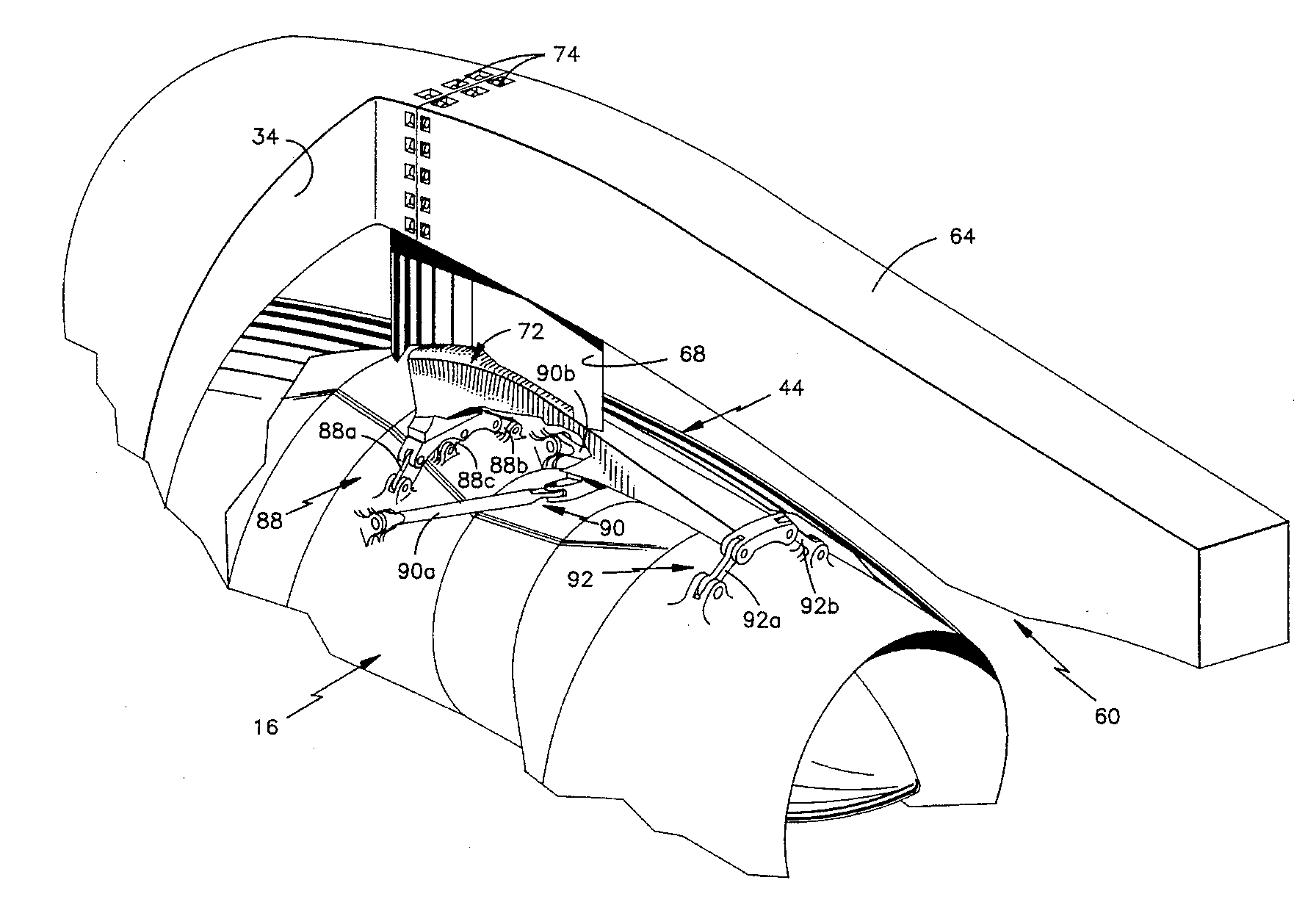

A nacelle and mounting arrangement for a high bypass ratio ducted fan aircraft engine mounted external to the aircraft main structure is disclosed. The nacelle and mounting arrangement isolate the engine from the adverse effects of certain aerodynamic forces acting on the nacelle by transferring substantially all of those forces directly from the nacelle to the aircraft and transferring substantially none of those forces to the engine. Various arrangements of the nacelle components which facilitate engine removal while avoiding the placement of nacelle component interfaces in highly stressed regions of the nacelle are also disclosed.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 410 Citation Count
- B64D Class
- 97.22 % this patent is cited more than
- 29 Age
