Flashtube trigger circuit with anode voltage boost feature
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 4, 1996
Grant Date -
N/A
app pub date -
Jun 16, 1994
filing date -
Jun 16, 1994
priority date (Note) -
Expired
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

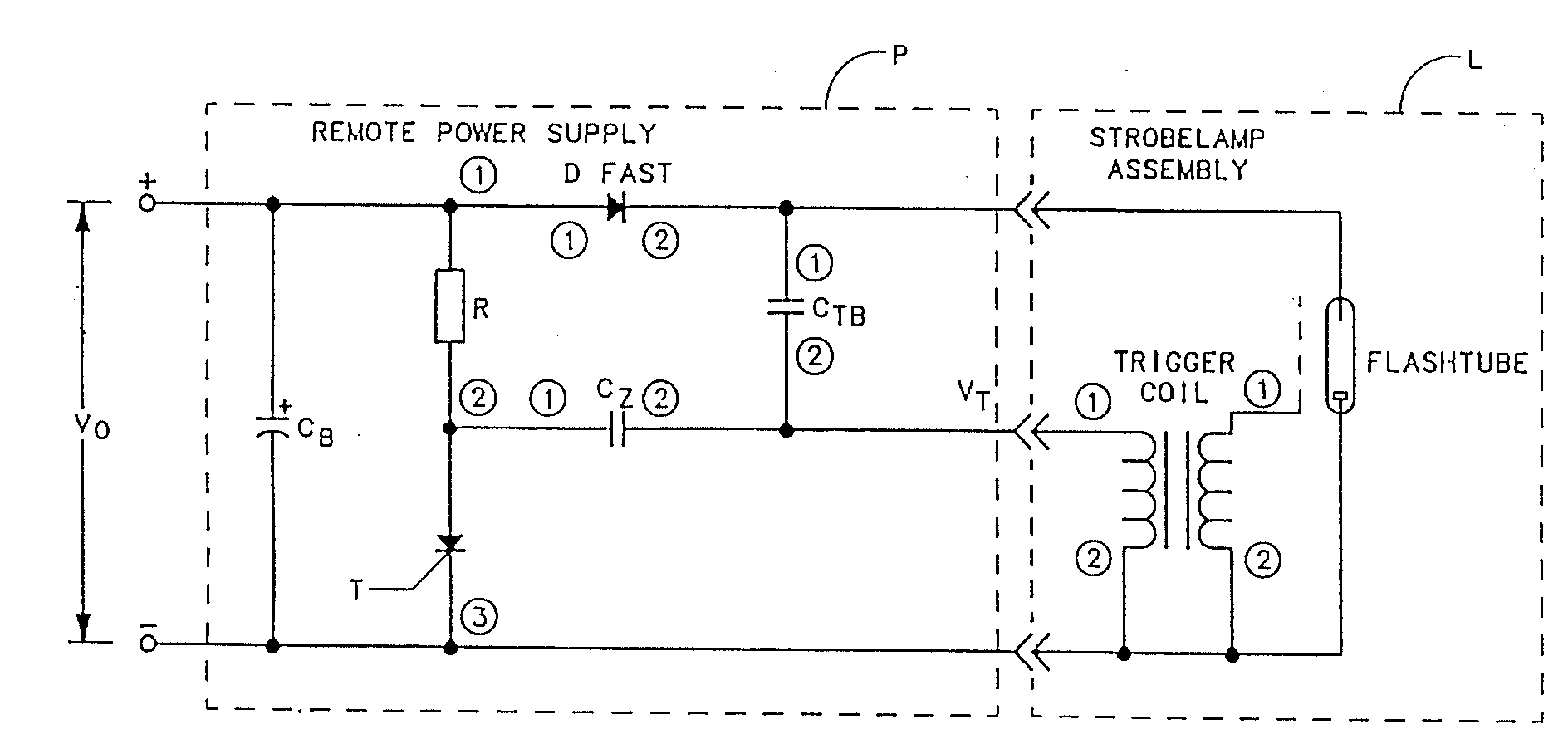

This circuit facilitates the triggerability of a remote three wire flashtube and trigger coil assembly at a much lower than normal anode power supply voltage. The discharge of the trigger capacitor produces the usual trigger-event in the trigger coil. Simultaneously, a trigger boost capacitor boosts the flashtube anode voltage to approximate the supply voltage plus the voltage across the trigger coil primary winding. As a result, the flashtube anode voltage is essentially doubled at the outset of each trigger event.
