Sealing arrangement
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 7, 1996
Grant Date -
N/A
app pub date -
May 3, 1994
filing date -
May 5, 1993
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

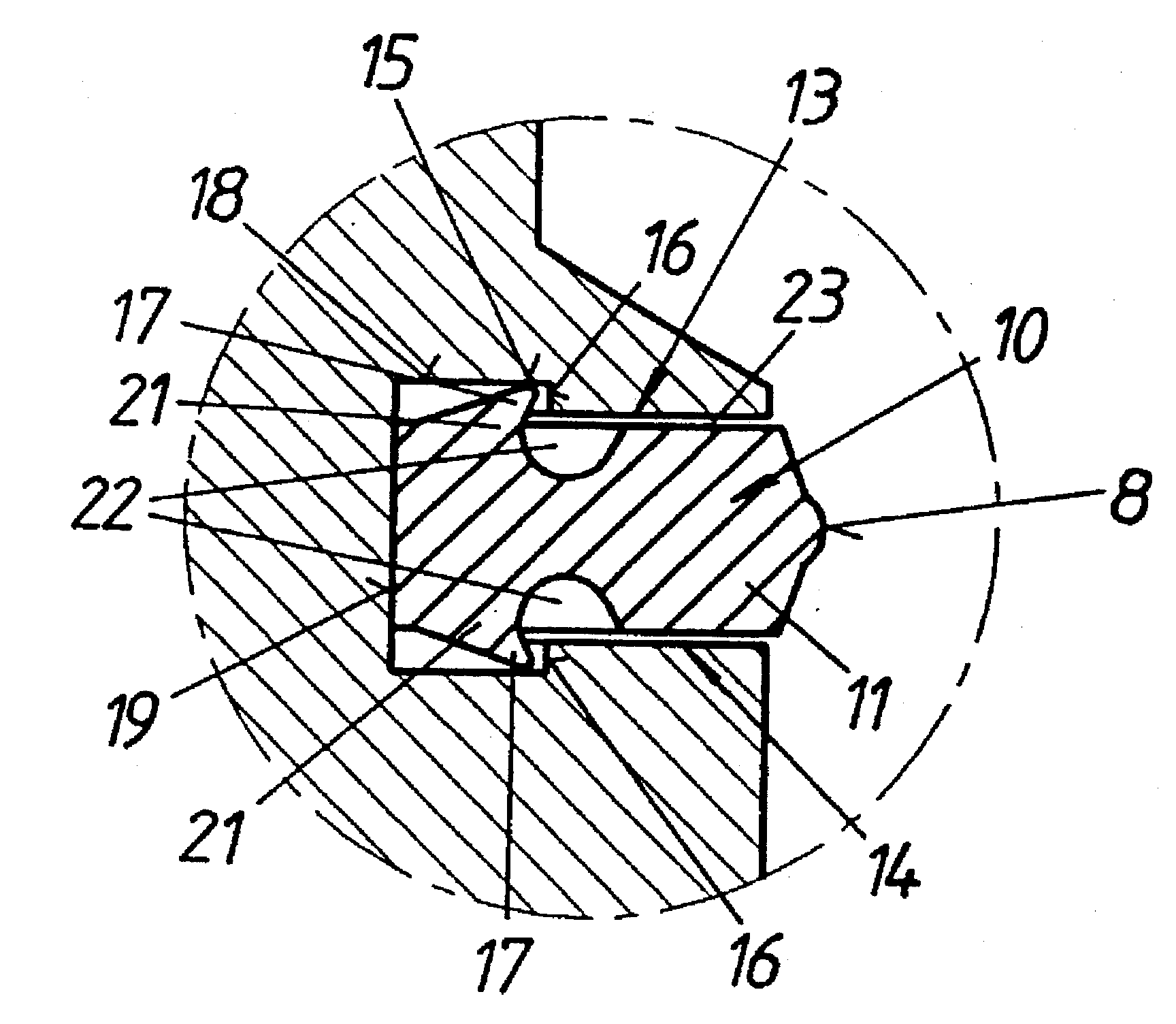

A sealing ring (10) includes an outer sealing region (11) with a sealing edge (18) which rests in the installed state against the surface region to be sealed, and a holder region (12) which is situated within the sealing region (11). To prevent or render the pulling out of the sealing ring (10) from the corresponding groove-shaped recess (13) more difficult, the groove-shaped recess (13) includes at least one offset holding shoulder (16), and the holding region of the sealing ring (10) includes at least one corresponding holding edge (17), which in the installed state of the sealing ring (10) holds the sealing ring shape-lockingly like a barb.
First Claim
Other Claims data not available
