Cotton candy machine and sugar controller
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 12, 1996
Grant Date -
N/A
app pub date -
Apr 7, 1994
filing date -
Apr 7, 1994
priority date (Note) -
Expired
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

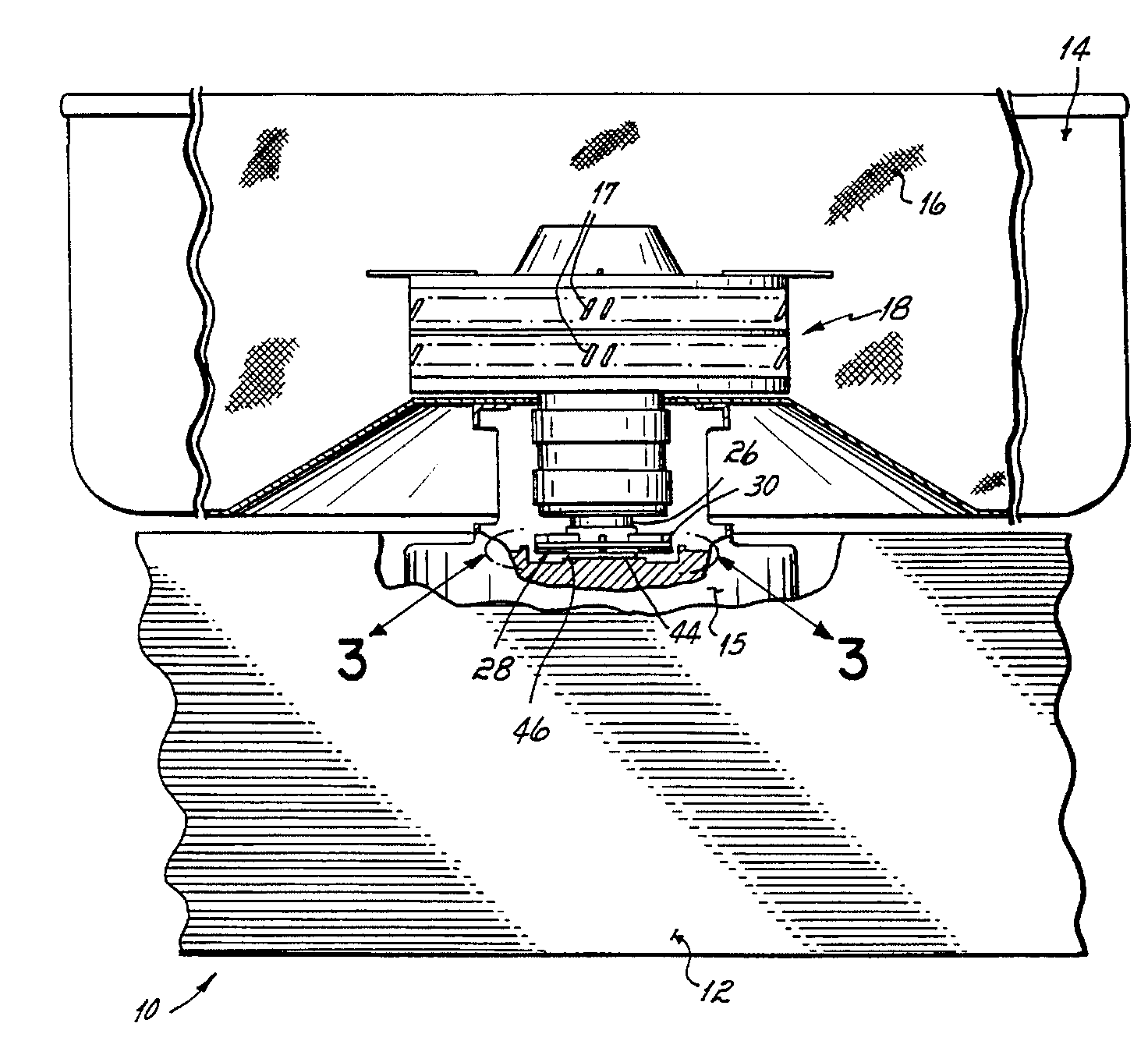

In a cotton candy machine for spinning granular sugar into filaments and having a rotatable shaft, a spinner head mounted on the shaft for rotation therewith, bearings rotatably supporting the rotatable shaft below the spinner head, an impeller mounted on the shaft for rotation therewith and being disposed between the spinner head and the bearings. The impeller rotates to blow sugar which finds its way down to the level of the impeller away from the bearings. The impeller has a plurality of radially extending fins or vanes on at least one of the upper and lower side, and an O-ring groove in its lower side in which an O-ring is seated which seals against the motor. Radially directed air flow generated by rotation of the impeller with the rotating shaft directs sugar granules away from the bearings, and the O-ring seals the impeller against the motor to provide an additional check against sugar entering the bearings. Sugar is unable to reach the bearings of the motor and motor life is increased.
First Claim
all claims..Other Claims data not available
Family
- No Family data available.
- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
GOLD MEDAL PRODUCTS CO | 10700 MEDALLION DRIVE CINCINNATI OH 45241 |
International Classification(s)

- 1994 Application Filing Year
- B28B Class
- 120 Applications Filed
- 48 Patents Issued To-Date
- 40 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Francis, Kurt M | Cincinnati, OH | 1 | 15 |
# of filed Patents : 1 Total Citations : 15 | |||
Hubbard, Leroy | Independence, KY | 2 | 21 |
# of filed Patents : 2 Total Citations : 21 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 15 Citation Count
- B28B Class
- 66.67 % this patent is cited more than
- 29 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
- No Legal Status data available.

Matter Detail

Renewals Detail
