Vertical boat and a method for making the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 20, 1996
Grant Date -
N/A
app pub date -
Nov 12, 1993
filing date -
Nov 27, 1992
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

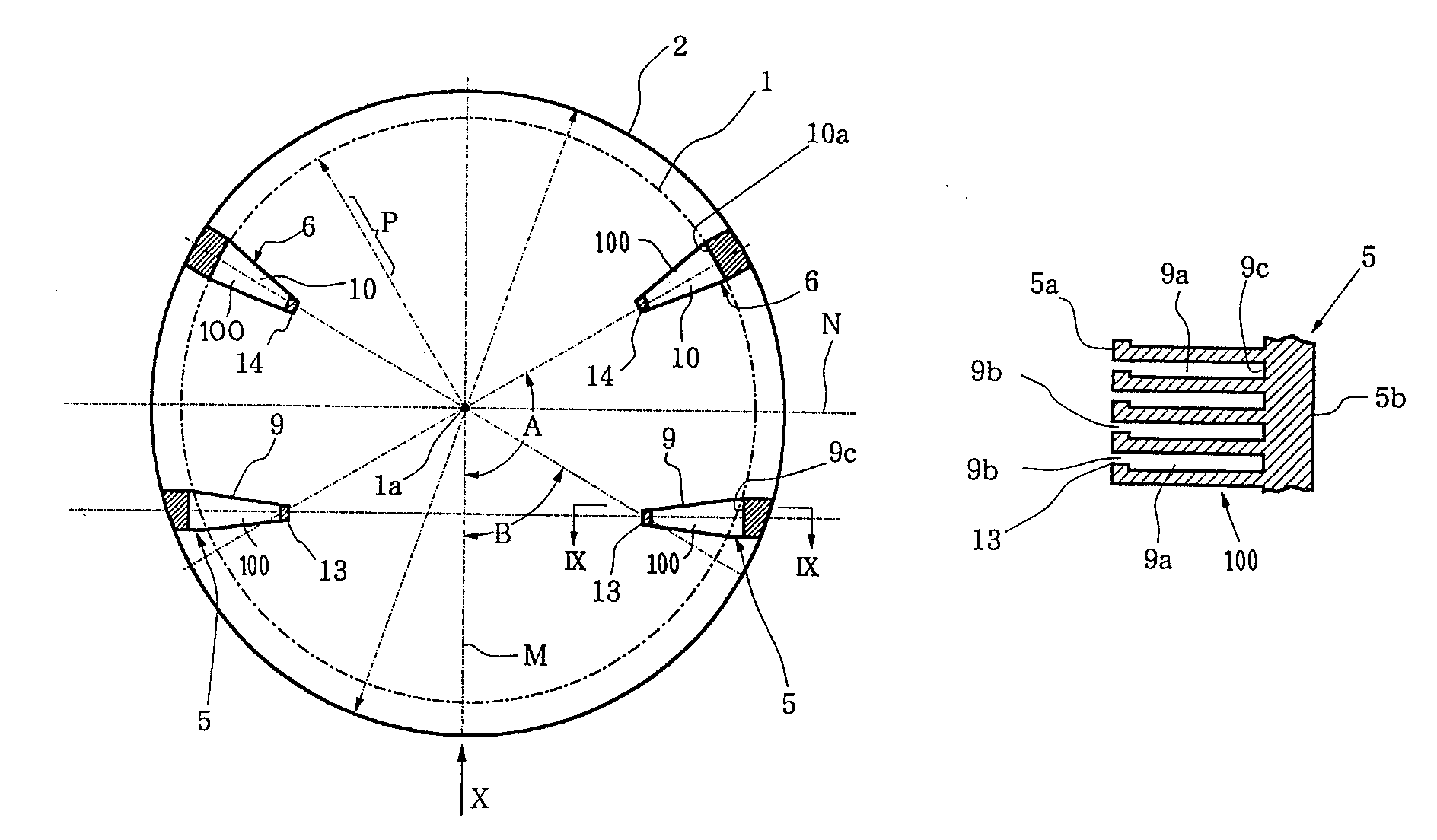

A vertical boat for holding a plurality of semiconductor wafers comprising two end members (2) positioned at the top and the bottom of the vertical boat, and a plurality of support members (3,4,5,6,104) vertically mounted on the end members (2) for supporting the wafers, wherein each support member (3,4,5,6,104) is formed by a plate-like member having a series of slits (9,10,7,8,108) formed thereon in such a manner that a plurality of support arms are defined by the slits (9,10,7,8,108) at a predetermined interval, each support arm having a support projection (11,12,13,14,112) formed at the end thereof, and wherein the inner portions (P) of the wafer (1) is to be supported by the support projections (11,12,13,14,112) whereas the periphery of the wafer (1) does not contact the arms of the support members (3,4,5,6,104). The slits can be formed in two steps: forming a series of first slit portions on the plate-like member at a predetermined interval so as to retain two side walls of the plate-like member; and forming a series of second small slit portions on one of the side walls at the same interval so as to connect each second slit portion to the corresponding first slit portion.
First Claim
Other Claims data not available
