US Patent No: 5488380

Packaging architecture for phased arrays

---

Abstract

---

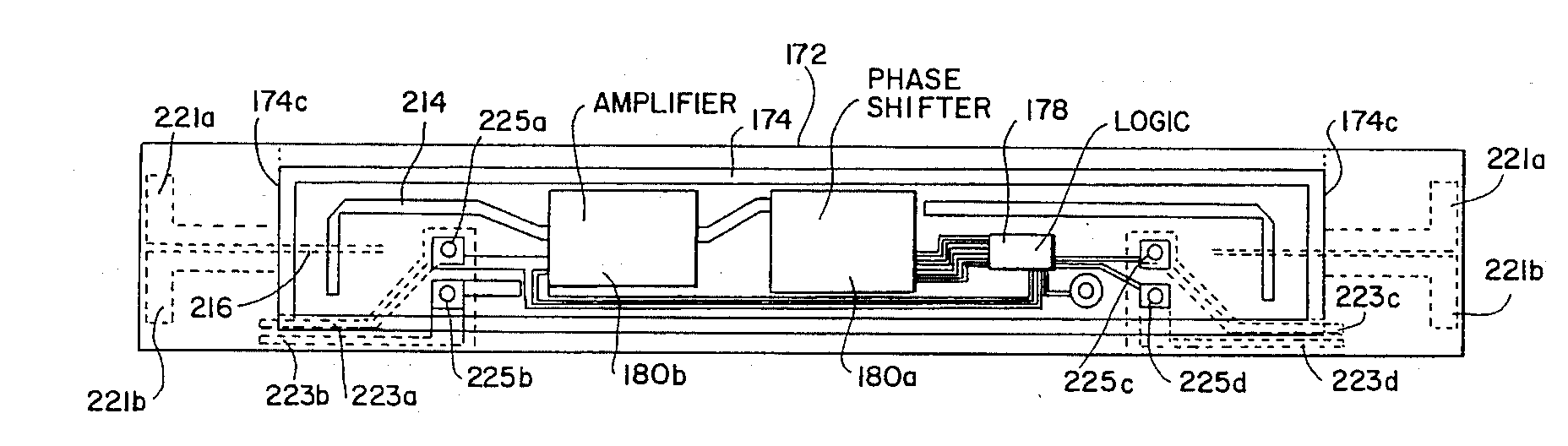

A dipole antenna is inserted into a waveguide to couple EM energy into and out of a waveguide. The dipole antenna is printed on a substrate of a module that contains electronic components. The substrate includes a coupled coplanar strip transmission line connecting the dipole antenna to a slotline. EM energy is electromagnetically coupled between the slotline and a microstrip transmission line. The EM energy is provided to and from the hermetically sealed electronic components by the microstrip transmission line.

---



---
