Method and apparatus for separating particles from liquids
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 1996
Grant Date -
N/A
app pub date -
Dec 7, 1994
filing date -
Dec 7, 1994
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

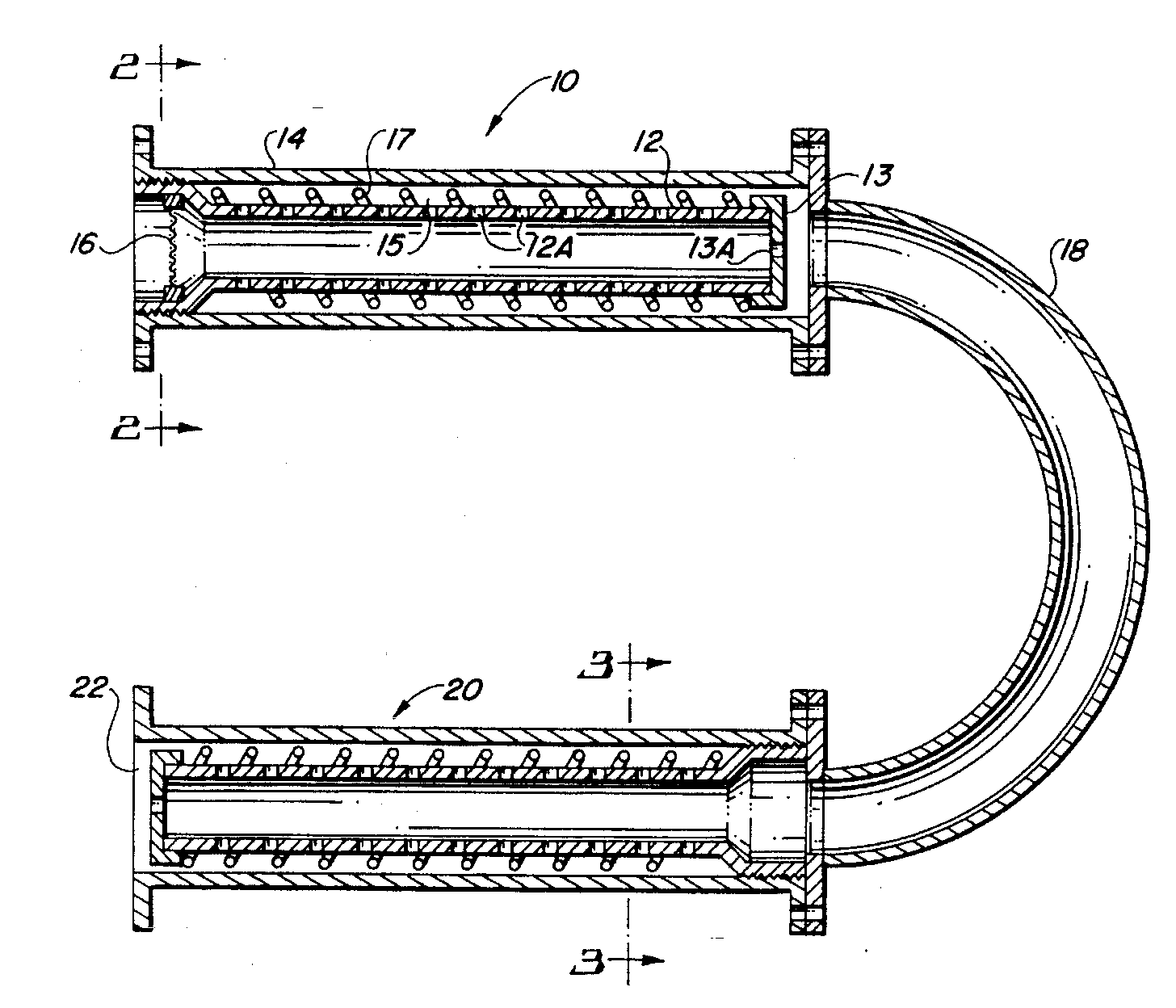

Method and apparatus for separating immiscible solid or liquid particles such as oil from a liquid-based mixture or emulsion. The apparatus consists of two spaced apart concentric elongated metal cylinders. The wall of the innermost cylinder contains a multiplicity of spaced apart radially bored holes and its exit end is capped. The outer surface of the innermost cylinder and the inner surface of the outer cylinder consists of an alloy of copper and nickel. Liquid is pumped under pressure into the innermost cylinder causing a multiplicity of jets of liquid to issue from the holes in the inner cylinder wall to bombard the copper-nickel surface of the inner wall of the outer cylinder. Electrons freed from the copper in the wall combine with both liquid molecules and particle molecules, causing the particles to separate from the liquid.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- B01D Class
- 3.66 % this patent is cited more than
- 29 Age
