Resonant microcavity display
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 21, 1995
Grant Date -
N/A
app pub date -
Jul 20, 1993
filing date -
Jul 20, 1993
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

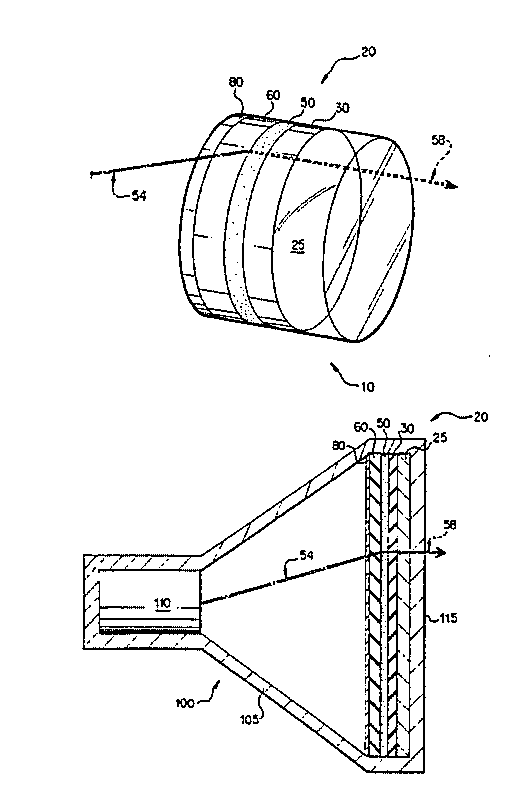

A resonant microcavity display, comprising a thin-film resonant microcavity with a phosphor active region is disclosed. The microcavity comprises: a rigid substrate; a front reflector disposed upon the rigid substrate; a phosphor active region disposed upon the front reflector; and a back reflector disposed upon the active region. The display preferentially emits light that propagates along the axis perpendicular to plane of the display, due to its quantum mechanical properties. It exhibits high external efficiency, highly controllable chromaticity, high resolution, highly directional output and highly efficient heat transfer characteristics. For these reasons it provides a suitable display element for projection screen television, high definition television, direct view television, flat panel displays, optical coupling, and other applications.
First Claim
Other Claims data not available
