Temporary roadway marker
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 24, 1995
Issued Date -
N/A
app pub date -
Feb 10, 1994
filing date -
May 2, 1991
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

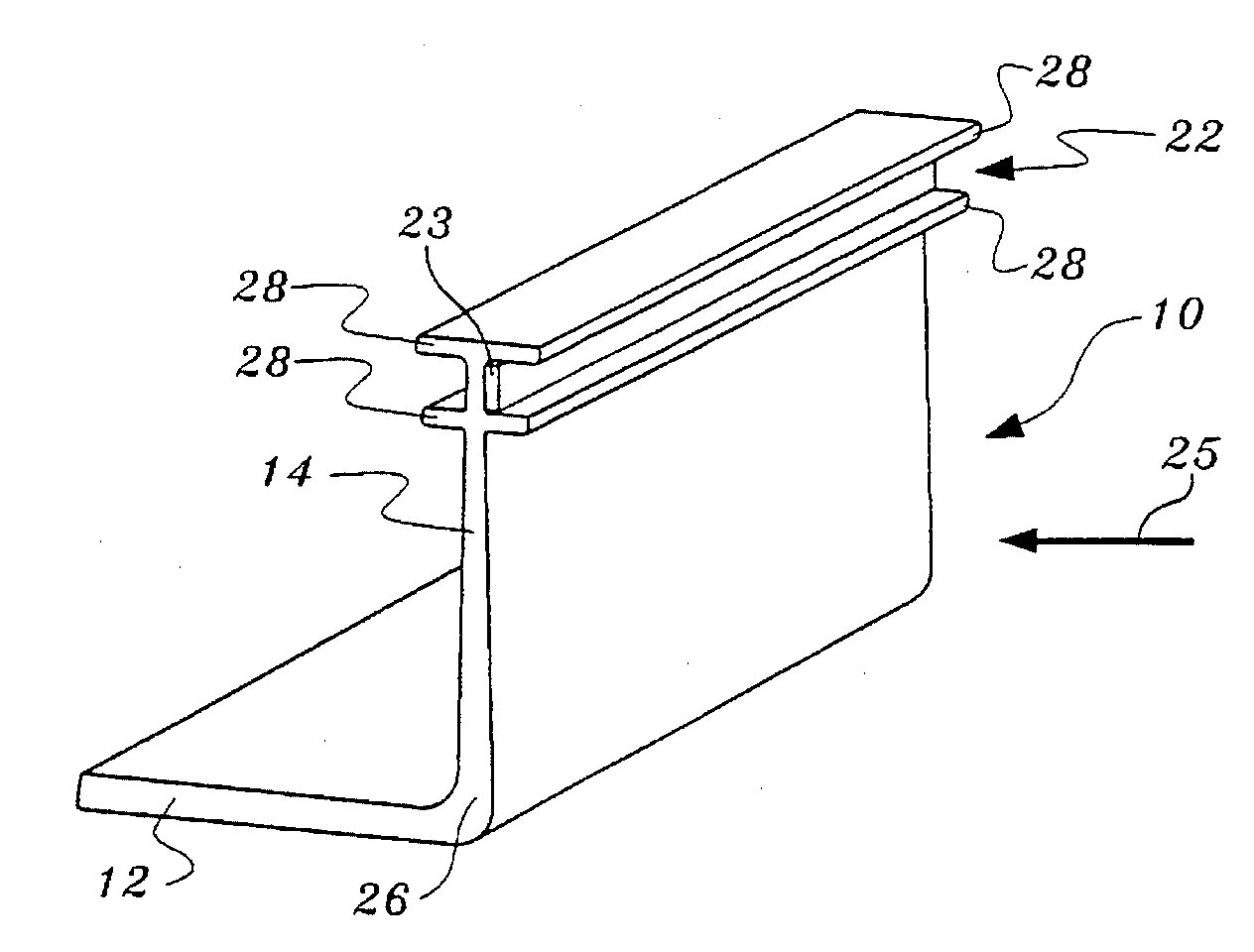

A temporary roadway marker having an L-shape that includes a base adapted to be attached to the roadway surface and an upwardly extending leg on which a reflective strip may be mounted is disclosed. The body of the roadway marker is formed of two materials having different flexural moduli, thus allowing the upper portion of the roadway marker to be formed of a material having a flexural modulus similar to that of the reflective strip. This helps to prevent stress concentration in the interface in between the reflective strip and the upper portion of the roadway marker, thus reducing cracks and failure of the reflective strip. In addition, it allows the base and the transition between the base and the upwardly extending leg to be formed of a more flexible material, which allows better flexing without breakage and the base to conform to the roadway surface. The roadway marker may also include a reverse curve, or nubbles located on opposite sides of the interface, between the upwardly extending leg and the base of the roadway marker to decrease stress concentrations when the leg deforms upon contacting a vehicle's tire.
First Claim
Other Claims data not available
