Interlocking shutter curtain assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 17, 1995
Grant Date -
N/A
app pub date -
Aug 29, 1994
filing date -
Aug 29, 1994
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

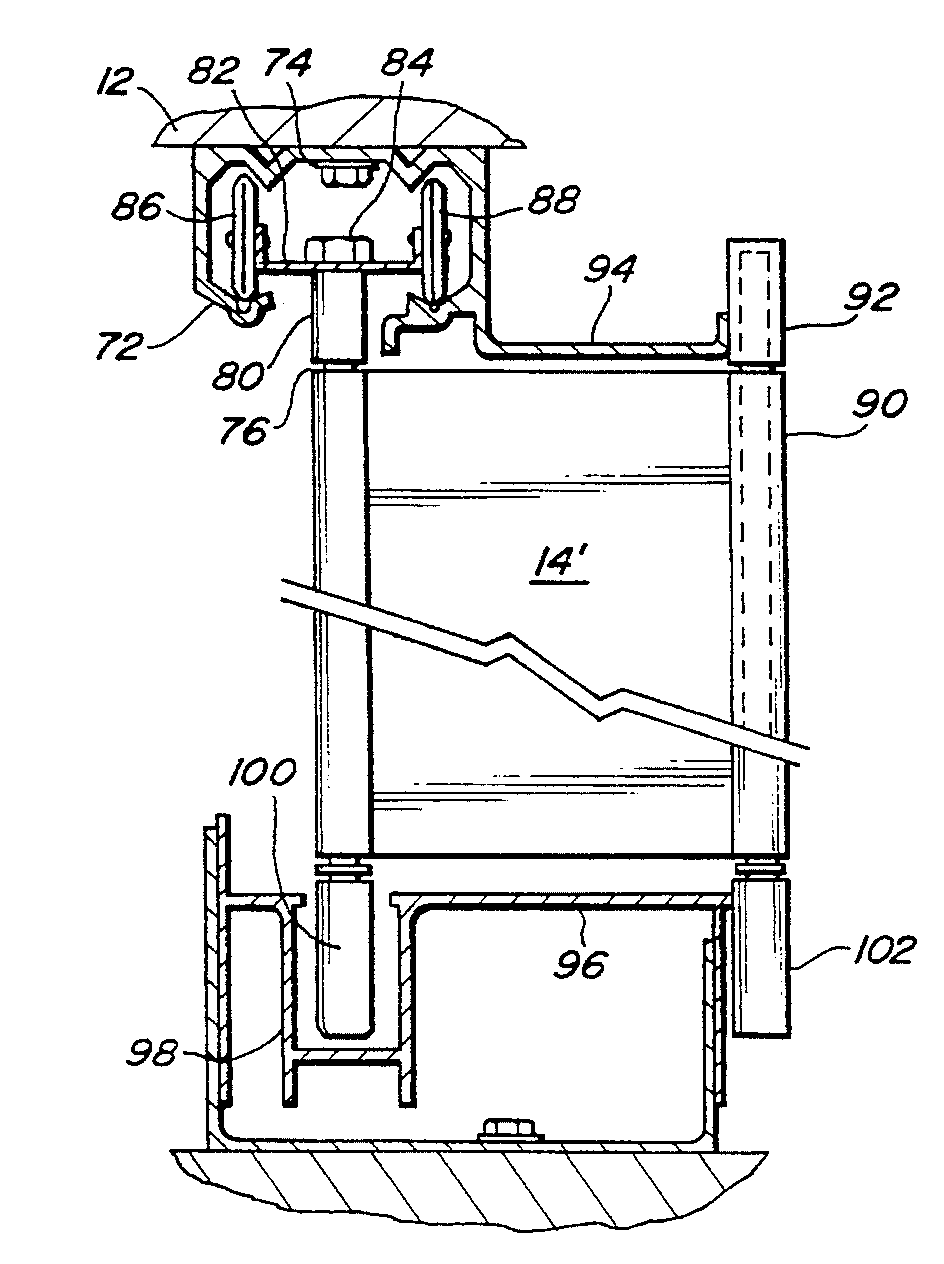

A blade member for use in a shutter curtain assembly. The blade member is of a given height and has a top, a bottom, a first edge and a second edge. A first semi-cylindrical interlocking portion extends along the first edge. The first portion includes a pair of inwardly-directed tangs which extend from opposite sides of the semi-cylinder. A second semi-cylindrical interlocking portion extends along the second edge and is sufficiently smaller in diameter than the first portion. A second interlocking portion of a succeeding blade member may be slidably inserted into the first interlocking portion. The second portion includes a pair of outwardly-directed tangs which abuttingly engage the inwardly-directed tangs of the first interlocking portion. A series of blade portions are thus interconnected and form a continuous shutter curtain which is selectively unfolded or retracted.
