Video game and simulator joystick controller with geared potentiometer actuation
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 25, 1995
Issued Date -
N/A
app pub date -
Nov 30, 1994
filing date -
Oct 29, 1993
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

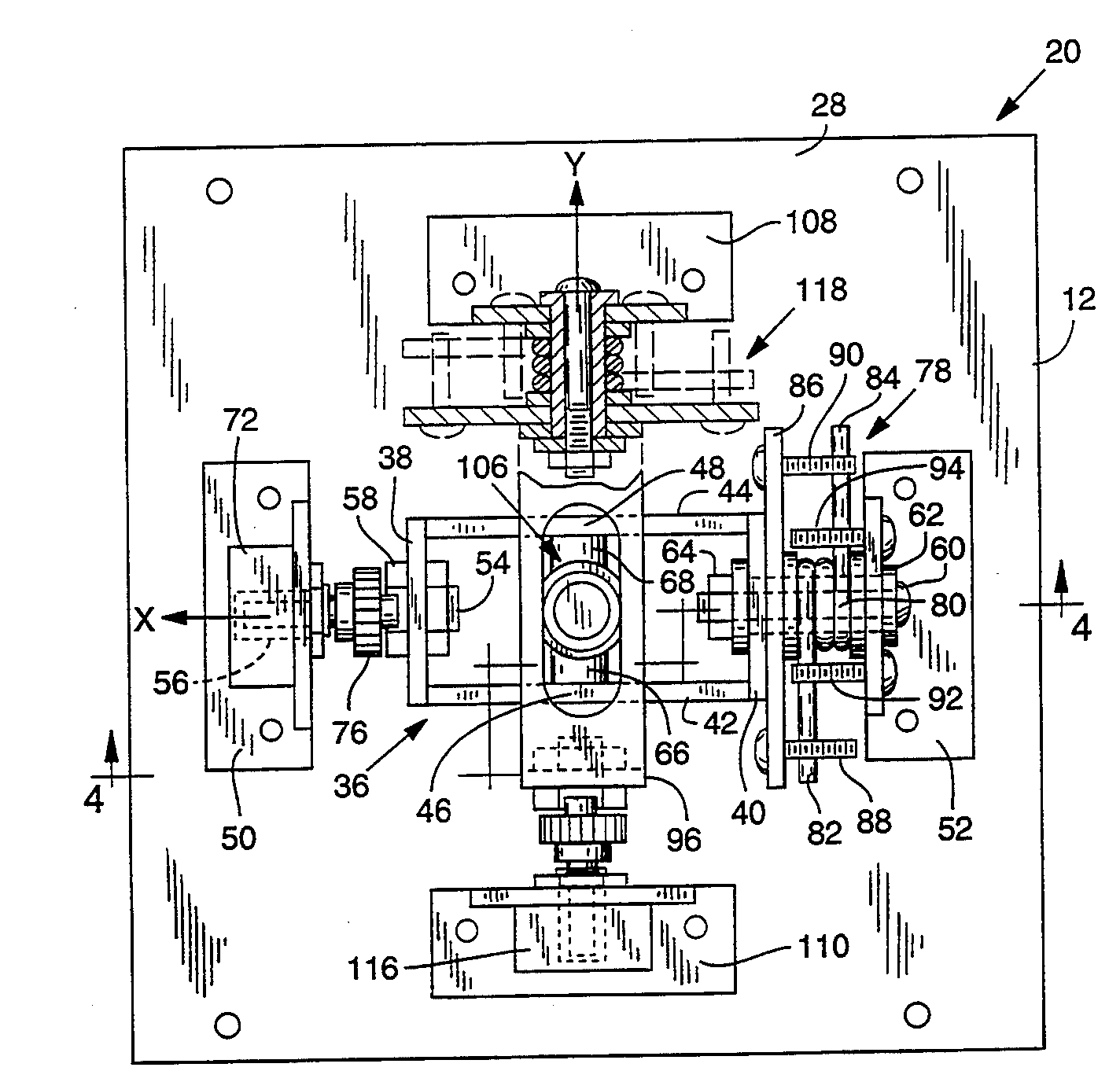

A joystick controller for a video simulation system having a geared potentiometer actuation mechanism. The joystick controller comprises a base, a handle mounted on an actuation shaft, and first and second gimbals pivotally mounted on the base by pivot members for rotational movement about respective axes. The joystick shaft is coupled to the first and second gimbals so that the gimbals rotate about their corresponding axes responsive to movement of the joystick handle. Each gimbal has a corresponding potentiometer for sensing the rotational movement thereof. The first gimbal has a first gear connected thereto for rotational movement therewith. The corresponding potentiometer is mounted on the base opposite the first gear and a second gear is connected to the stem of the potentiometer such that the second gear is in tooth engagement with the first gear. A similar gearing configuration is used to couple the second gimbal to the corresponding potentiometer. A cable is connected to the to the two potentiometers to allow their settings read by the video simulation system when the cable is connected thereto.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 186 Citation Count
- G09G Class
- 99.09 % this patent is cited more than
- 30 Age
