Cast wheel reinforced with a metal matrix composite

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 5433511
SERIAL NO

08133690

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

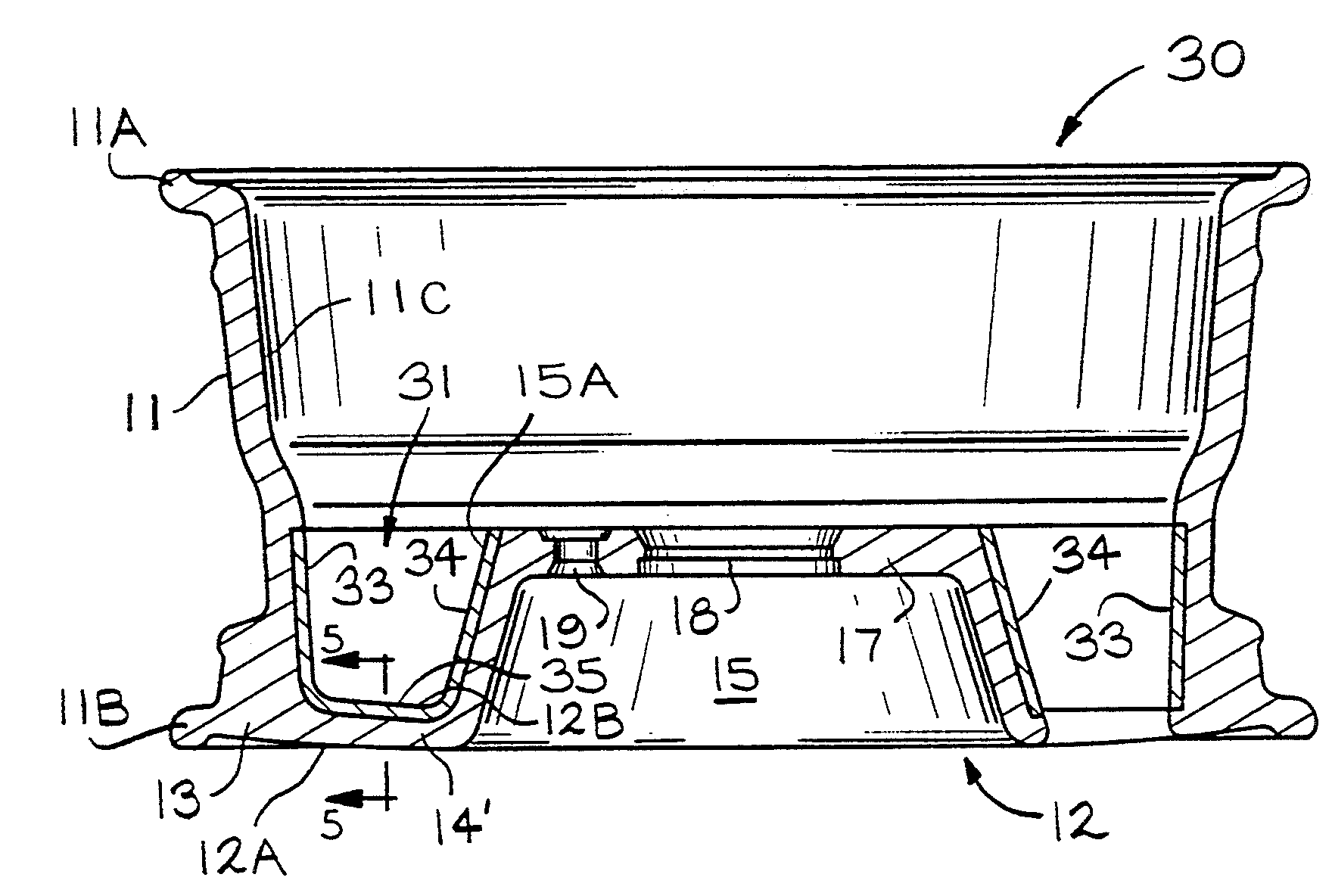

A light weight cast metal wheel having a disk-shaped wheel disk formed across an annular wheel rim and including a reinforcing layer of a metal matrix composite extending radially across the wheel disk. The reinforcing layer also can extend axially across a portion of the wheel rim. The metal matrix composite layer is formed by securing a preform formed from a reinforcing material within the wheel mold prior to casting the wheel. The use of a preform assures that the resulting reinforcing layer is uniform.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
HAYES WHEELS INTERNATIONAL38481 HURON RIVER DRIVE ROMULUS MI 48174

International Classification(s)

loading....
  • 1993 Application Filing Year
  • B60B Class
  • 102 Applications Filed
  • 34 Patents Issued To-Date
  • 33.34 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances1993199419951996199719981999200020010255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Wei, Daniel C Ann Arbor, MI 12 161

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 17 Citation Count
  • B60B Class
  • 62.50 % this patent is cited more than
  • 30 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges24321601 - 1011 - 2021 - 3002.557.51012.51517.52022.52527.53032.53537.54042.54547.5

Forward Cite Landscape

Load Citation
