Angle stop box with drain fitting receptacle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 13, 1995
Grant Date -
N/A
app pub date -
Jun 1, 1994
filing date -
Jun 1, 1994
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

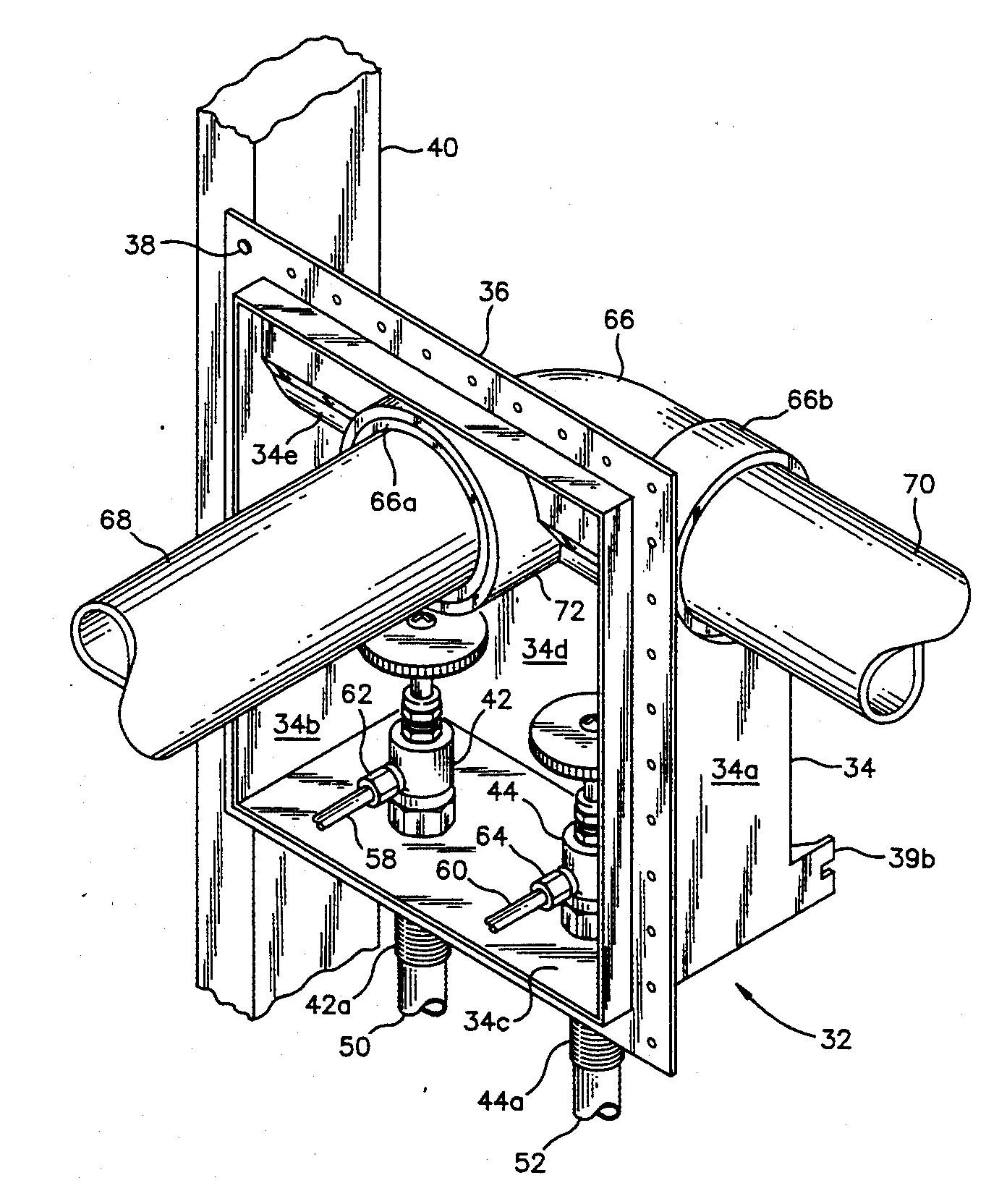

An angle stop box includes a generally rectangular housing having a bottom wall and a pair of sidewalls connected to the bottom wall. The bottom wall has a pair of holes extending therethrough. A pair of angle stop valves have their male shanks mounted in corresponding holes in the bottom wall of the housing. A drain fitting receptacle is formed in an upper part of the housing for coupling to a downstream end of a P-trap on a forward side of the drain fitting receptacle and for coupling to drain and vent pipes on a rear side of the drain fitting receptacle. The drain fitting receptacle includes a cylindrical sleeve for receiving a forward end of a pipe fitting, such as a ninety-degree elbow or a T-shaped fitting. The housing has a flange that extends around an entire periphery thereof for facilitating the attachment of the box to one or more studs by nailing therethrough.
