Cylinder lock provided with an exchangeable lock-cylinder
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 6, 1995
Grant Date -
N/A
app pub date -
Feb 24, 1993
filing date -
Jan 28, 1993
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

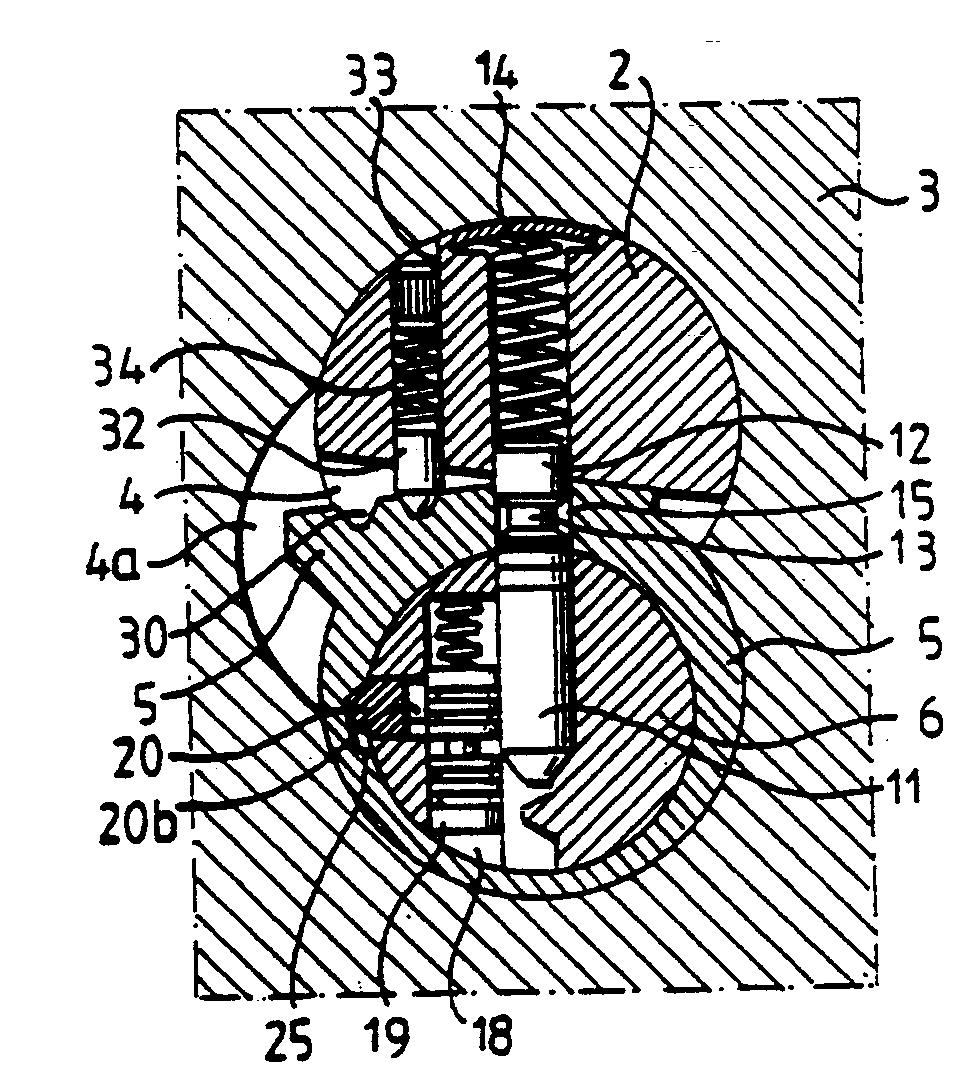

A cylinder lock can be manipulated by a control key (7) and a system key (8), each of which has a system code (7a , 8a) and a side code (7b , 8b). With the aid of the control key (7), the lock-cylinder (2) of the lock can be removed from the casing (3) for replacement with another cylinder. The cylinder plug (6) is surrounded by a lock-part (5) having a latching element (5a) which is moveable through an angle of about 20.degree. between a latching and a releasing position. When replacing the lock-cylinder, the cylinder is released through the action of the side code (7b) on the control key (7) and a side-bar (20) which is manipulated by side pins (19) mounted in the plug (6). To this end, grooves (26, 25) provided respectively in the lock-cylinder (2) and the lock-part (5) for accommodation of the side-bar (20) may be provided with peripheral extensions which enable the side-bar to move idly.
