Apparatus for collapsing microwave popcorn bags held in a fixture
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 30, 1995
Grant Date -
N/A
app pub date -
Dec 10, 1993
filing date -
Dec 10, 1993
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

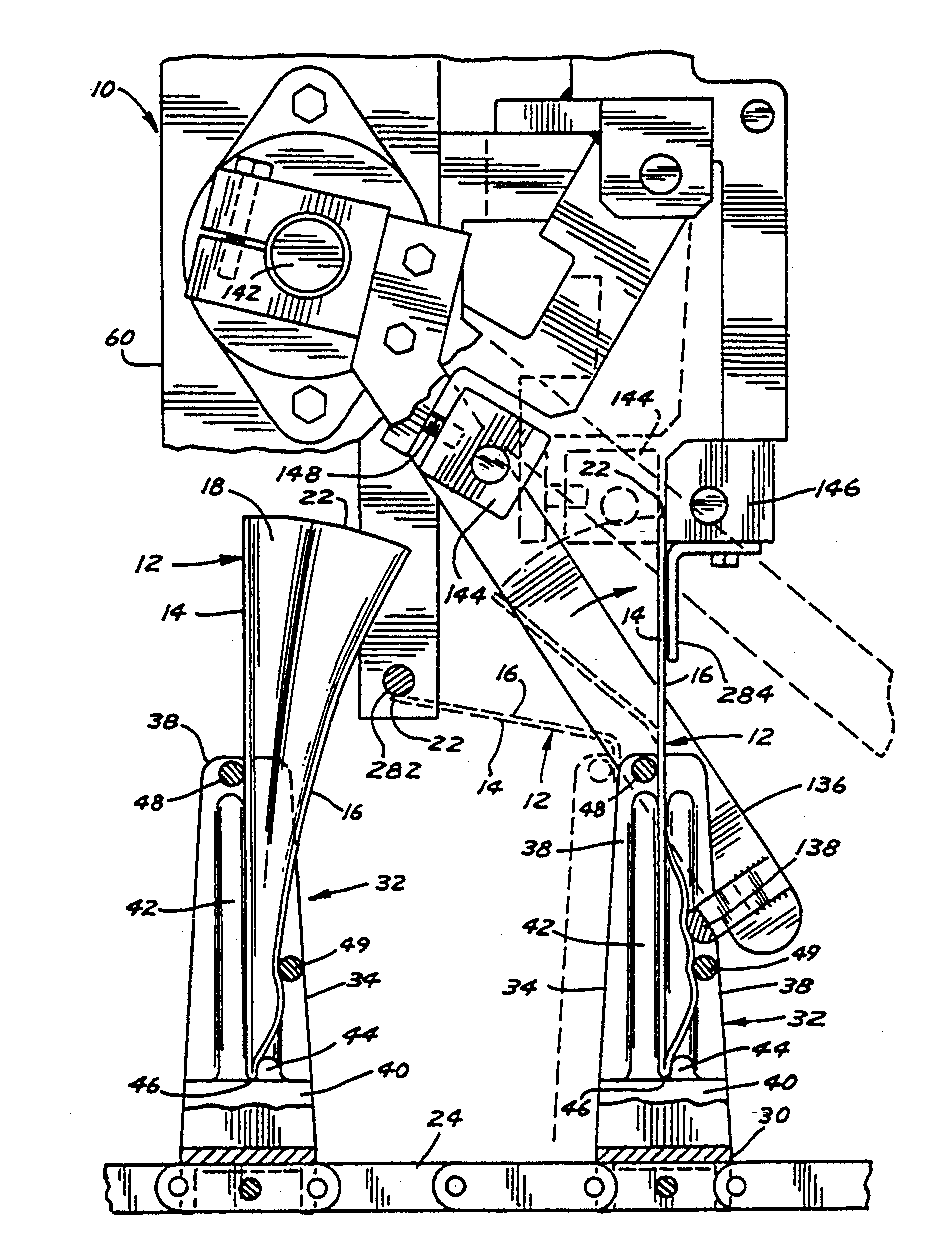

An apparatus (10) is disclosed including an abutment (282) in the form of an elongated rod positioned in front of the sealing intermittent position which rearwardly deflects the portions of bags (12) extending out of fixtures (32) moving in an operation direction. The bags (12) then slap forwardly against a stop (284) as the fixtures (32) reach the sealing intermittent position, with the stop (284) being in the form of a plate carried by the sealing jaw (146) of the sealing position. Arms (136) are pivoted between a transport position spaced from the fixtures (32) and a compression position to engage a rod (138) with the bags (12) above an expansion prevention bar (49) of the fixtures 32 to deflect the product located in the bags (12) into a more planar condition.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- B65B Class
- 3.52 % this patent is cited more than
- 30 Age
