Method of fabricating a gallium nitride based semiconductor device with an aluminum and nitrogen containing intermediate layer
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 14, 1995
Issued Date -
N/A
app pub date -
Apr 16, 1993
filing date -
Dec 18, 1991
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

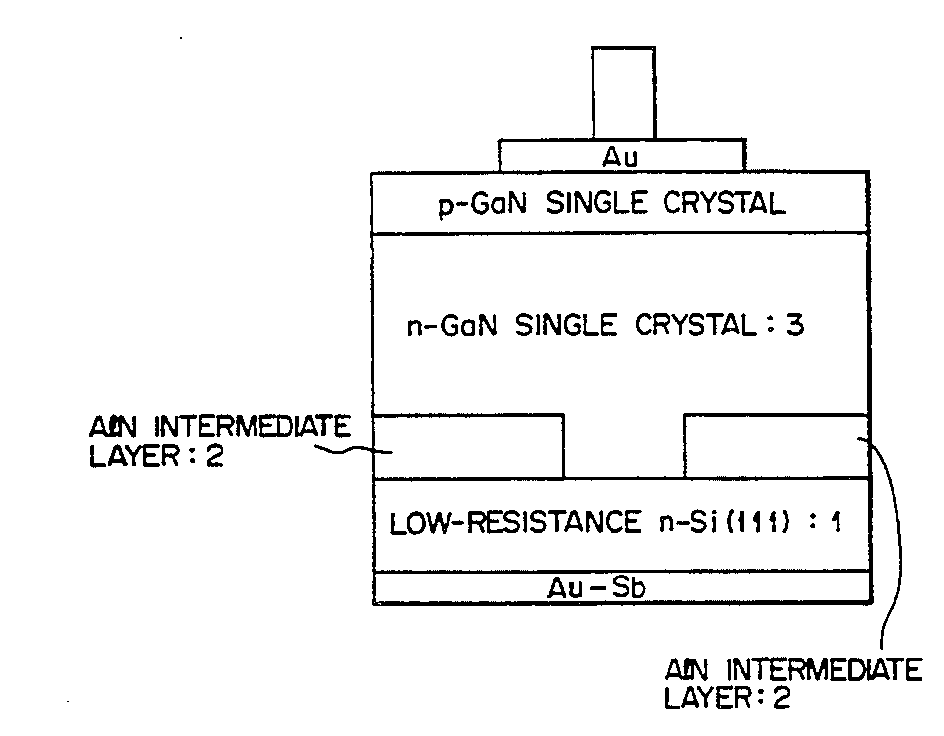

Disclosed are a gallium nitride type semiconductor device that has a single crystal of (Ga.sub.1-x Al.sub.x).sub.1-y In.sub.y N, which suppresses the occurrence of crystal defects and thus has very high crystallization and considerably excellent flatness, and a method of fabricating the same. The gallium nitride type semiconductor device comprises a silicon substrate, an intermediate layer consisting of a compound containing at least aluminum and nitrogen and formed on the silicon substrate, and a crystal layer of (Ga.sub.1-x Al.sub.x).sub.1-y In.sub.y N (0.ltoreq.x.gtoreq.1, 0.ltoreq.y.ltoreq.1, excluding the case of x=1 and y=0). According to the method of fabricating a gallium nitride base semiconductor device, a silicon single crystal substrate is kept at a temperature of 400.degree. to 1300.degree. C. and is held in the atmosphere where a metaloganic compound containing at least aluminum and a nitrogen-containing compound are present to form a thin intermediate layer containing at least aluminum and nitrogen on a part or the entirety of the surface of the single crystal substrate, and then at least one layer or multiple layers of a single crystal of (Ga.sub.1-x Al.sub.x).sub. 1-y In.sub.y N are formed on the intermediate layer.
