Conveyor belt tensioning mechanism
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 14, 1995
Grant Date -
N/A
app pub date -
Dec 28, 1993
filing date -
Dec 28, 1993
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

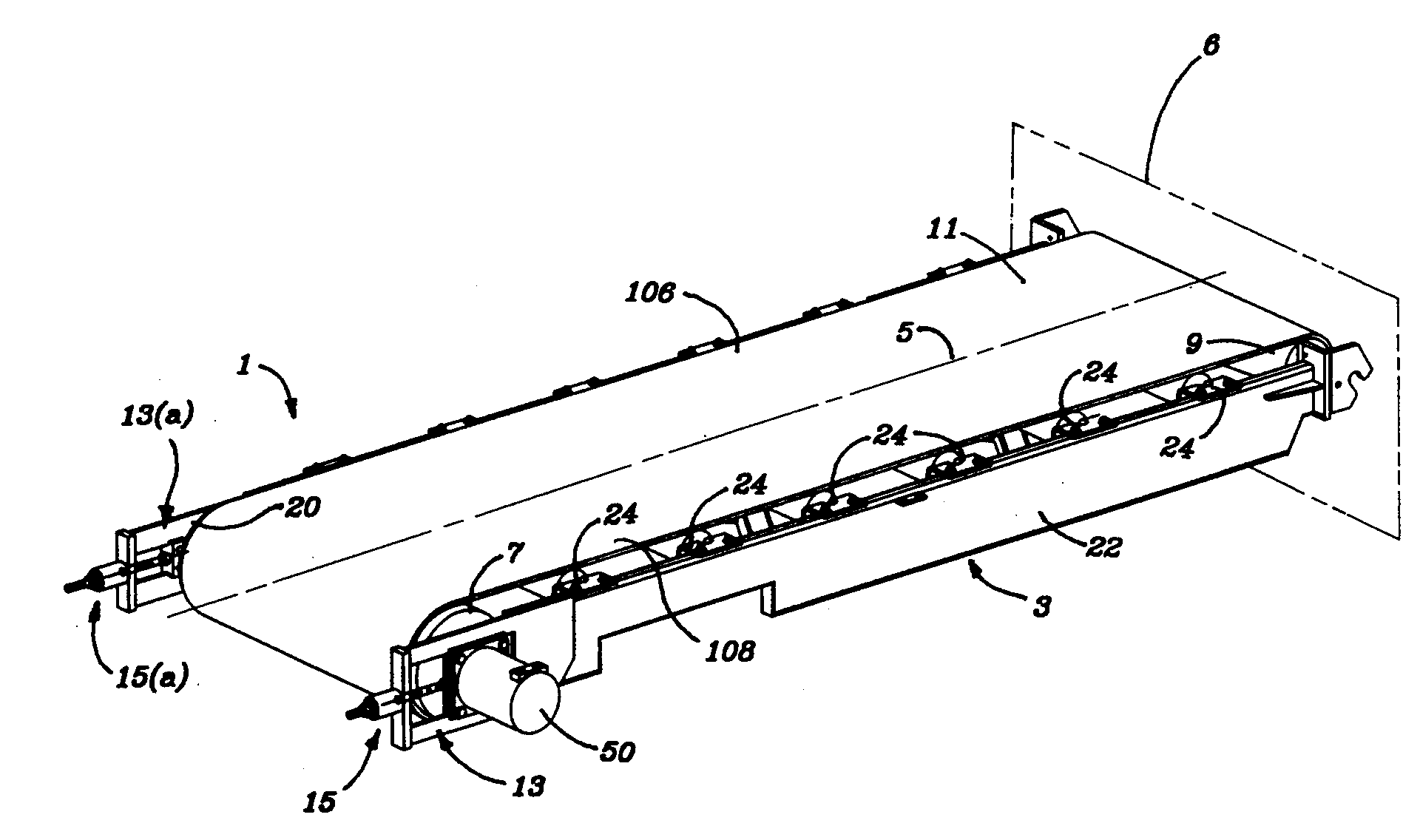

A conveyor belt tensioning mechanism includes a frame assembly, a conveyor belt movable around a head and end pulley on the frame assembly, one of the pulleys being longitudinally movable along the frame assembly, a first adjustment member on the frame assembly for moving one end of the movable pulley longitudinally, to apply tension force to the belt, a second adjustment member on the frame assembly for moving the other end of the movable pulley longitudinally, to apply tension force to the belt, each adjustment member having an indicating member thereon, for indicating when tension force on the belt is within a preselected tension force range.
First Claim
Other Claims data not available
