Electronic read-only memory module
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 24, 1995
Grant Date -
N/A
app pub date -
Feb 22, 1993
filing date -
Mar 10, 1992
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

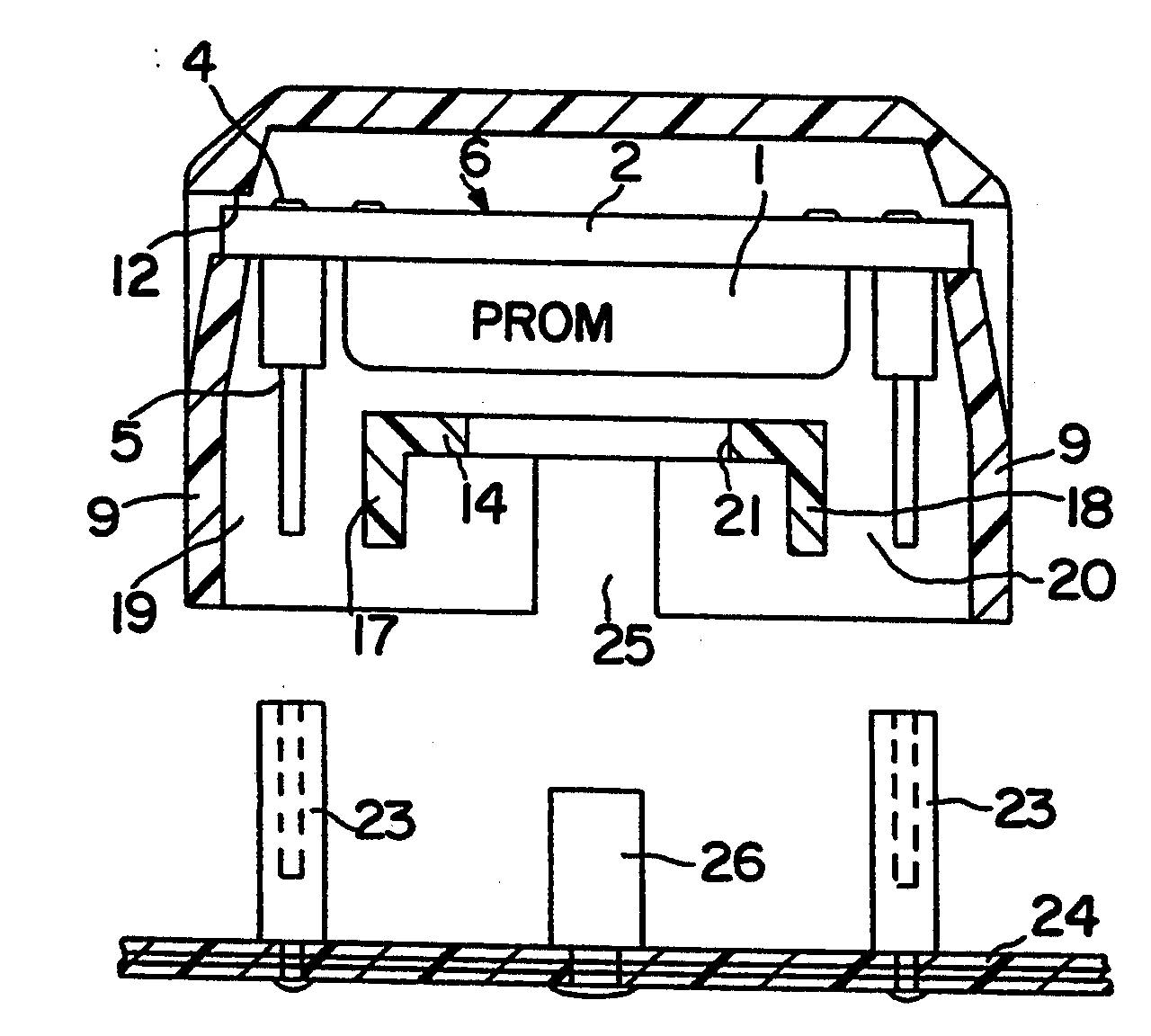

An electronic read-only memory module having an inner casing and an outer casing cap. The inner casing is located on a secondary circuit board from whose edge which projects laterally from the inner casing project contact elements for producing a plug contact with contact counterelements located on a circuit board of a device, which is to be equipped with the ROM module. The outer casing cap has lateral internal gaps which protectively receive the contact elements. Due to the fact that the free ends of the contact elements are set back inwardly with respect to the open edge of the outer casing cap, the contact elements are protected against damage. This also greatly simplifies the loading of a device with the ROM module, because as a result of a simple plugging movement numerous contact elements can be brought into reliable contact with the contact counterelements.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- H01L Class
- 1.77 % this patent is cited more than
- 30 Age
