Tracking system to follow the position and orientation of a device with radiofrequency fields
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 3, 1995
Issued Date -
N/A
app pub date -
Jul 14, 1993
filing date -
Sep 3, 1991
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

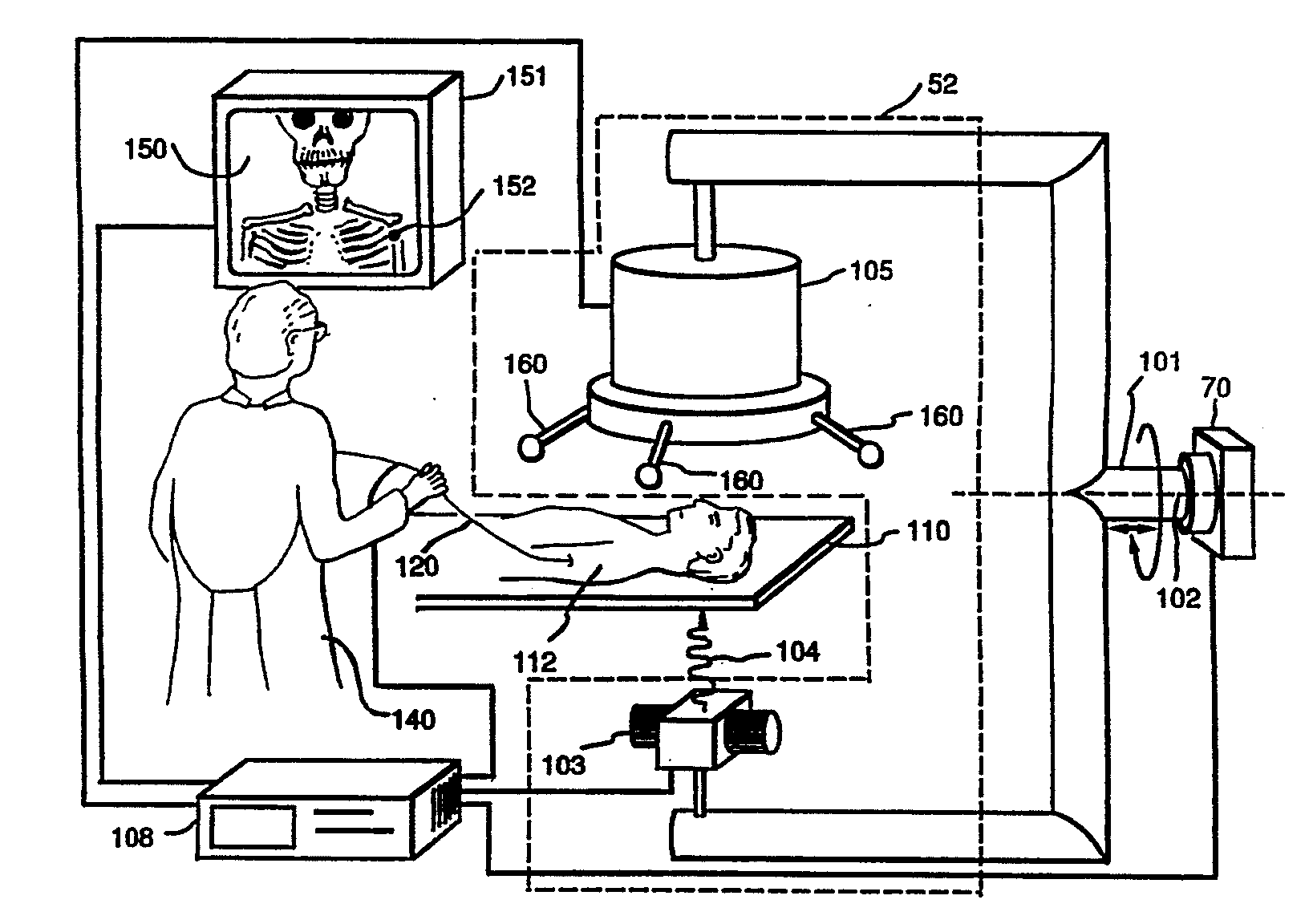

A tracking system in which radiofrequency signals emitted by an invasive device such as a catheter, are detected and used to measure the position and orientation of the invasive device. The invasive device has a transmit coil attached near its end and is driven by a low power RF source to produce a dipole electromagnetic field that can be detected by an array of receive coils distributed around a region of interest. The position and orientation of the device as determined by the tracking system are superimposed upon independently acquired Medical Diagnostic images, thereby minimizing the radiographic exposure times. One or more invasive devices can be simultaneously tracked.
