Method for determining muscle endurance and sensitivity to fatigue
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 8, 1994
Grant Date -
N/A
app pub date -
Apr 6, 1993
filing date -
Apr 6, 1993
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

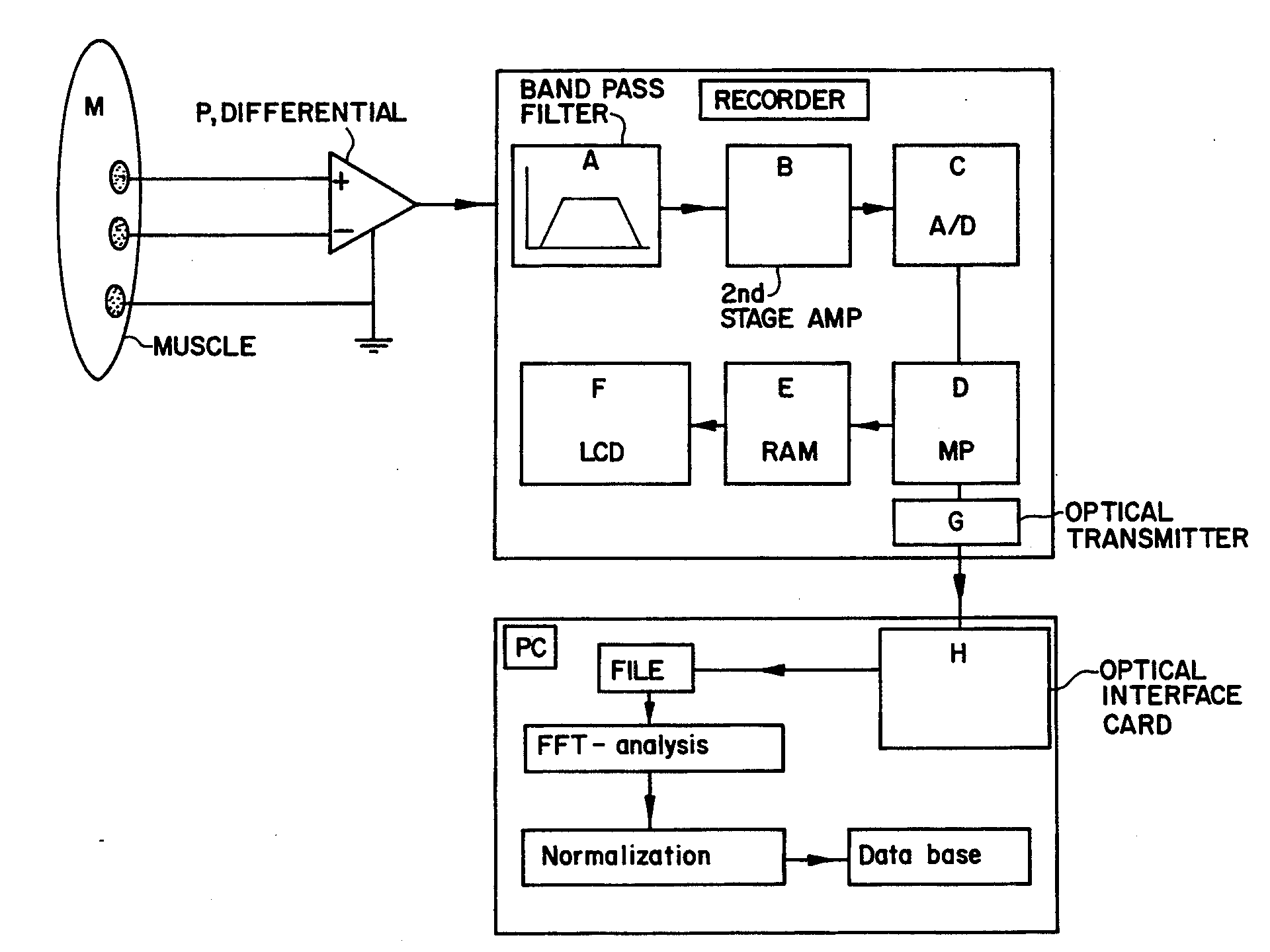

The object of the invention is a method for determination of endurance and sensitivity to fatigue of a muscle. In this method one or more recording electrodes are placed on top of the muscles to be tested from the test subject and the action potentials of the muscle cell membrane of a muscle are measured by recording electrodes and equipments. It is difficult to define the endurance and sensitivity to fatigue of a person's muscles in comparison with the general population. In the method according to the invention a frequency analysis, the so-called FFT-analysis, is performed to the recorded EMG-signal, and by using this analysis with three or more calculation parameters the lowering of the conduction rate of a muscle cell membrane is observed as well as the rate of change of the calculation parameters as a function of time, and a comparable value is obtained which indicates the endurance and sensitivity to fatigue of a muscle. The obtained values are compared with an index which is normalized for each muscle test, and this gives the muscle condition of the person tested in comparison with the general population, or the results are compared with the values previously measured for the individual, and the results are presented graphically.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 73 Citation Count
- A61B Class
- 88.30 % this patent is cited more than
- 31 Age
