Apron table arrangement for a drafting unit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 1, 1994
Grant Date -
N/A
app pub date -
Apr 20, 1992
filing date -
Jul 11, 1991
priority date (Note) -
Expired
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

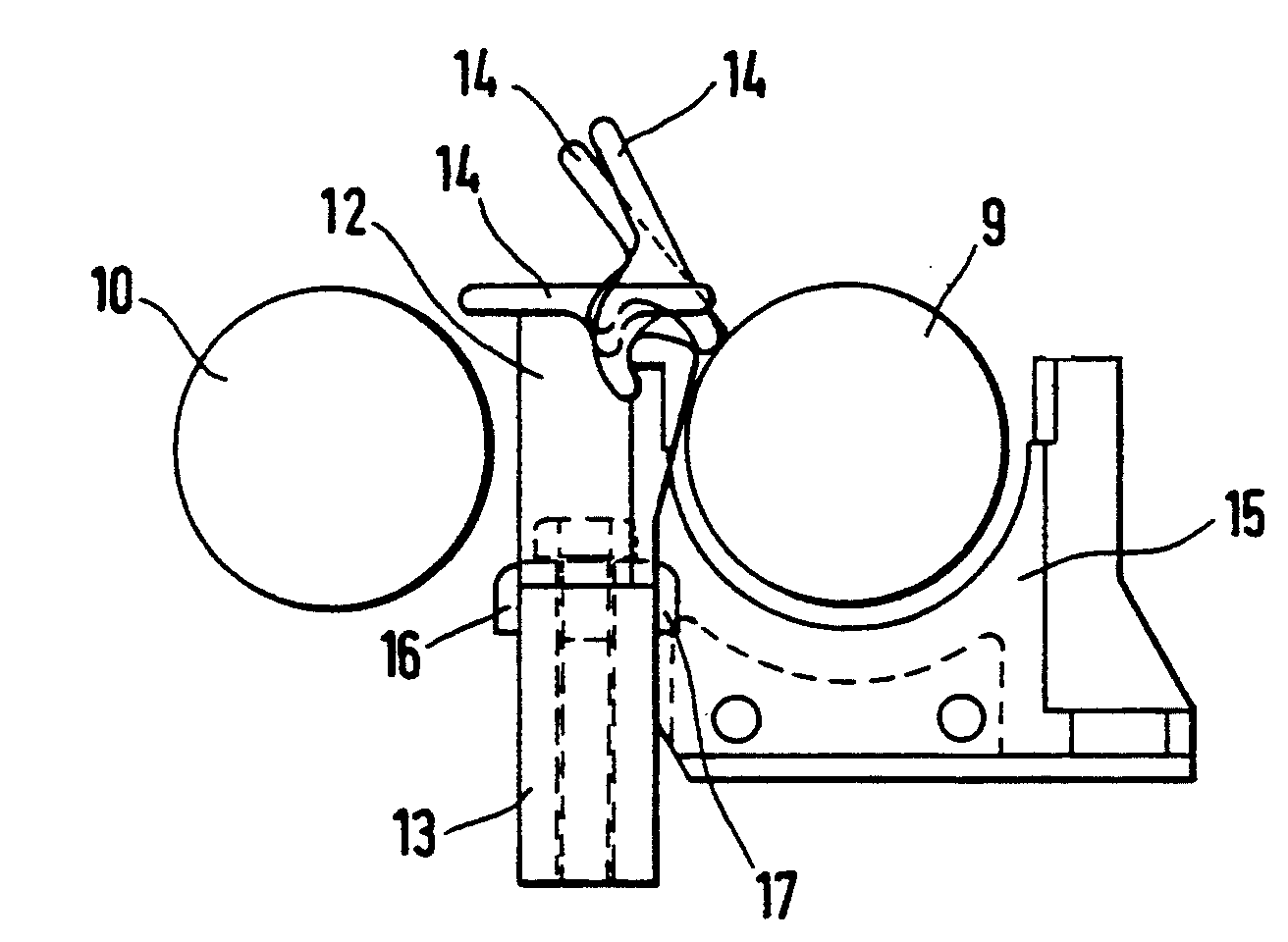

In order to avoid a damaging of the guiding table and of the bottom apron guided around it when a lap formation occurs on the bottom delivery roller of a drafting unit, it is known to arrange the table top of the guiding table so that it can be swivelled away. In this known construction, a leaf spring is provided which holds the table top in its swivel position. In order to ensure a secure and precise guiding during the swivel movement of the table top, the new apron table is constructed with a projection which is provided on both sides with opposite surfaces which are positively guided during a swivel movement of the table top in a receiving device developed as a connecting link guide.
First Claim
all claims..Other Claims data not available
