Stop brake for supply mandrel
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 24, 1994
Grant Date -
N/A
app pub date -
May 31, 1991
filing date -
May 31, 1991
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

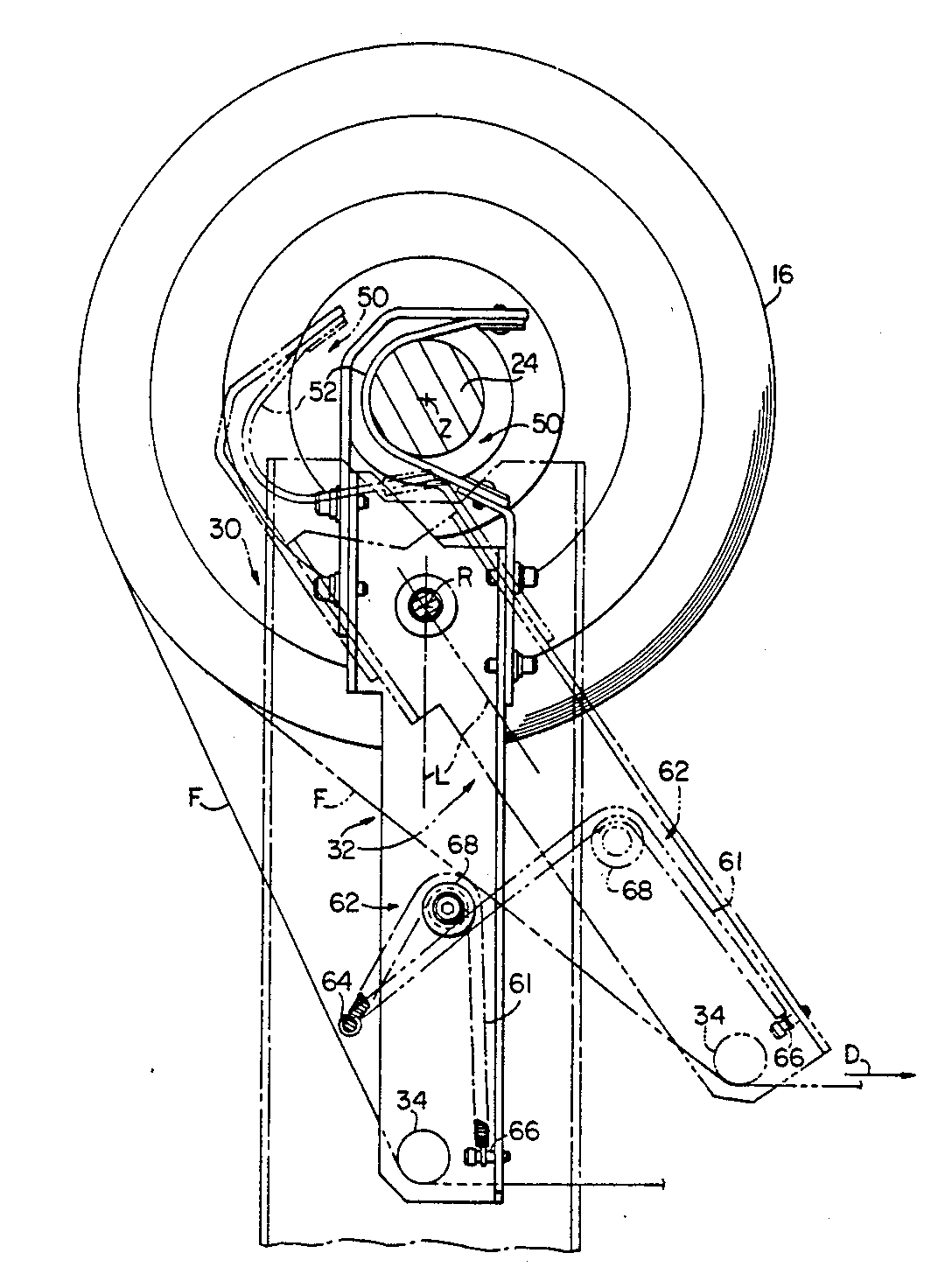

A stop brake for a supply roll mandrel includes at least one brake arm pivotally connected to a support and capable of being pivoted out of braking engagement with the mandrel in response to advancement of sheet material from a supply roll against the return bias of a spring element. The brake arm cooperates with sheet material which is caused to follow a path around a dancer bar secured to the lower end of the brake arm causing the disengagement of the brake. The brake is caused to cooperate with the outer surface of a mandrel upon which a supply roll is mounted through a intermediary of a strap which holds the mandrel surface against rotation when advancement of sheet material is stopped.
First Claim
Other Claims data not available
