Motor vehicle steering wheel
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 8, 1994
Grant Date -
N/A
app pub date -
Feb 18, 1992
filing date -
Feb 19, 1991
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

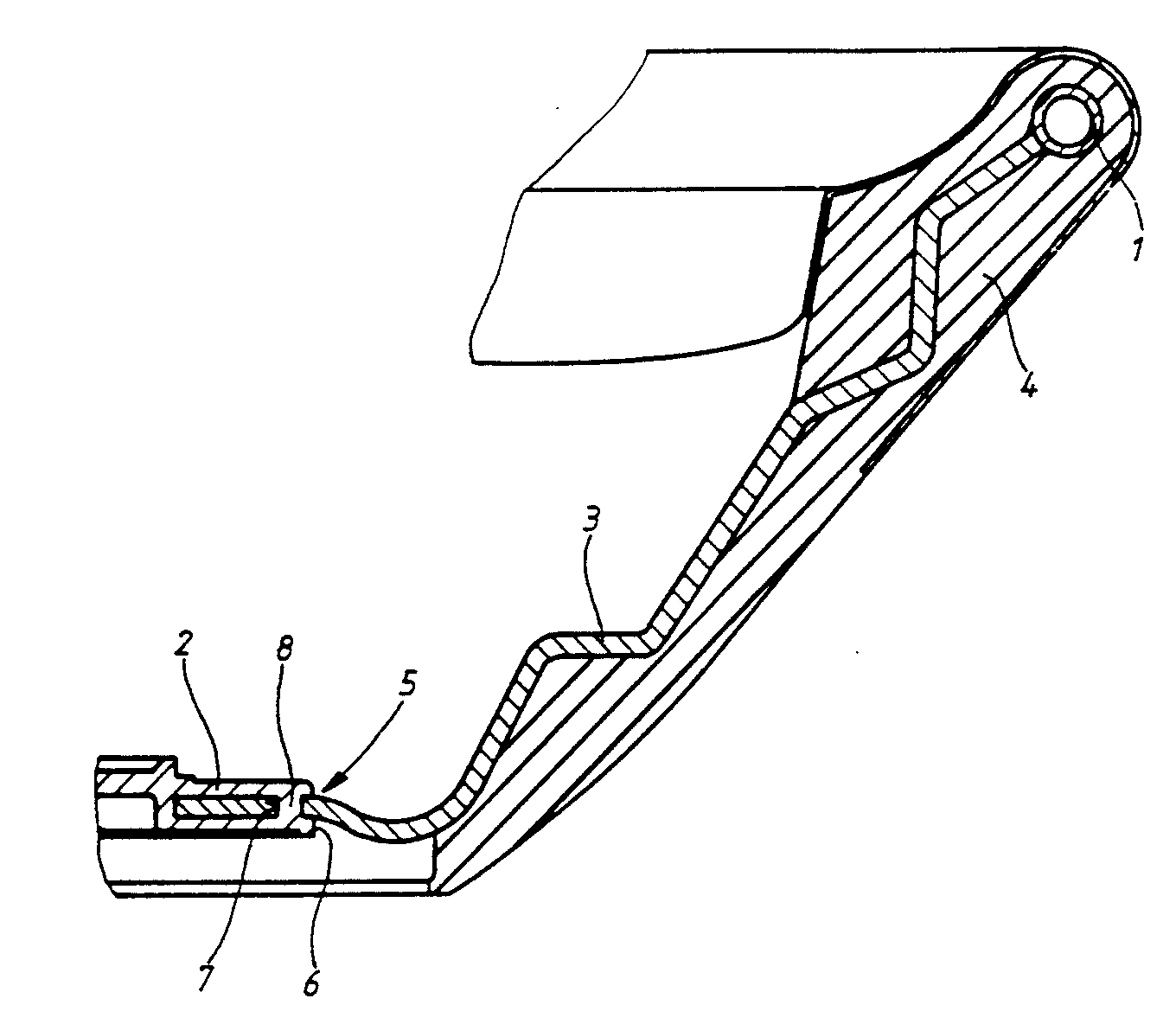

A motor vehicle steering wheel has flat steel deformable spokes which connect a steering-wheel rim to a hub to be mounted on a steering shaft. The associated free ends of the spokes are cast into the cast hub, and each spoke has in the cast-in area a passage bore which extends in the axial direction of the steering wheel and penetrated by the hub material during the casting process. In order to achieve an increase in rigidity in the hub/spokes connecting area, the passage bore is arranged directly adjacent to the entry area of the spoke into the hub, forming a rolling step, such that in this area a tension-rod connection is formed between the hub material located above and below the spoke.
