Heat exchange device for inducing cardioplegia
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 14, 1993
Grant Date -
N/A
app pub date -
May 8, 1992
filing date -
May 8, 1992
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

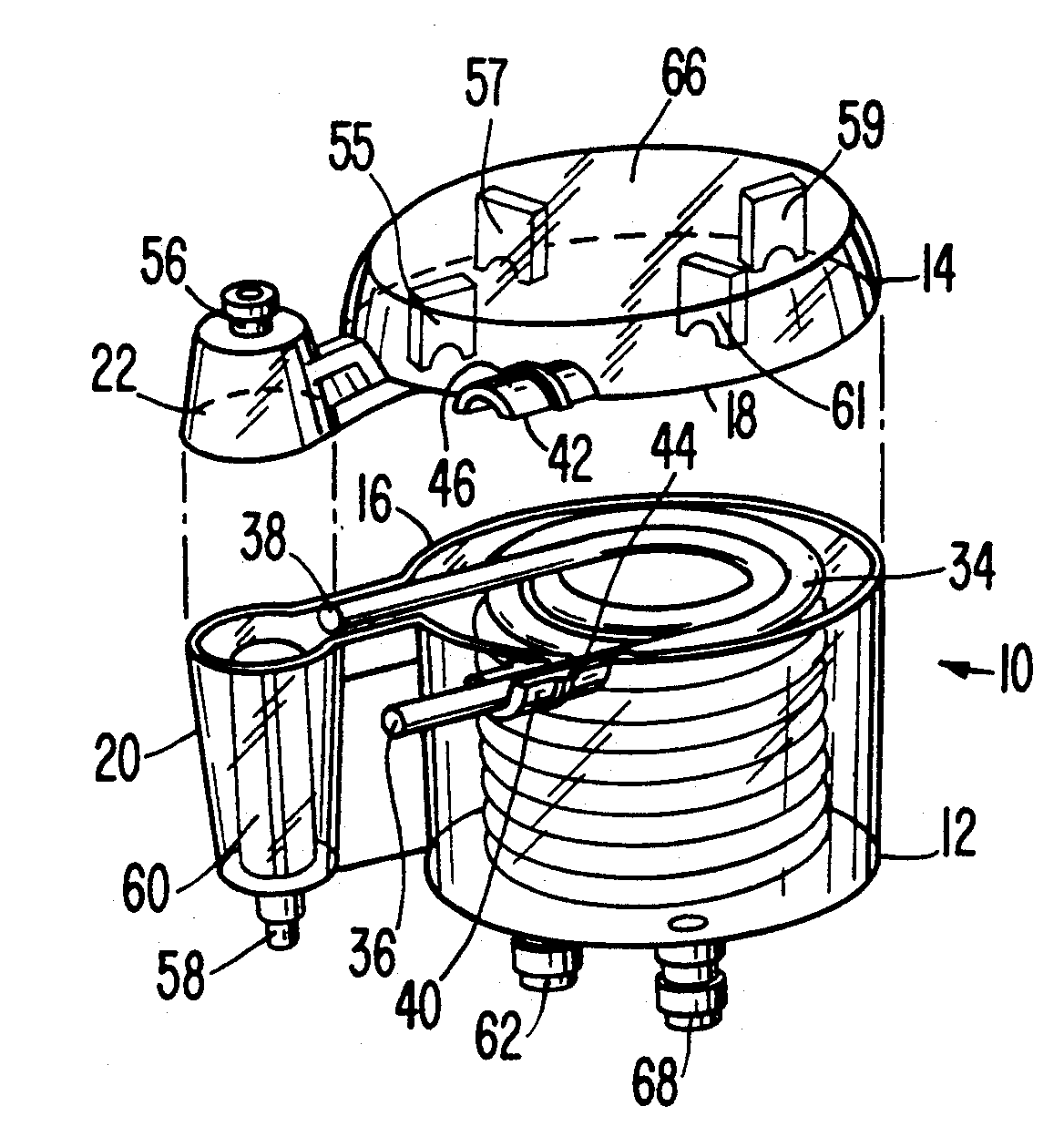

A heat exchange device includes a vessel having a top end and a bottom end, and having a first chamber located in the vessel and a second chamber located in the vessel and separated from the first chamber by a partition. An elongated tube for conveying liquid to be cooled is located in the second chamber and is arranged in a convolution. A port is connected to the first chamber for supplying coolant to that chamber, and a flow path extends between the first and second chambers for permitting fluid flow between the first and second chambers. The flow path is a space between the upper edge of the partition and the top end of the vessel, and the upper edge of the partition uniformly distributes coolant over the elongated tube. A port is located in the second chamber for evacuating coolant from the second chamber.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 119 Citation Count
- A61M Class
- 96.01 % this patent is cited more than
- 32 Age
