Autopilot system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 17, 1993
Issued Date -
N/A
app pub date -
Oct 29, 1992
filing date -
Dec 22, 1989
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

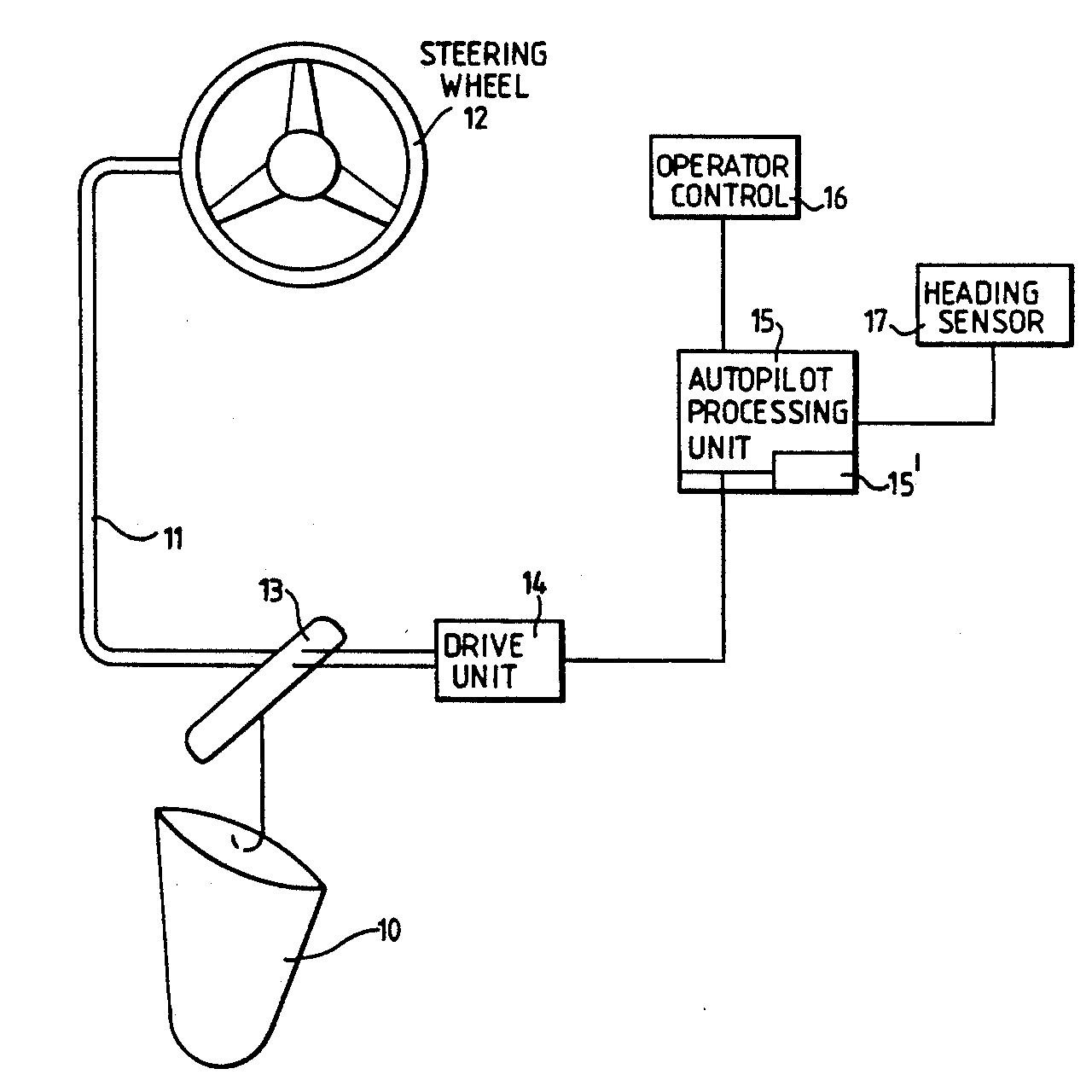

An autopilot system for a vessel such as a boat has an autopilot unit connected via a drive to the rudder or other direction determining means of the vessel. When the autopilot unit is operating normally, direction information from e.g. a heading sensor is processed by the autopilot unit and the drive is controlled by the autopilot unit to determine the appropriate position of the rudder. The rudder is also linked to a steering wheel or other manual steering arrangement. When the steering wheel is moved during normal operation of the autopilot unit, this causes an interference with the control of the rudder by the drive and, if this interference has sufficient magnitude and duration, this triggers override of the autopilot unit, returning the vessel to manual control via the steering wheel. The override may alternatively be triggered by detection of rudder movement by a sensor.
First Claim
Other Claims data not available
