Apparatus for drying and burning high-hydrous combustible solids
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 3, 1993
Issued Date -
N/A
app pub date -
Aug 25, 1992
filing date -
Mar 30, 1989
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

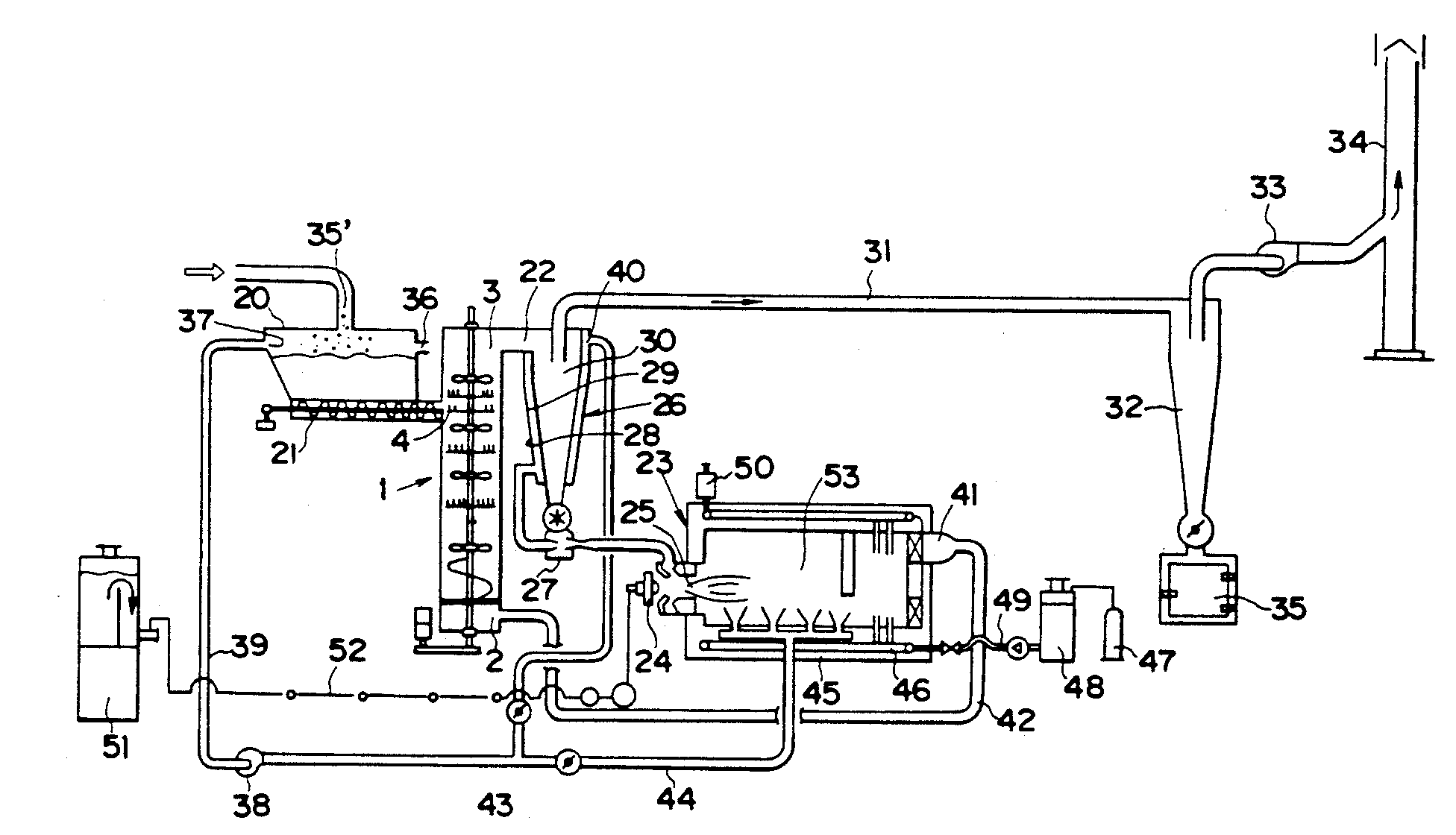

This invention is an apparatus for drying and burning high-hydrous combustible solids comprising: a hopper for containing high-hydrous combustible solids; a drier for drying said high-hydrous combustible solids when transported from said hopper to said drier 1; a combustion chamber for receiving and burning dried solid from a transportation tube; and a means to lead the waste gas from said combustion chamber to said drier to be used as drying gas. High-hydrous combustible solids are transported to furnace the combustion chamber immediately after being dried in the drier, and the waste gas from the combustion chamber is used as drying gas in the drier.
First Claim
Other Claims data not available
