Termination assembly with improved waterblock
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 2, 1993
Grant Date -
N/A
app pub date -
Nov 19, 1990
filing date -
Nov 19, 1990
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

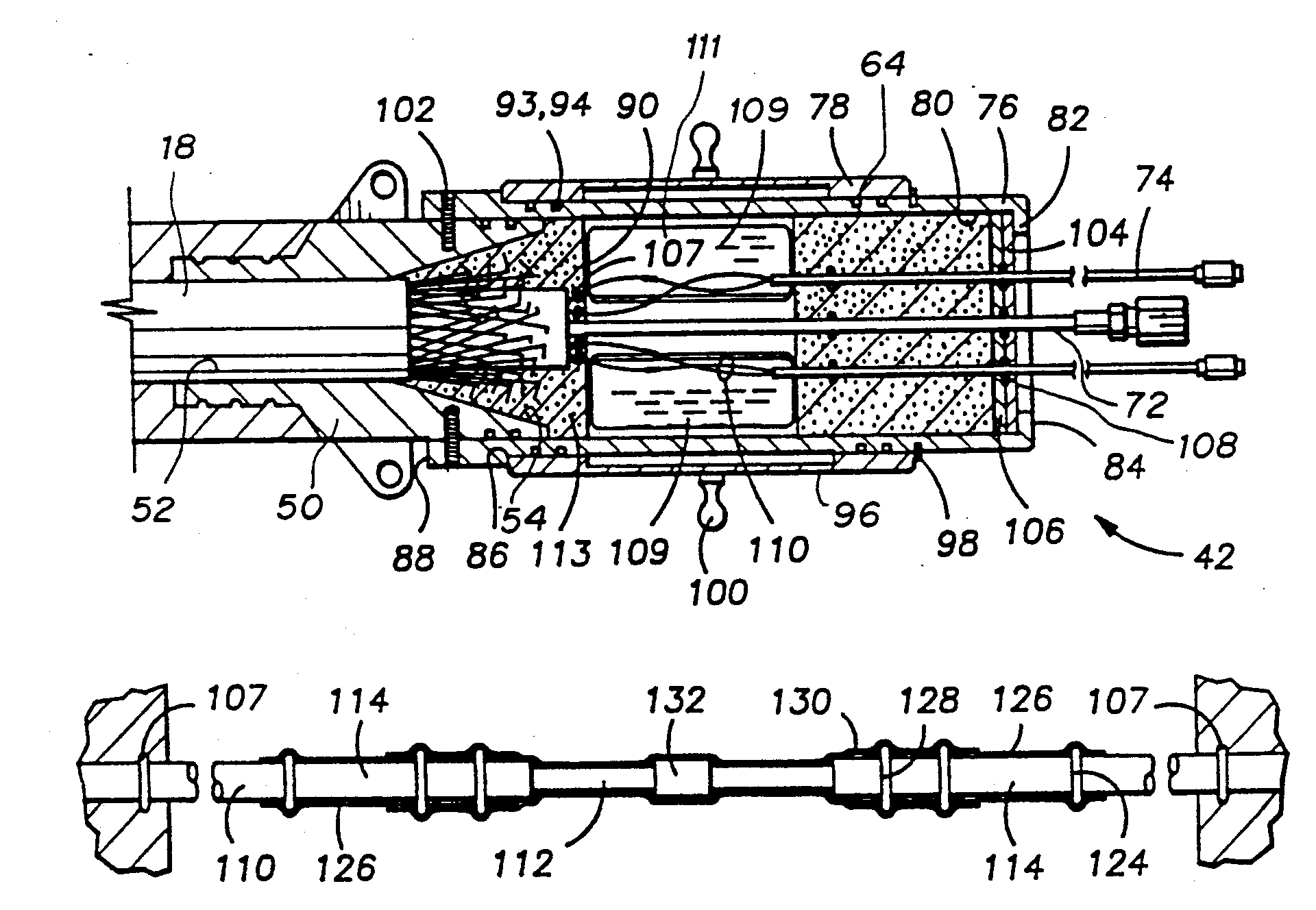

A termination assembly is disclosed providing a substantially watertight, yet field serviceable interface to a plurality of electrical splices. The termination assembly includes a housing having an anchor portion for receiving and fixing a multi-transmission line cable therein, a ported sleeve for cradling the transmission lines, and a shell for providing field access to the splices between the transmission line in the interior of the housing. A resinous epoxy, together with O-ring seals and heat shrink tubing provide redundant protection against the invasion of water into the housing along the transmission lines.
First Claim
Other Claims data not available
