Coin sorter and dispenser
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 21, 1992
Grant Date -
N/A
app pub date -
May 19, 1989
filing date -
May 19, 1989
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

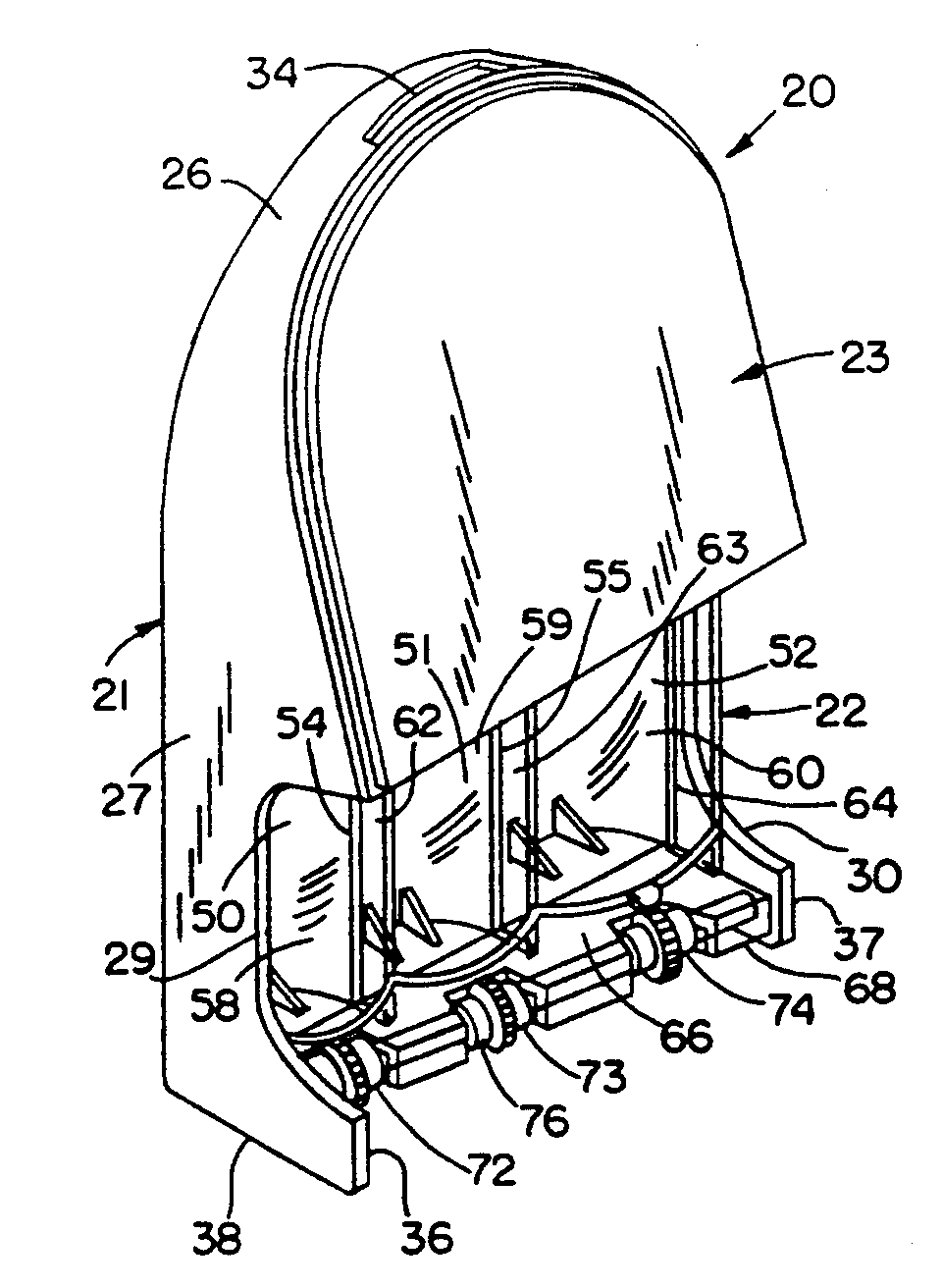

A coin sorter and dispenser includes side-by-side vertical coin chambers for sorted coins. The stacks of coins are supported on respective friction wheels which are exposed at the bottom so that a user may engage the bottom of a selected wheel and rotate it so that the top of the wheel slides the lowermost coin in a stack through an exit clearance to drop into the hand of the user. The friction wheels engage the stacks near the front edge and the rear edge of the stack is supported on sloping ramps to ensure that the lowermost coin slides forwardly through the clearance. Coins are fed through a top slot to be size sorted into the respective chambers. The sorter is formed of injection molded snap together front and back parts with a snap-on cover plate over the slightly inclined upper sorting portion of the front part. The front part is transparent so the number of coins in each chamber may be seen. When the front and rear parts snap together they capture along the front lower edge a shaft on which the friction wheels are mounted for rotation. The rear of the back part may be provided with a magnetic pad or tape so that the coin sorter and dispenser may be mounted on a refrigerator door or wall at a convenient height.
