Arrangement of a tensioning wheel of multi-part construction for a tracked vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 31, 1992
Grant Date -
N/A
app pub date -
Jun 21, 1990
filing date -
Jul 3, 1989
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

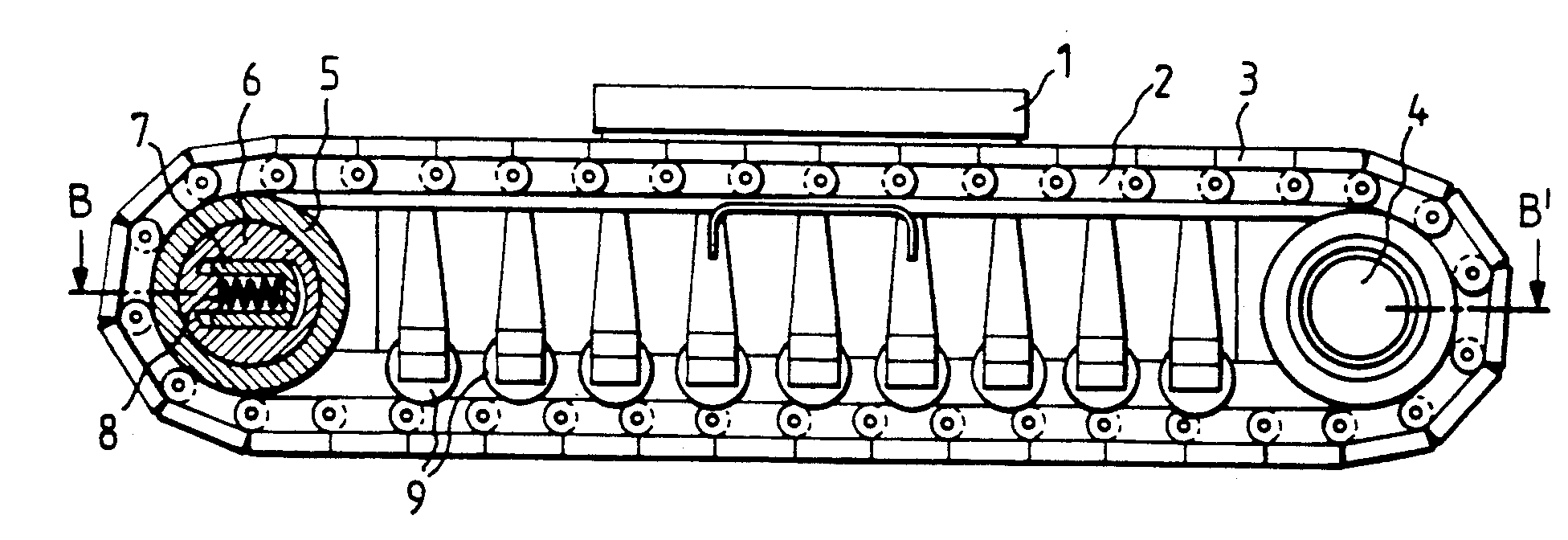

A system of a tensioning wheel of multi-part construction for a tracked vehicle and a mounting for the wheel includes (a) a support body on the lateral vehicle superstructure, (b) an idler-wheel carrier which partially surrounds the support body and is displaceable in the longitudinal direction of the vehicle, and (c) an idler wheel which is rotatable around the idler-wheel carrier. Furthermore, a connecting member is guided from the idler-wheel carrier through the wall of the support body, which is made partially hollow as a cavity in the transverse direction of the vehicle, to an adjusting element disposed in the cavity.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B62D Class
- 0 % this patent is cited more than
- 33 Age
