Soldering iron for surface mounted components
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 19, 1991
Issued Date -
N/A
app pub date -
Apr 10, 1989
filing date -
Jan 2, 1987
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

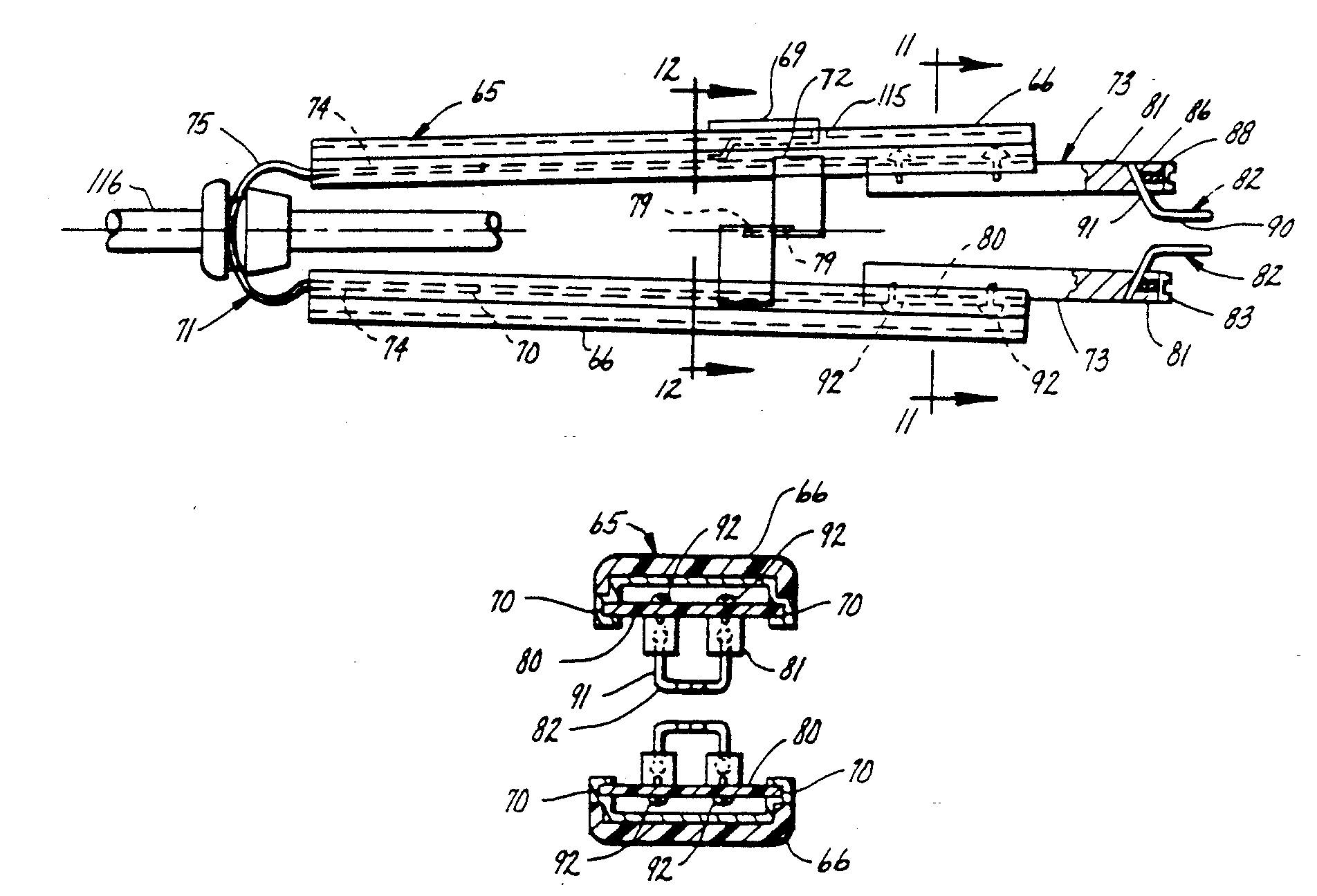

An electrically heated soldering iron which is particularly adapted for surface mounting components on printed circuit boards. A unitary member rotatably joins together a pair of channel-shaped arms and resiliently biases the arms in a normally open position which is defined by a pair of overlapping members in the center portion of the iron. The arms are selectively moveable by a user toward each other to a closed position and the channel portions of the arms are adapted to retain the unitary member, the pair of overlapping members, and detachable assemblies of U-shaped soldering tips for applying heat to surface mounted electronic components. The U-shaped soldering tips are comprised of dissimilar conductors joined together to unitarily provide a soldering tip, heating element for heating the tip and a thermocouple for sensing the temperature of the tip.
