Traffic control element and method of erecting and stabilizing same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 25, 1991
Grant Date -
N/A
app pub date -
Nov 29, 1989
filing date -
Nov 29, 1989
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

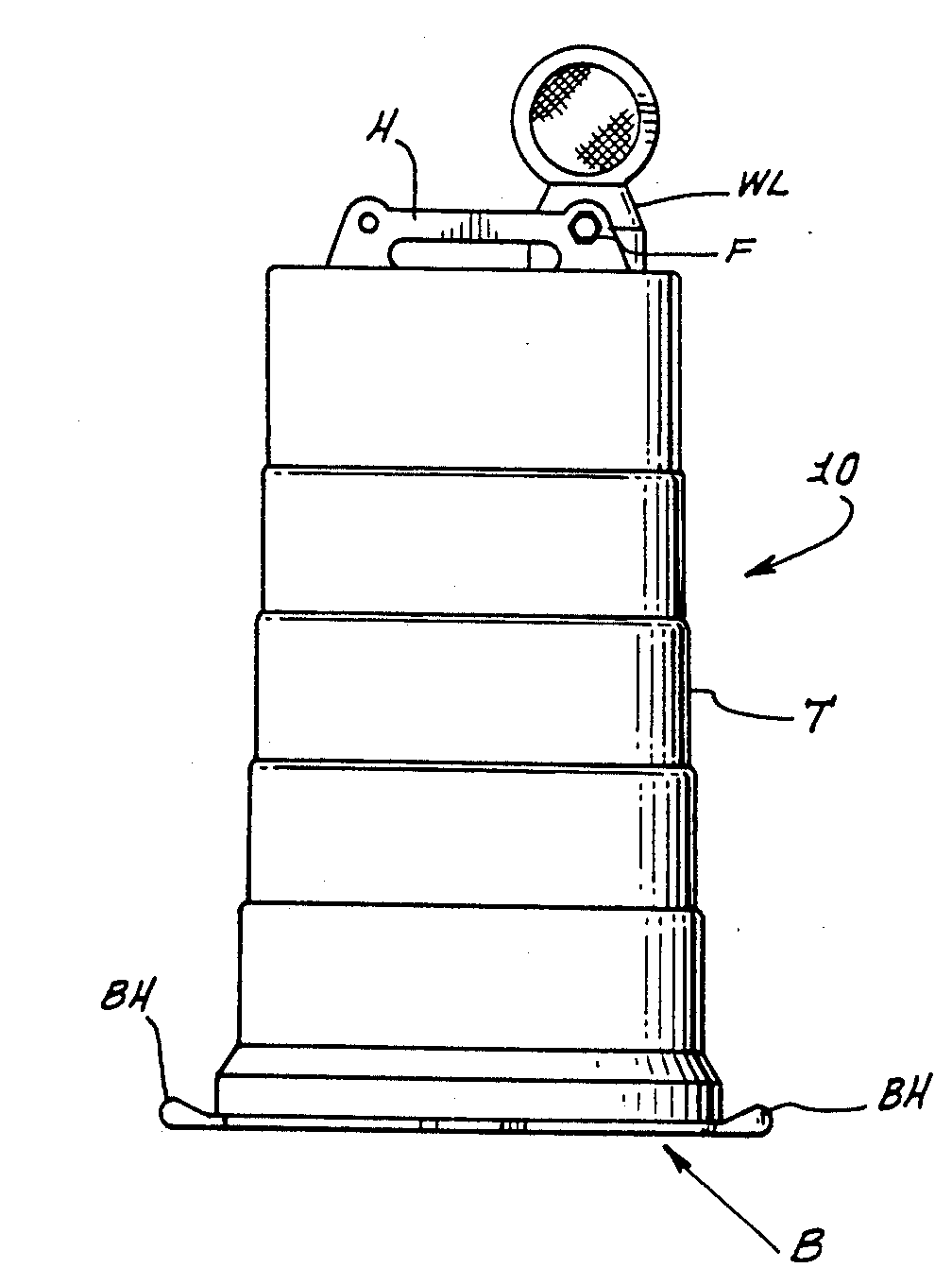

A two-piece, detachable traffic channelization element having an improved base element. The base element has a low profile, dome-like configuration with a ballast storage chamber. The storage chamber may be completely filled with a sand ballast and sealed in its storage condition by a cover secured to the chamber. The base element is molded of a resilient crush resistant plastic so that when it is fully ballasted, need not be ballasted again, and which low profile base can be traveled over by motor vehicles without engaging the base. The detached base, filled with ballast, can be continuously traveled on by motor vehicles, including loaded trucks, without damaging the base element and rendering it useless and the need to be replaced.
First Claim
Other Claims data not available
