Resilient rail fastener
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 21, 1991
Grant Date -
N/A
app pub date -
Jan 16, 1990
filing date -
Jan 16, 1990
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

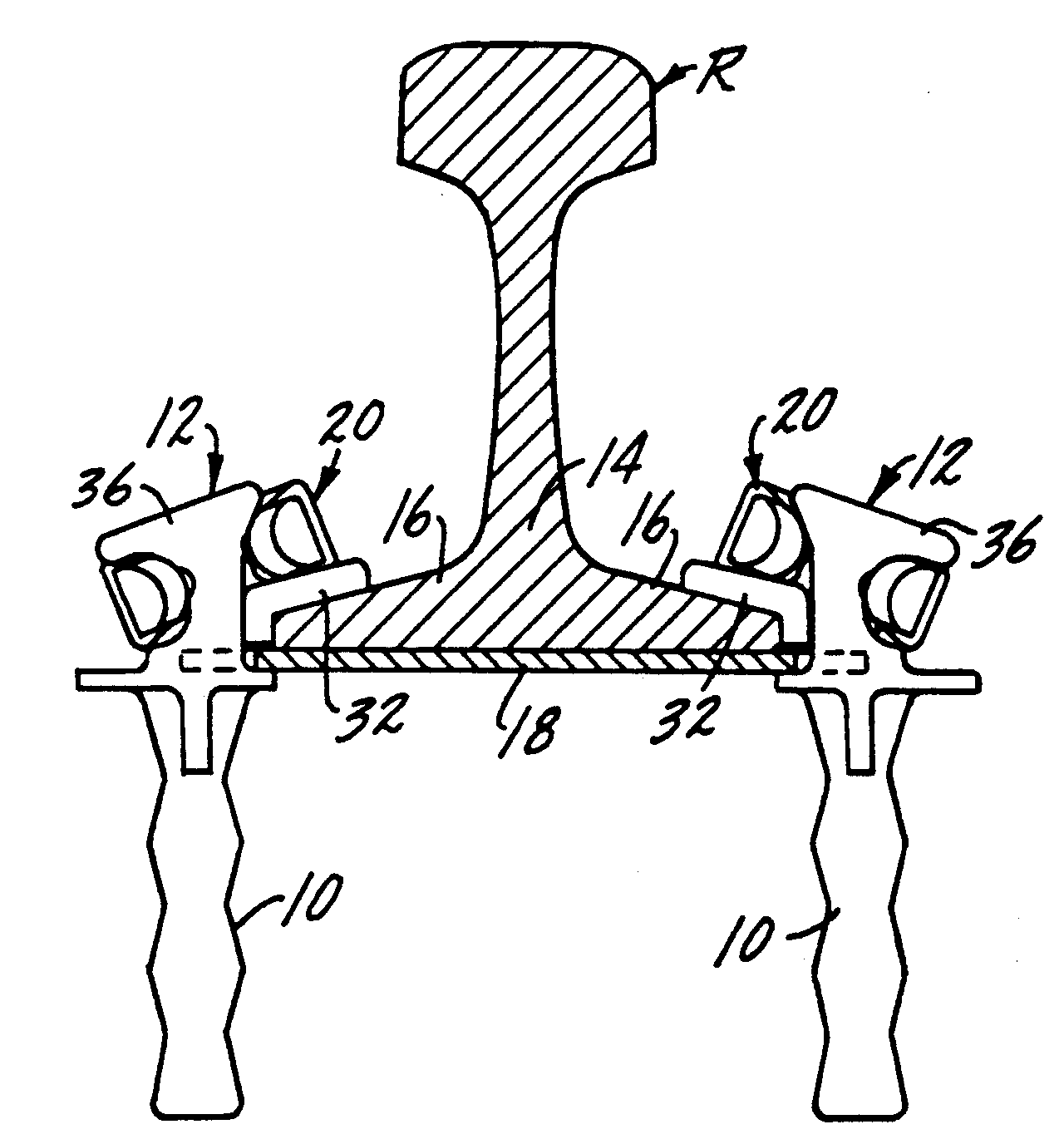

Resilient railroad fastener system comprising an elongated shoulder member and spring clip to be so applied and combined with the shoulder member as to create a toe load applied downward to the rail; the shoulder member having a reaction surface to be engaged at a first angle by one arm of the spring clip and the shoulder member being configured with a capturing surface to capture the other spring arm while cocking the spring clip at an angle to the horizontal when the spring clip is applied to the shoulder member; whereby when installed the spring clip has a toe load impressed thereon which is the vector sum of the clip load and shoulder reaction.
First Claim
Other Claims data not available
