Pre-sewn letter and method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 23, 1991
Grant Date -
N/A
app pub date -
Jan 18, 1990
filing date -
Oct 21, 1988
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

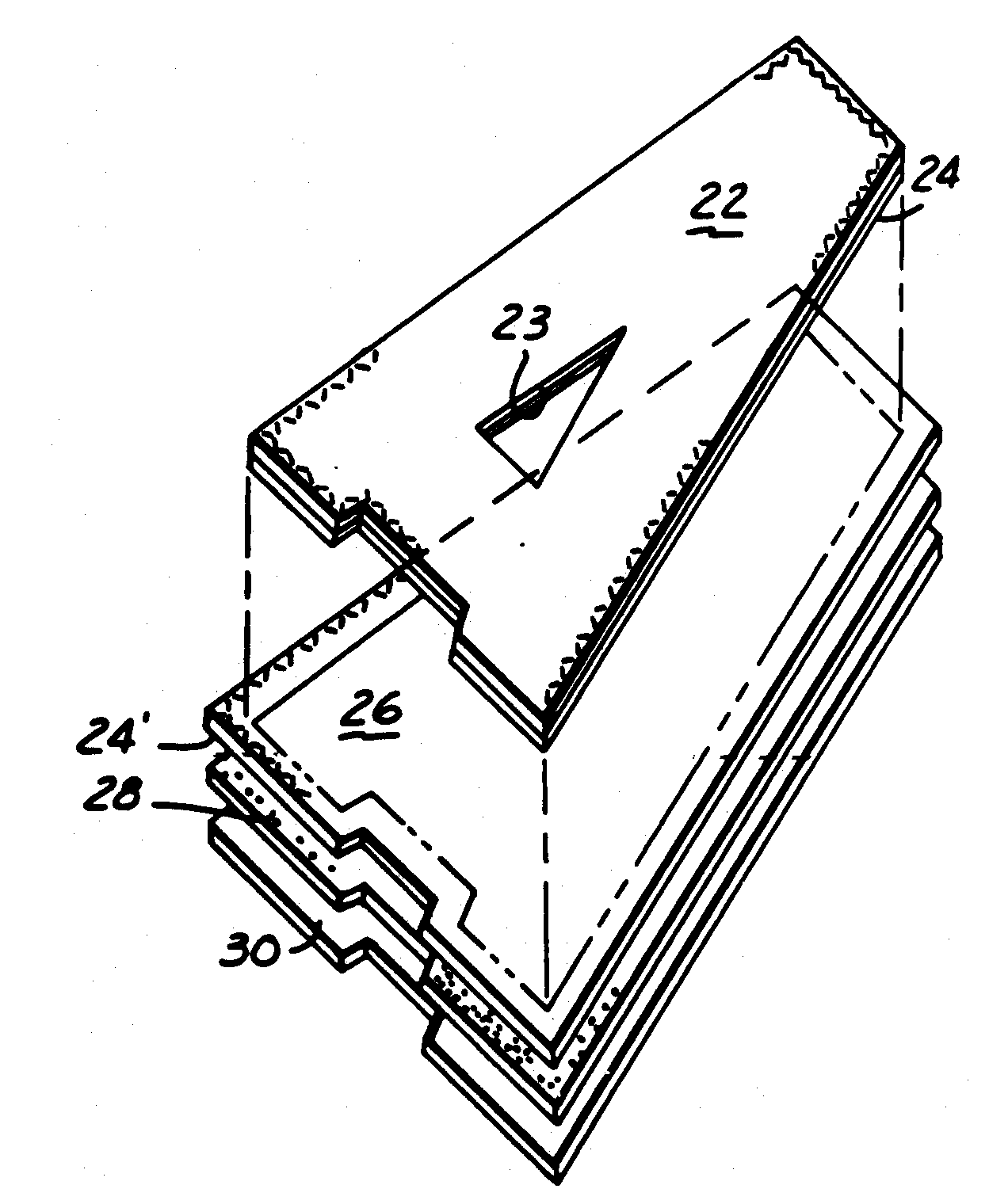

An improved method for producing a multi-colored emblem which may be bonded to a fabric is disclosed which provides and emblem with an embroidered appearance. The emblem is easily heat sealable onto difficult to adhere fabrics. The method generally involves providing a first woven material blank, providing a barrier layer of thermoplastic material, laminating the barrier layer onto one side of said material blank to form an assembly, cutting said assembly to a specific configuration, sewing a thread about the periphery of the cut assembly, and laminating said assembly onto a second woven material blank having a different color. This second assembly is again cut to a complimentary larger configuration and also provided with a thread about the periphery. The two material blanks are then heat sealed together and an adhesive layer is provided to the exposed barrier layer.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 28 Citation Count
- B32B Class
- 0 % this patent is cited more than
- 34 Age
