High current gate turn-off thyristor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 2, 1991
Issued Date -
N/A
app pub date -
Apr 6, 1989
filing date -
Apr 6, 1989
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

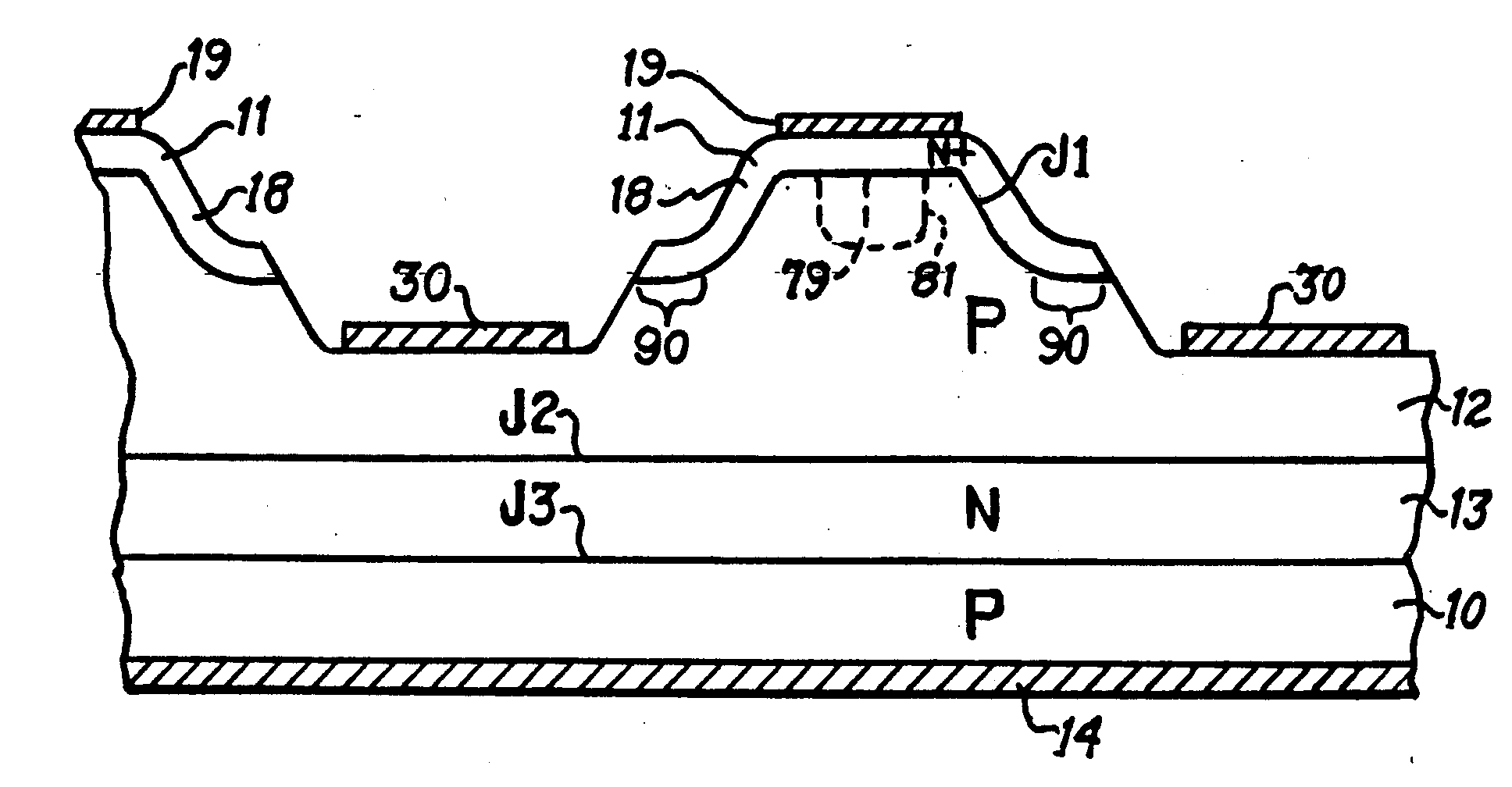

This GTO thyristor comprises: (i) a cathode layer that is divided into a large number of cathode-layer fingers, (ii) a gate layer contiguous with the fingers, with a PN junction J1 between each finger and the gate layer, (iii) a cathode electrode on each finger, and (iv) a gate electrode on the gate layer having portions surrounding the fingers disposed in spaced relation to the fingers. Turn-off of the GTO thyristor is effected by forcing a turn-off current to flow between the cathode electrode of each finger and the gate electrode through the associated PN junction J1. This PN junction at each finger has a centrally-located region that is characterized by an avalanche voltage that is substantially lower than the avalanche voltage that characterizes this junction in the region of the junction surrounding the centrally-located region, and this relatively lower avalanche voltage enhances the current turn-off capabilities of the GTO thyristor.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- H01L Class
- 0 % this patent is cited more than
- 34 Age
