Burner apparatus for providing adjustable flame geometry
Number of patents in Portfolio can not be more than 2000
United States of America Design
Stats
-
Dec 11, 1990
Grant Date -
N/A
app pub date -
Jul 9, 1986
filing date -
Jul 9, 1986
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

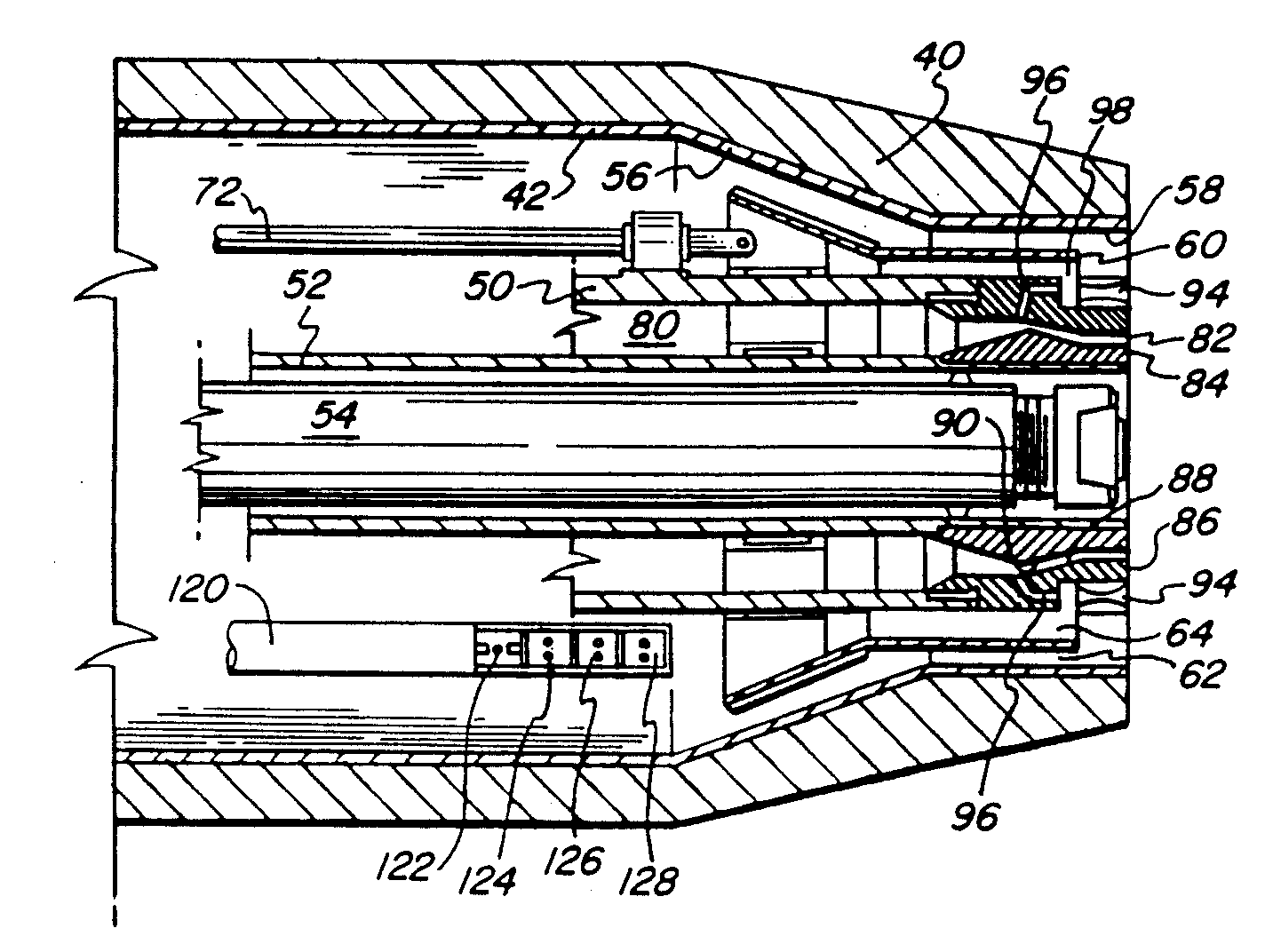

A burner apparatus having particular advantage for use with rotary kilns of the type used to process cement, lime, and the like, provides adjustable flame geometry and location within the combustion zone. Either gaseous or liquid fuels can be fired with highly selective heat flux as required for processing. Air and gaseous fuel injection means are controllable to vary the velocity of injection and thereby alter flame geometry. This is achieved by disposing an axially-adjustable control baffle in a crossectional area of changing transition section formed by coaxial members, between which an air supply conduit is formed. The control baffle is cylindrical and fits in and moves within the air supply conduit. The transition section has frustoconical surfaces opposite frustoconical surfaces on the control baffle so that different gaseous mass flow can be regulated around a central flame resulting in an adjustable flame geometry.
First Claim
Other Claims data not available
