Circular knitting machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 26, 1989
Grant Date -
N/A
app pub date -
May 27, 1988
filing date -
Jun 4, 1987
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

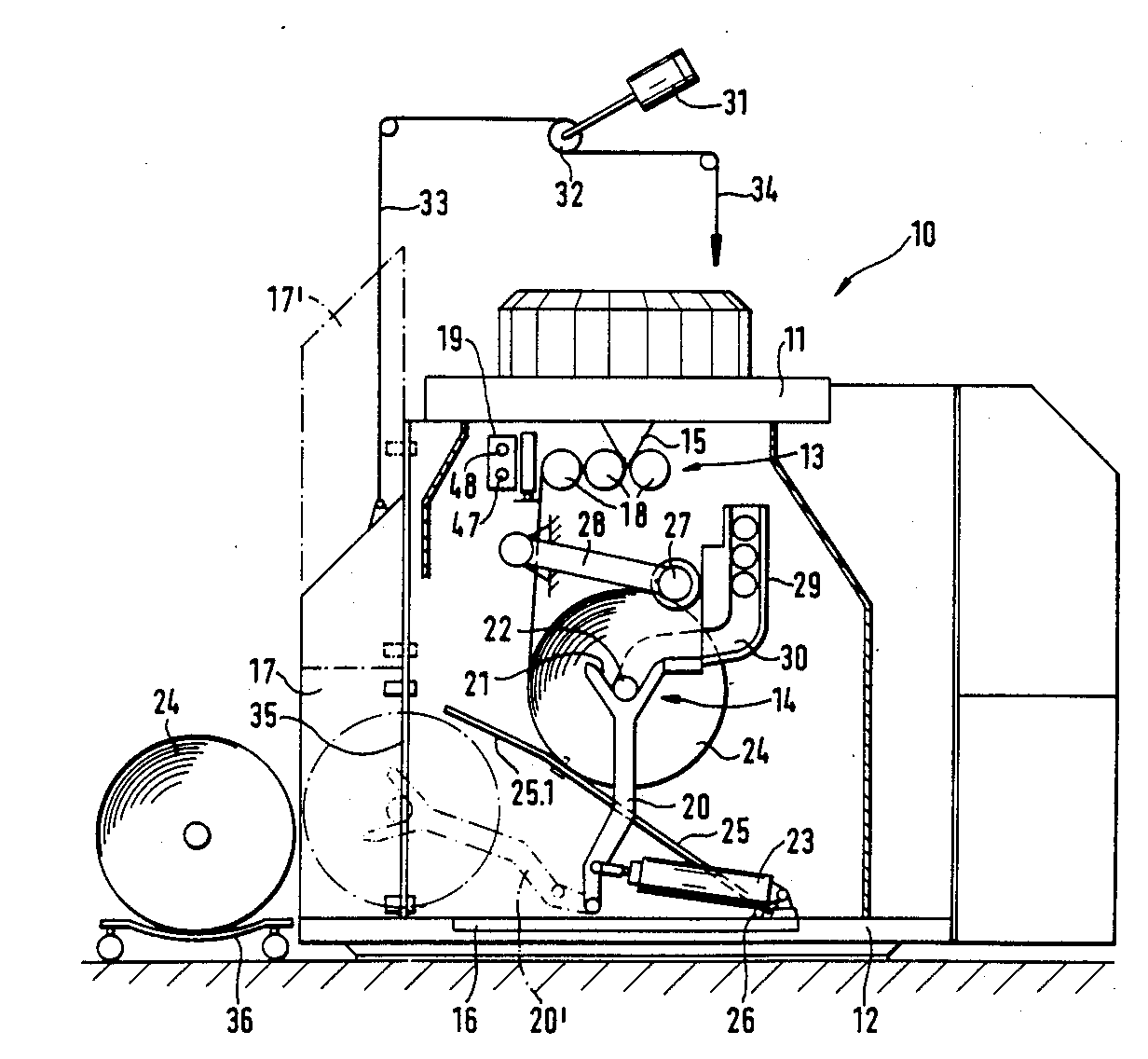

A circular knitting machine has a rotatable needle cylinder, a supporting plate rotating synchronously with the needle cylinder, and a product drawing off and winding device. The device includes a roll bar arranged to support a product roll and provided with a bearing part which is displaceable for arranging a finished product roll, a roll bar magazine for supplying roll bars to the bearing part, a drawing off roller, a cutting unit movable substantially parallel to the drawing off roller, a drive unit for driving the roll bar and having a drive shaft which abuts against a product roll and turns parallel thereto. The bearing part has a bearing support which is turnable for ejecting a product roll and has an open fork-shaped bearing trough supporting ends of the roll bar. A guiding element is articulately connected with the supporting plate and extends inclinedly downwardly til over the roll bar outwardly. The guiding element extends over a whole width of a product roll and abuts with a pre-stress against the latter. It is freely turnable til the supporting plate.
