Color filter for a solid state imaging device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 21, 1989
Issued Date -
N/A
app pub date -
Jun 8, 1988
filing date -
Jun 29, 1981
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

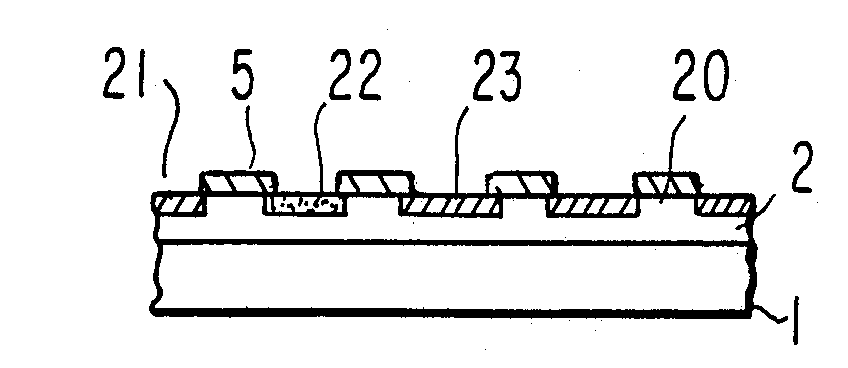

A color filter, particularly a color filter for a solid state imaging device, comprising a dyeable resin layer, a plurality of variously colored dyed-areas formed in the dyeable resin layer, a plurality of non-dyed areas separating the dyed area from each other in the dyeable resin layer, and a plurality of photo-interception areas formed on the non-dyed areas is disclosed. The dyed areas are generally separated from each other by a distance greater than the diffusion length generated during dyeing or heat treatment. The dyed areas can also be spread under the photo-interception areas by a distance substantially equal to the diffusion length generated during dyeing or heat treatment.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- H04N Class
- 0 % this patent is cited more than
- 36 Age
