Decap dispensing system for water cooler bottles
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 17, 1989
Grant Date -
N/A
app pub date -
Sep 30, 1988
filing date -
Sep 30, 1988
priority date (Note) -
Expired
status (Latency Note)
Importance

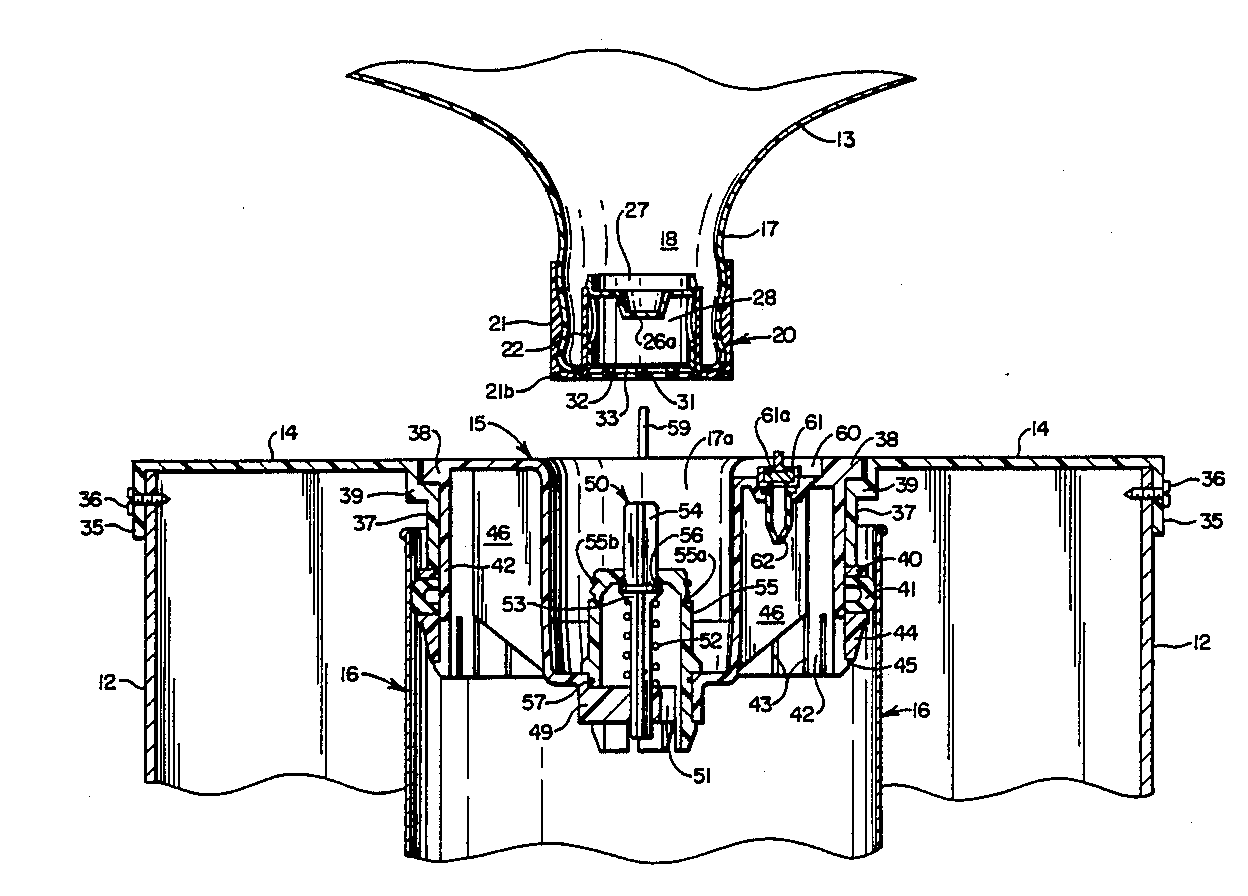

Abstract
A system for supplying liquid in large bottles from a point where they are filled to a dispenser having a reservoir for receiving the liquid. The bottles each have a neck which carries a cap unit for closing the spout thereof. Each cap unit has an outlet valve that is normally closed. The reservoir has means for supporting another normally closed inlet valve in a neck-receiving socket. When the neck is slipped into the socket the outlet valve of the cap unit is opened and substantially simultaneously the inlet valve for the reservoir is opened thus allowing flow of water form the bottle into the reservoir. When the bottle is removed from the reservoir as the cap unit is withdrawn from the neck-receiving socket, the outlet valve in the bottle neck cap unit is positively closed and the inlet valve of the reservoir automatically closes.
First Claim
Other Claims data not available
