Collapsible seating system with automatically folding seats
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 25, 1989
Issued Date -
N/A
app pub date -
Jan 23, 1987
filing date -
Aug 14, 1985
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

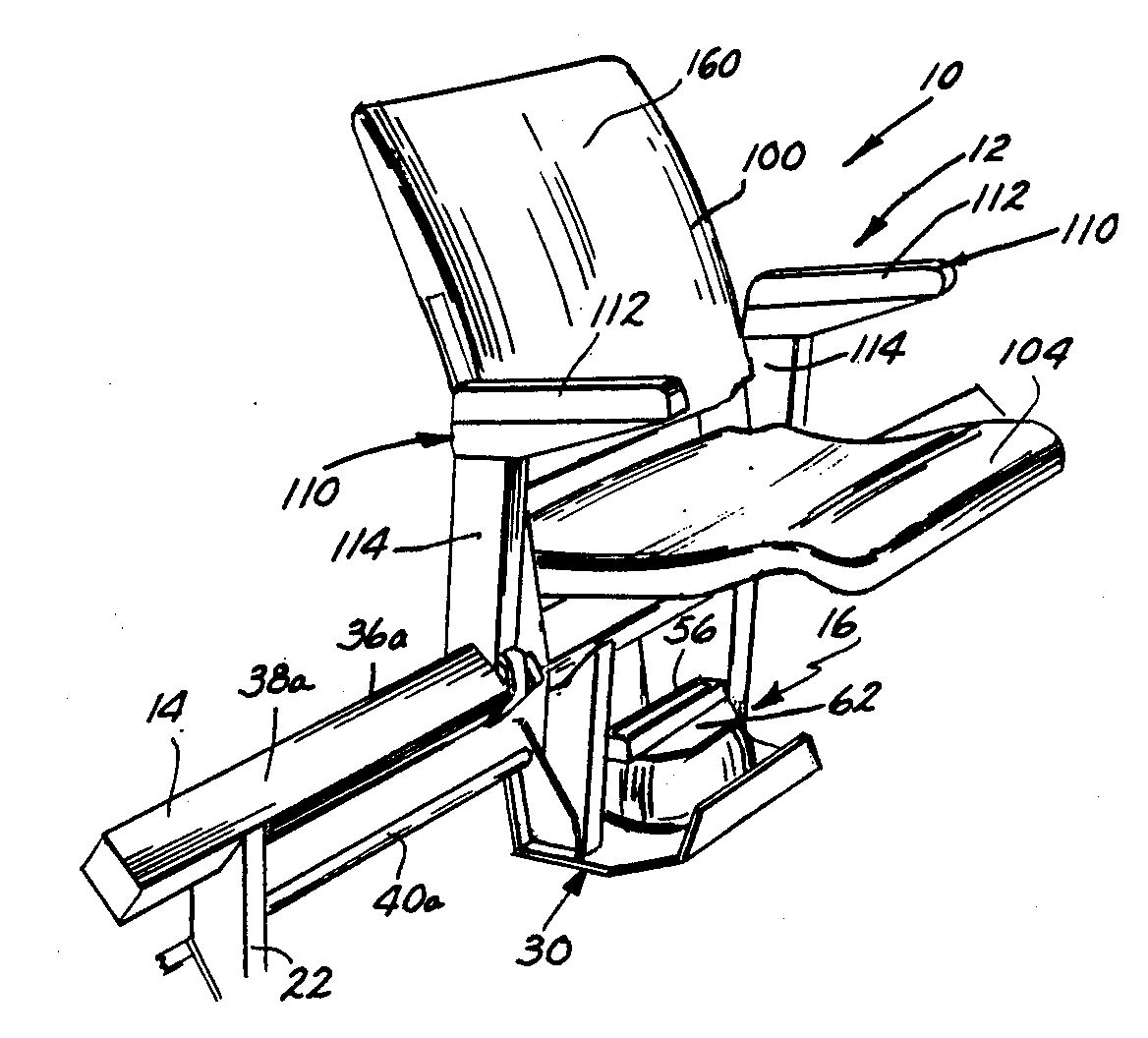

Seating for a telescoping row system or the like is mounted to a beam pivotally secured to a base anchored to the platform and riser. The beam is raised arcuately into a use position by a pneumatic bellows and is mechanically locked in the upright position to permit deenergization of the bellows. Reinflation of the bellows disengages the lock and the assembly collapses slowly against the controlled deflation of the bellows. The seat is positionable on the beam initially without fasteners to facilitate installation. In similar fashion, armrests are secured to the beam separate from the seat and adjustable along the beam to permit overall width variations.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 37 Citation Count
- E04H Class
- 0 % this patent is cited more than
- 36 Age
