Means of regulating an agitator mill
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 18, 1989
Issued Date -
N/A
app pub date -
Sep 15, 1988
filing date -
May 2, 1986
priority date (Note) -
Expired
status (Latency Note)
Importance
Abstract

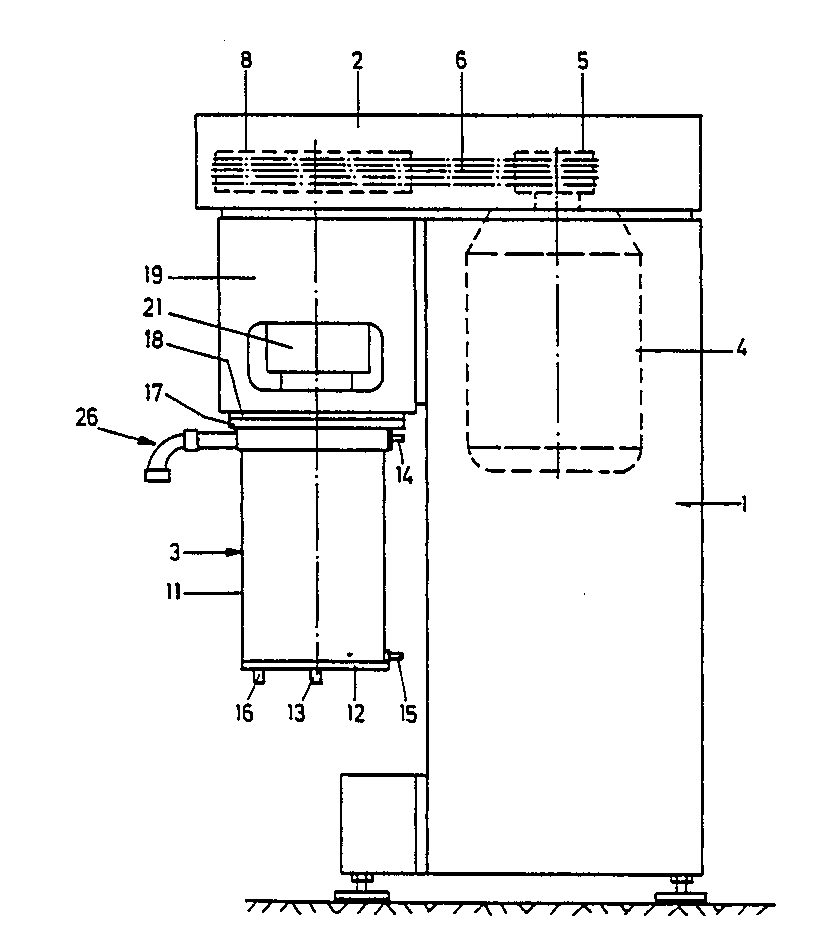

An apparatus for regulating an agitator mill for comminution, deagglomeration and dispersion of grinding stock present in the form of a suspension is provided. To attain a constantly uniform grinding stock fineness, a device is provided for keeping the specific energy input constant, the specific energy input being determined by the quotient of the power introduced into the grinding stock and the grinding stock mass flow. A device is also provided for detecting the distribution of the auxiliary grinding bodies in the grinding chamber. The distribution of the auxiliary grinding bodies can be determined by detecting the pressure drop in the grinding chamber. Further, the distribution of the auxiliary grinding bodies can be detected by means of at least two partial cooling chambers connected parallel to one another, with individual heat flows being detected via the partial cooling chambers.
First Claim
Other Claims data not available
