Take-away device for tubing foils
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 6, 1989
Grant Date -
N/A
app pub date -
May 26, 1988
filing date -
May 27, 1987
priority date (Note) -
Expired
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

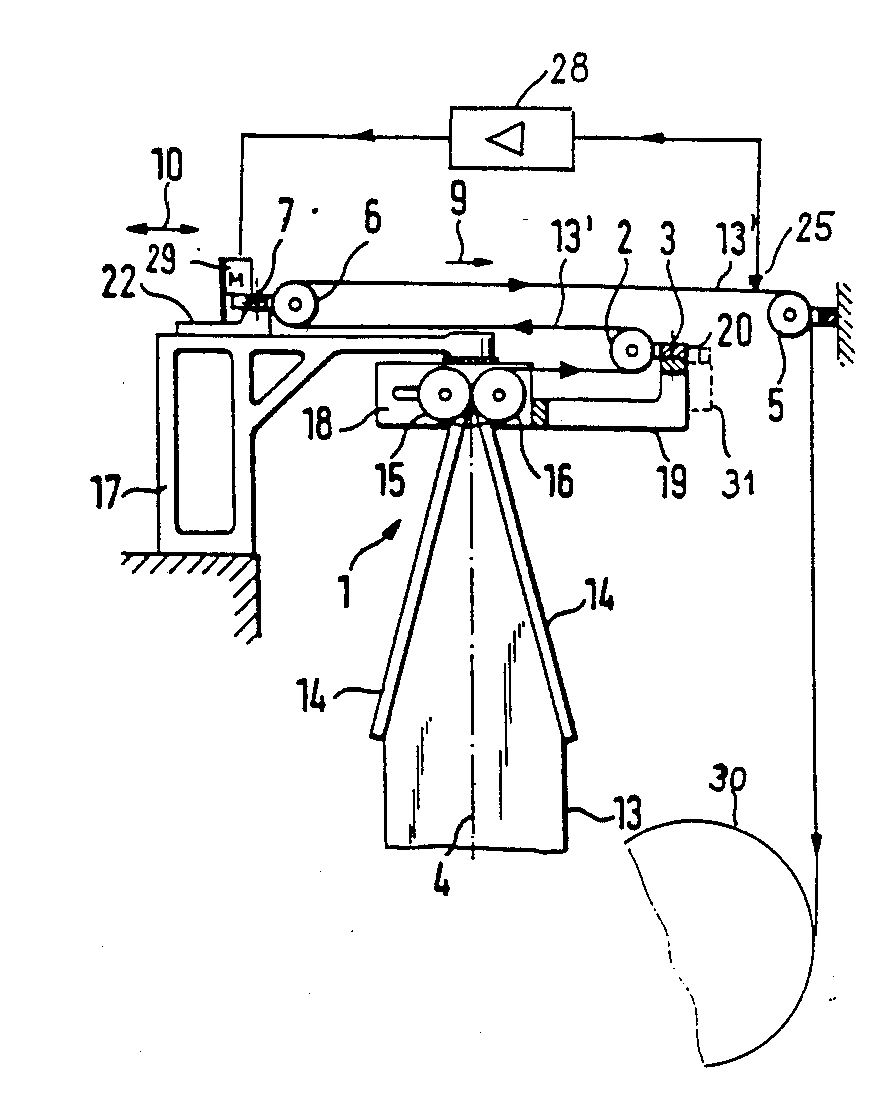

A take-away device for a flattened tubing foil forming machine having an improved foil edge position control. The take-away device for tubing foil is formed by an extruder with a tubing blow head carrying out a blowing process. The tubing foil is flattened between a pair of squeeze rollers, which pair of rollers can reversingly turn about a vertical axis of rotation. At least two turning rods are disposed following the squeeze rollers. The turning rods are pivotable about at least one vertical axis, and have, if necessary, at least one deflecting rod. The rods are pivoted by a frame member about a horizontal axis of rotation. A winding-up device receives the flattened tubing foil from the turning rod. A measuring instrument is disposed between the final turning rod from which the tubing foil is guided to the wind-up device, and the wind-up device. The measuring instrument determines the flow position of the edge of the tubing foil and, when the flow position of the edge deviates from a normal flow position, produces a measurement signal which is dependent on the deviation. The signal is conducted to a control means which converts the measurement signal into a control signal. A frame member supporting at least one rod is connected to a servomotor for receiving the control signal for turning the frame member about a pivot having a vertical axis of rotation, in response to the control signal.
