Electrostatic ion accelerator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 14, 1989
Issued Date -
N/A
app pub date -
Jul 20, 1987
filing date -
Apr 30, 1986
priority date (Note) -
Expired
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

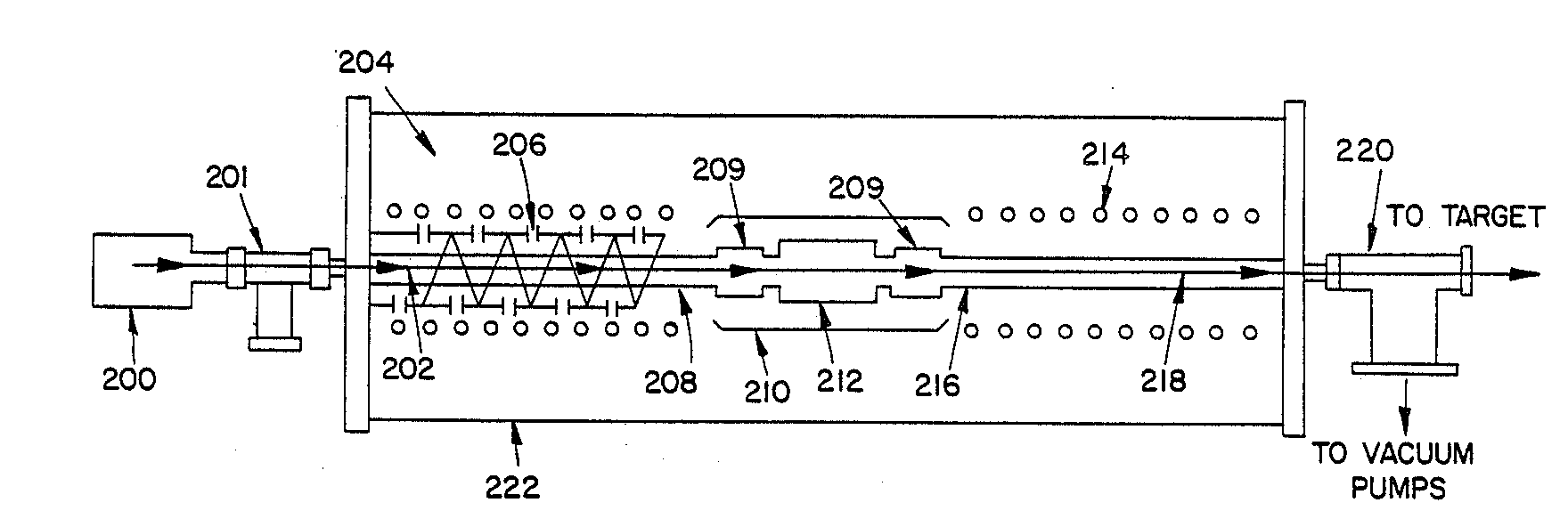

A high current (0.2 to at least 2 milliamperes), low-energy (2.2 to 4 MV) ion beam is generated and is utilized to produce clinically significant quantities of medical isotopes useful in applications such as positron emission tomography. For a preferred embodiment, a tandem accelerator is utilized. Negative ions generated by a high current negative-ion source are accelerated by an electrostatic accelerator in which the necessary high voltage is produced by a solid state power supply. The accelerated ions then enter a stripping cell which removes electrons from the ions, converting them into positive ions. The positive ions are then accelerated to a target which is preferably at ground potential. For a preferred embodiment, the solid state power supply utilized to develop the required voltages is a cascade rectifier power supply which is coaxial with the accelerator between the ion source and the stripper, and is designed to have a voltage gradient which substantially matches the maximum voltage gradient of the accelerator.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
BUCHANAN LINDA | 62 BEACH ROAD BROOKLINE MA 02416 | |
MANGANO JOSEPH A | 1530 NORTHKEY BOULEVARD ARLINGTON VA 22209 |
International Classification(s)

- 1987 Application Filing Year
- H05H Class
- 36 Applications Filed
- 0 Patents Issued To-Date
- 0 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Klinkowstein, Robert E | Winchester, MA | 17 | 547 |
# of filed Patents : 17 Total Citations : 547 | |||
Shefer, Ruth | Newton, MA | 9 | 244 |
# of filed Patents : 9 Total Citations : 244 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 23 Citation Count
- H05H Class
- 0 % this patent is cited more than
- 36 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
Date | Code | Event | Description |
---|---|---|---|
Nov 23, 2020 | LAPS | LAPSE FOR FAILURE TO PAY MAINTENANCE FEES | free format text: PATENT EXPIRED FOR FAILURE TO PAY MAINTENANCE FEES (ORIGINAL EVENT CODE: EXP.); ENTITY STATUS OF PATENT OWNER: MICROENTITY |
Nov 23, 2020 | STCH | INFORMATION ON STATUS: PATENT DISCONTINUATION | free format text: PATENT EXPIRED DUE TO NONPAYMENT OF MAINTENANCE FEES UNDER 37 CFR 1.362 |
Oct 18, 2020 | FP | LAPSED DUE TO FAILURE TO PAY MAINTENANCE FEE | Effective Date: Oct 18, 2020 |
Jun 08, 2020 | FEPP | FEE PAYMENT PROCEDURE | free format text: MAINTENANCE FEE REMINDER MAILED (ORIGINAL EVENT CODE: REM.); ENTITY STATUS OF PATENT OWNER: MICROENTITY |
Oct 18, 2016 | I | Issuance | |
Sep 28, 2016 | STCF | INFORMATION ON STATUS: PATENT GRANT | free format text: PATENTED CASE |
Aug 20, 2015 | P | Published | |
Feb 18, 2014 | F | Filing | |
Feb 18, 2014 | PD | Priority Date |

Matter Detail

Renewals Detail
