Head device of tape player
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 7, 1989
Grant Date -
N/A
app pub date -
Sep 23, 1987
filing date -
Oct 2, 1986
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

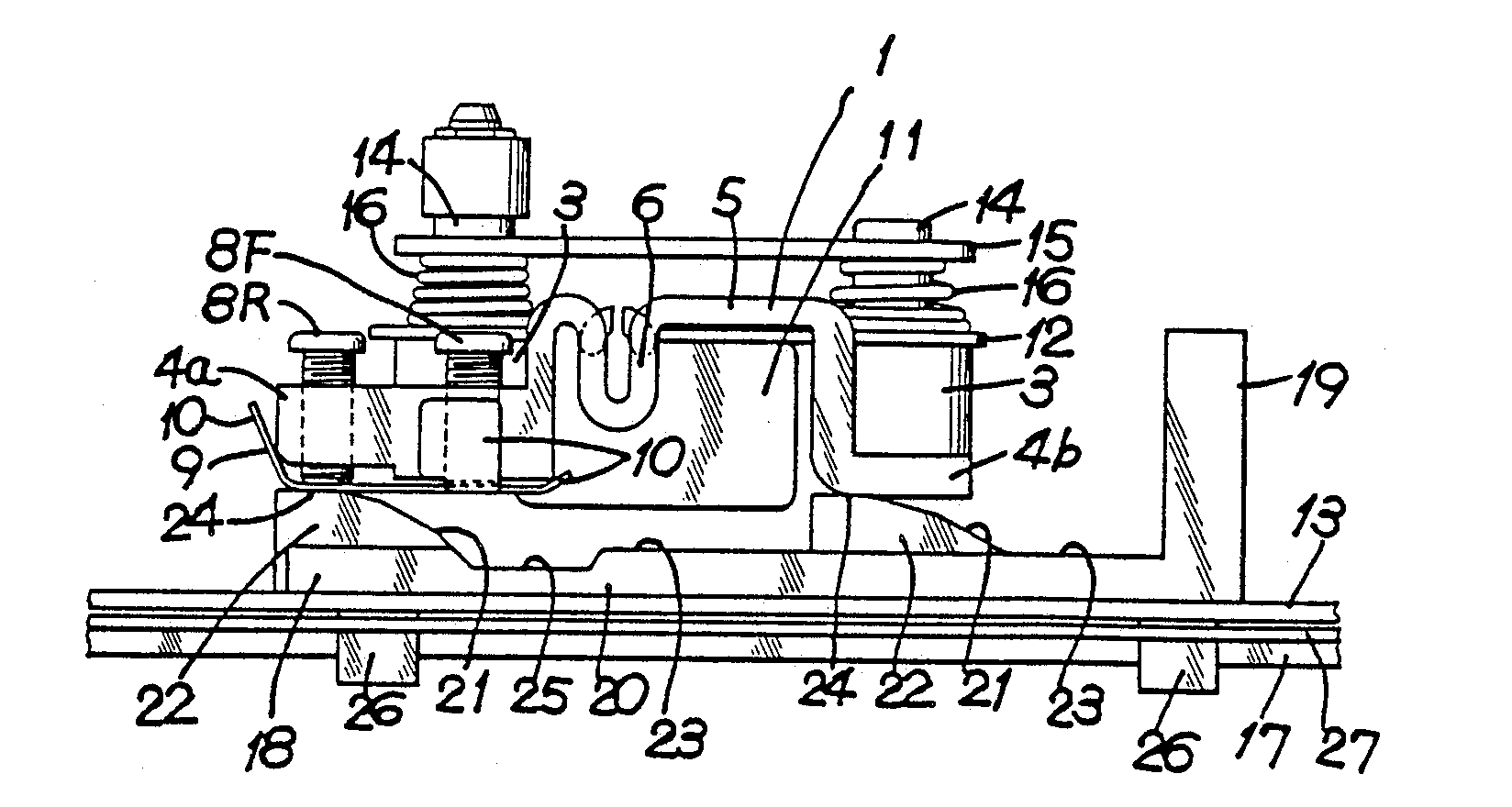

A head device of a tape player equipped with an autoreverse mechanism in which a head is shifted in the widthwise direction of a magnetic tape at the time of reverse mode so as to be shifted from the forward track to the reverse track. A head driving body having a forward supporting surface which supports at a forward position a head supporting body which is movably provided in the widthwise direction of the magnetic tape and having a reverse supporting surface which supports it at a reverse position is provided, and an adjusting screw which is in contact with the forward supporting surface of the head driving body and an adjusting screw which is in contact with the reverse supporting surface are provided in one of supporting body bearing portions of the head supporting body.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | U | JPS6358315 | Oct 02, 1986 |
| KR | Y1 | KR910000250 | Dec 24, 1986 |
| GB | B | GB2196778 | Sep 25, 1987 |
| HK | A | HK2992 | Jan 09, 1992 |
International Classification(s)
- 1987 Application Filing Year
- G11B Class
- 1386 Applications Filed
- 1 Patents Issued To-Date
- 0.08 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G11B Class
- 0 % this patent is cited more than
- 36 Age
